Kanomax S300 Handheld Gas Monitor
|
Item Number: S300
Manufacturer: Kanomax
Part Number: S300
|
|
Kanomax S300 Handheld Gas Monitor
*Sensor Not Included
Providing high level of functionality and monitoring capability, the Aeroqual Series can be used portably or fixed in position. The monitor is compatible with the full range of Aeroqual gas sensors. The remote sensor head adaptor kit is designed to allow the sensor head to be located up to 46 ft away from the main unit.
Features
- Interchangeable sensor heads capable of measuring more than 20 types of toxic gases
- Remote sensor capability
- Alarm and Analog output available
Applications
- IAQ Investigation
- Industrial Hygiene Quality Control
- Occupational Safety and Health Testing
- US GBC LEED certification

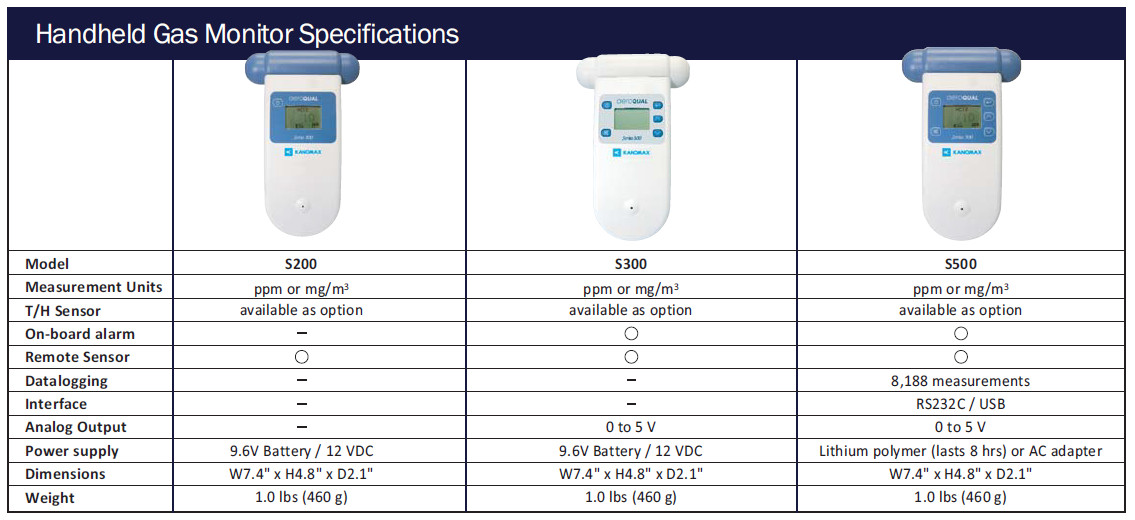

Technical Specifications
Measurments Units
|
ppm or mg/m3
|
Sensor Head
|
Removable and Replaceable
|
| Functions |
On-board alarm
Alarm status displayed
Alarm mute function
Low battery indication
Sensor condition status
Stand-by mode
Remote sensor capability
|
Alarm output
|
Transistor output, 150 mA max
Low alarm, High alarm & Control
|
| Analog output |
0 to 5 V
|
Power Supply
|
Battery or 12VDC, 800mA
|
Battery Type
|
Rechargeable battery pack
Ni-MH: 9.6V, 2100mA/hr, 5 hrs operation
|
Enclosure Rating
|
IP20 & NEMA 1 equivalent
|
Dimensions (with sensor head)
|
7.0 x 4.75 x 2.0 inches (195 x 122 x 54 mm)
|
Weight (with sensor & battery)
|
< 16 oz (460 g)
|
| Approvals |
Part 15 of FCC Rules
EN 50082-1: 1997
EN 50081-1: 1992 |
|
Kanomax Gasmaster Sensor Head are interchangeable sensor heads are available for over 30 gases, including formaldehyde and VOCs.
|
Kanomax 2710 is a simple, easy-to-use, low-cost monitor.
|
Kanomax 2750 has data logging functions and an RS232C interface for PC communications.
|
Kanomax S320 is supplied in an FRP enclosure and provides a high level of functionality & monitoring capability.
|
