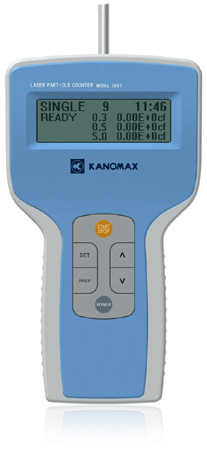

Kanomax Model 3887 3-channel Handheld Particle Counter

Kanomax Model 3887 3-channel Handheld Particle Counter

The 3887 handheld particle counter is the perfect economical tool for spot checks in particle sensitive areas. It's pre-programmed with ISO standards to certify cleanroom operations. The instrument can also be used to check the effectiveness of filters (such as HEPA) or as an initial investigation tool for IAQ studies, including mold remediation.

Features

Simultaneously measures and displays 3 particle sizes
Built-in flow sensor ensures highly accurate measurement
Stores up to 10,000 measurements

Applications

Cleanroom Verification / Monitoring
Clean Bench Verification
IAQ Investigation
Food Processing Investigation
Hospital Surgical Rooms
Filter Testing

Technical Specifications

Measuring Particle Size		0.3um, 0.5um, 5.0um
Flow Rate		0.1 cfm (2.83 l/min)
Light Source		Laser Diode
Calibration		PSL particles in air
Counting Efficiency		50% at 0.3 um; 100% for particles > 0.45 um (ISO 21501-4)
Zero Count		Less than 1 count / 5 minutes (ISO 21501-4)
Coincidental Loss		Less than 5% at 2,000,000 particles/cf
Sampling Time		1 sec - 99 min 59 sec (1 second increment)
Sampling Frequency		1 - 99 or continuous
Count Modes		Single, Repeat, Continuous, Calculation, Remote and ISO mode
Display		LCD: 20 letters, 4 lines
Interface		RS232C or RS485
Baud Rate		9600 bps
Buffer Memory		10,000 sample records
Power	AC Adapter	5VDC at 2.5A, 100 - 240VAC, 50 to 60 Hz
	Battery	4 x AA Batteries
	Operating Time	3 hrs with 1600mAh Batteries
Vacuum Source		Internal pump, flow controlled
Dimensions		W 4.3 x D 2.7 x H 7.7 inch (108 x 68 x 196 mm)
Weight		1.5 lbs (680 g)
Accessories		Isokinetic Probe, AC Adapter, Zero Filter, Battery & Charger Utility Software, Communication Cable
Options		Thermal Printer, Printer Cable, Carrying Case, Tripod

Kanomax 3887 Data Sheet
