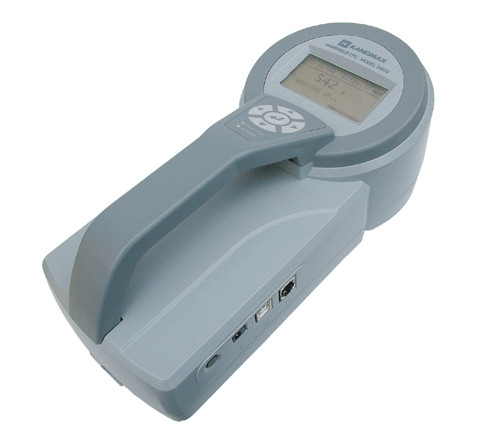

Kanomax Model 3800 Handheld Condensation Particle Counter
|
Item Number: 3800
Manufacturer: Kanomax
Part Number: 3800
Product Options
Accessory & Spare Part Options
* Whole number only
|
|
Kanomax Model 3800 Handheld Condensation Particle Counter
Features
- 15 nm sensitivity
- Concentration range of 0 to 100,000 particles/cm3
- Programmable data-logging capabilities
- Power Supply can be selected from alkaline/Ni-MH battery or AC adapter
- Simple to download the data to your computer via USB
Applications
- Indoor Air Quality Investigation
- Aerosol Research
- Filter Test
- Environmental Monitoring for Electronics, Food Processing, Pharmaceutical etc.
Technical Specifications
|
Measuring Particle Size
|
0.015 to > 1um |
|
Concentration Range
|
0 to 100,000 particles/cm3 |
|
Counting Efficiency
|
50nm: 100+/-20% (15nm: More than 50%) |
|
Zero Count
|
Less than 1 particle/ cm3 |
|
Flow Rate
|
Aerosol Flow: 100cc/min
Total Flow: 700cc/min |
|
Alcohol Supply
|
Type
|
100% reagent-grade isopropyl alcohol |
|
Hours per Fill
|
Approx. 5 hours at 23ºC (73ºF) |
|
Absolute Pressure Sensor
|
150 to 1150 hPa |
|
Mode of Measurements
|
Repeat / Program / Counter |
|
Display
|
Built-in LCD ( 128 x 64 dots) |
|
Interface
|
USB |
|
Buffer Memory
|
Max. 10,000 data |
|
Power Supply
|
Type
|
6 pieces of AA-size Alkaline / Ni-MH battery
AC adapter (Input 100 – 240V) |
|
Operating hours
|
Approx. 5 hours ( By Alkaline batteries )
Approx. 8 hours ( By Ni-MH batteries ) |
|
Environmental Operation Condition
|
Ambient temperature range: 10 to 35ºC ( 50 to 95ºF)
|
|
Dimensions
|
4.7"(W) x 11"(H) x 5.1"(D) (120 x 280 x 130mm) |
|
Weight
|
Approx. 3.3lbs (1.5kg) ( without batteries ) |
|
Standard Accessories
|
AC adapter, Zero filter , Alkaline battery x 6, Operation manual
Software (for Windows), PC Communication Cable, Carrying Case |
|
Options
|
Ni-MH battery(1.2V-2500mA) x 6, Charger x 2, Printer,
Printer cable, Sampling Probe |
|
