INOR SR360 Loop Alarm Trip Amplifier

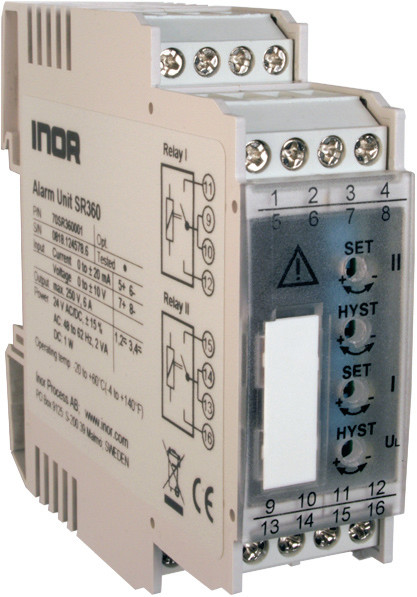

INOR SR360 Loop Alarm Unit

The Inor SR360 is designed for monitoring DC current and voltage signals. The SR360 provides 2 output relays with individually adjustable trip functions. LED’s in the front indicate alarm status and active power is being applied to the unit.  The SR360 trip amplifier is the ideal solution for adding alarm capabilities to 4-20mA process signal loops. The SR360 requires either 25 V AC or DC to operate.

Features

• Current and voltage input
• Two relay outputs with independent switch functions
• Monostable relays for safe tripping at power failure
• SPDT relays with 6 A switch capacity
• High configuration flexibility with DIP switches
• Trip levels and hysteresis adjustable from the front
• Three front LED’s for trip indication and power supply monitoring
• 4 kV isolation between input, output and power supply
• Protective Separation acc. to EN 50178
• Universal 24 V AC and DC power supply
• DIN-rail mounting

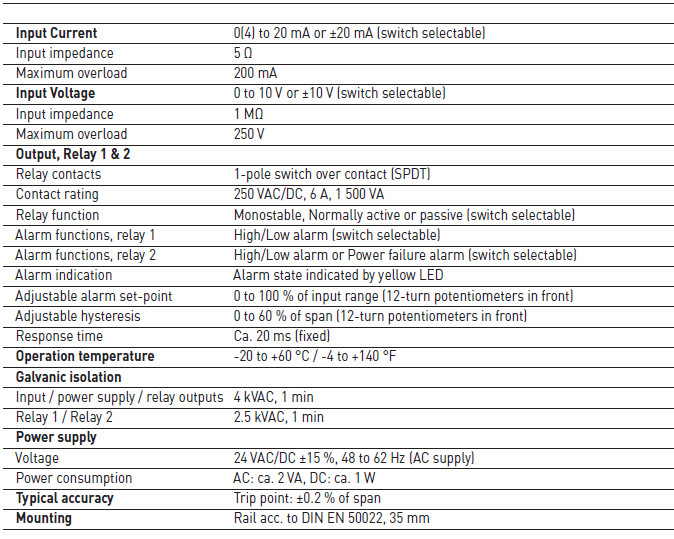

INOR SR360 Data Sheet
