INOR IPAQ-L Universal Programmable 2-Wire Transmitters

INOR IPAQ-L Universal Programmable 2-Wire Transmitters

Features

• Fully universal, linearized and isolated
• Accepts RTD, T/C, mV and Ohms
• Sensor error and system (sensor/transmitter) error correction for  highest total accuracy
• Full access to all features while in operation
• NAMUR compliant
• Consistent sensor break function
• Simplified loop check-up with calibration output
• Test output without breaking the loop (IPAQ-L)
• IPRO, easy-to-use Windows configuration software

Functions

• Input for RTDs, T/Cs, mV and resistance
  Reduced inventory costs.
  Simplified plant engineering.
• Input for mA (separate version of IPAQ-L)
  Active 2-wire isolator / load amplifier.
  Only 10 Ohm input impedance.
• True on-line communication
  Full access to all features while in operation.
• Sensor diagnostics
  Selectable sensor break action.
• Simplified loop check-up
  The transmitter works as an accurate current generator.
• On-screen indications and line recording
  Valuable tools for temporary measurements.

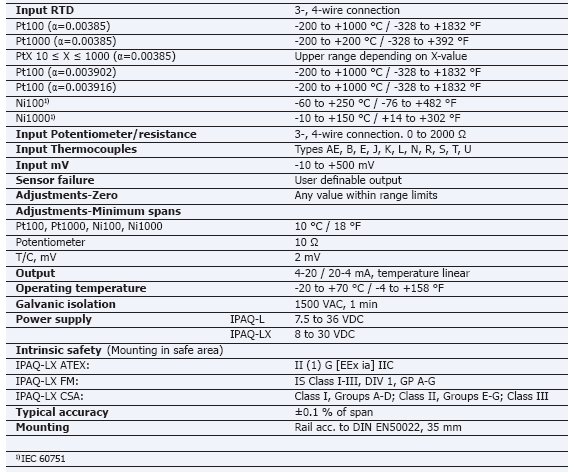

Technical Specifications

INOR IPAQ-L:  Rail mount, multifunction, on-line PC-config., isolation 1500 VAC, fixed connectors

INOR IPAQ-LX (FM): Rail mount, multifunction, on-line PC-config., isolation 1500 VAC, FM/CSA Approval

INOR IPAQ-LX (ATEX):  Rail mount, multifunction, on-line PC-config., Demko 03 ATEX 134461X, Ex II (1)G [EEx ia] IIC

Input Connections:

Output Connections:                 Dimensions:

Output Load Diagram:

INOR Configuration Kit (Complete Package, except HART modem)

• INOR USB Interface
• Adapter Cables

• Software on Flashdrive

• Works with Windows 2000 through 8.1


Configuration

• PC Programmable

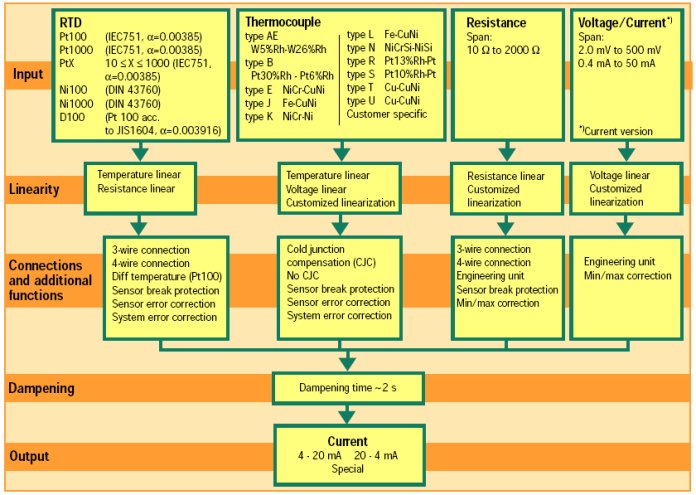

IPAQ-L/IPAQ-LX Configuration Scheme:
