INOR IPAQ-L(mA) 2-Wire Programmable Loop Powered Signal Isolator

INOR IPAQ-L(mA) 2-Wire Programmable Loop Powered Isolation Transmitter (Current Only)

IPAQ-L(mA) is an active isolation transmitter for mA input signals with a 4-20 mA output in a 2-wire connection. It is suitable for direct connection to the input modules of a control system.

Features

• Loop Powered
• Input: mA signal
• Programmable measuring range within -1 to +50 mA
• Output: 4-20 mA in 2-wire connection
• 1500 VAC isolation input/output
• Low input impedance
• Full access to all features while in operation
• Simplified loop check-up with calibration output
• Test output without breaking the loop
• IPRO, easy-to-use Windows configuration software

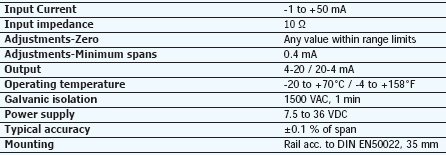

Technical Specifications

INOR IPAQ-L(mA) Input:                   INOR IPAQ-L(mA) Output:


INOR IPAQ-L(mA) Output Load Diagram:

INOR IPAQ-L (mA) Dimensions:

INOR Configuration Kit (Complete Package, except HART modem):

• INOR USB Interface
• Adapter Cables

• Software on Flashdrive

• Works with Windows 2000 through 8.1


Configuration

• PC Programmable
