GW Instek SPS-3610 Switching DC Power Supply
|
Item Number: SPS-3610
Manufacturer: GW Instek
Part Number: SPS-3610
Product Options
GW Instek SPS-3610 Calibration Options
* Whole number only
|
|
GW Instek SPS-3610 Switching DC Power Supply
The SPS-Series are single output, 360W, switching DC power supply. OVP protects the SPS-Series and their load from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds extra level of precision by compensating cable losses between loads. Turning the output On/Off from external device is available through remote control terminals. The SPS-Series are an ideal solution for power-efficient bench-top or portable applications requiring high regulation.
Features
- Dual Measurement Display
- 0.01 % High Regulation
- Constant Voltage and Constant Current Operation
- High Efficiency
- High Power Density
- Over Voltage Protection
- Remote Output ON/OFF Control

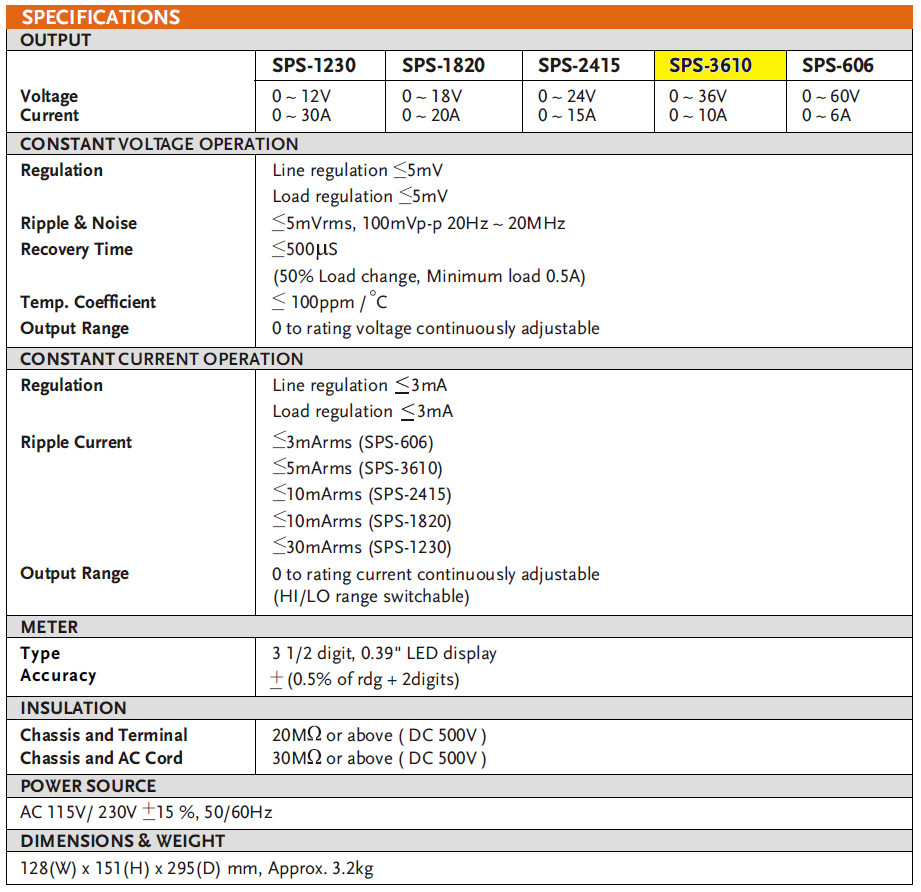

Technical Specifications
|
GW Instek SPS-2415 output is 24V(Voltage) and 15A(Current).
|
GW Instek SPS-606 output is 60V(Voltage) and 6A(Current).
|
GW Instek SPS-1820 output is 18V(Voltage) and 20A(Current).
|
GW Instek SPS-1230 output is 12V(Voltage) and 30A(Current).
|
