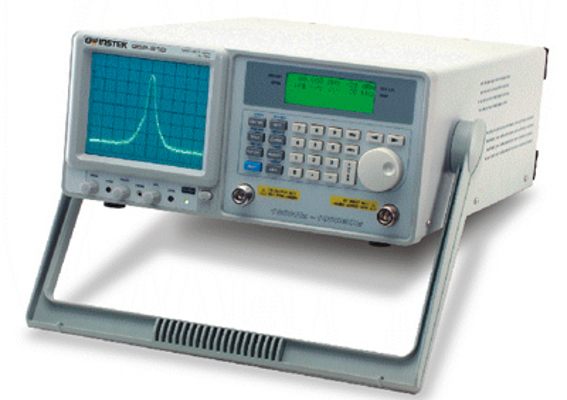

GW Instek GSP-810 Spectrum Analyzer
|
Item Number: GSP-810
Manufacturer: GW Instek
Part Number: GSP-810
|
|
GW Instek GSP-810 Spectrum Analyzer
The GSP-810 Spectrum Analyzer is a digitally synthesized, easy-to-use RF measurement instrument with a frequency range up to 1GHz. It uses a state-of-art design with a phased-locked RF system that combines measurement quality and performance with an affordable price. The GSP-810 is also designed for rugged use with 1-watt input protection. With a compact size and feature packed functions, the GSP-810 is an affordable, expandable, and high quality instrument for the most demanding needs.
Features
- Frequency Range: 150kHz ~1GHz
- Fully Digital Phase Locked Loop Technique Design
- High Frequency Stability:±10ppm
- RBW : 3K, 30k, 220k, 4MHz
- High Input Protection Level : +30dBm,±25VDC
- Reference Level Range : -30dBm~ +20dBm
- Two Markers for Absolute and Relative Measurement
- Support standard RS-232C Interface to connect with PC
- Options: Tracking Generator, Power Meter, Remote Control Software

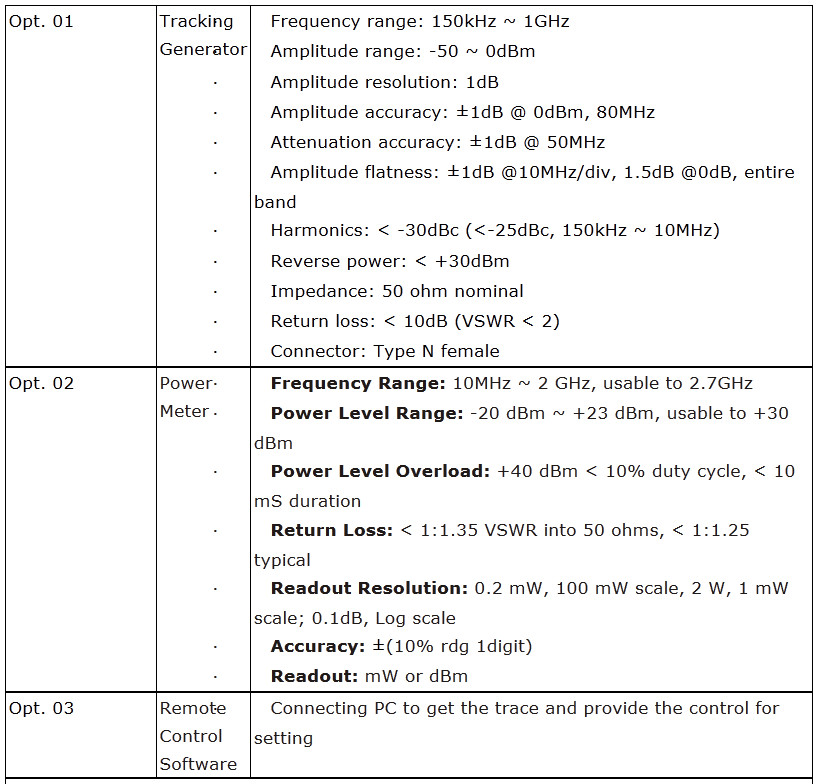

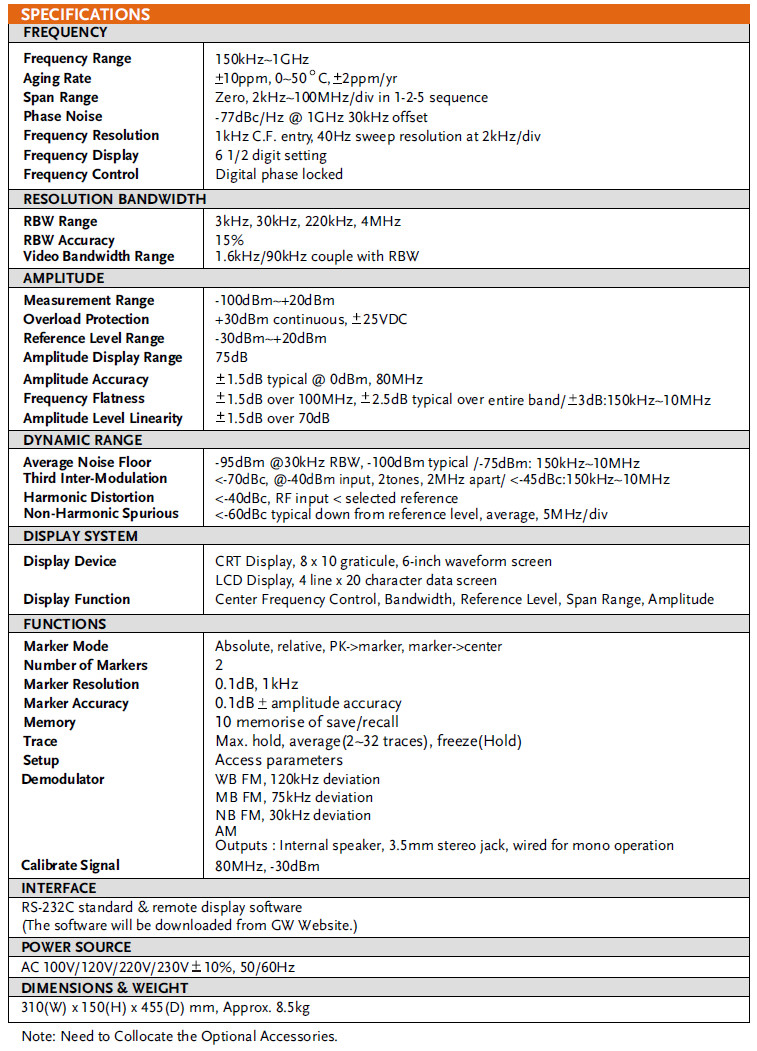

Technical Specifications GSP-810 1GHz Spectrum Analyzer Options

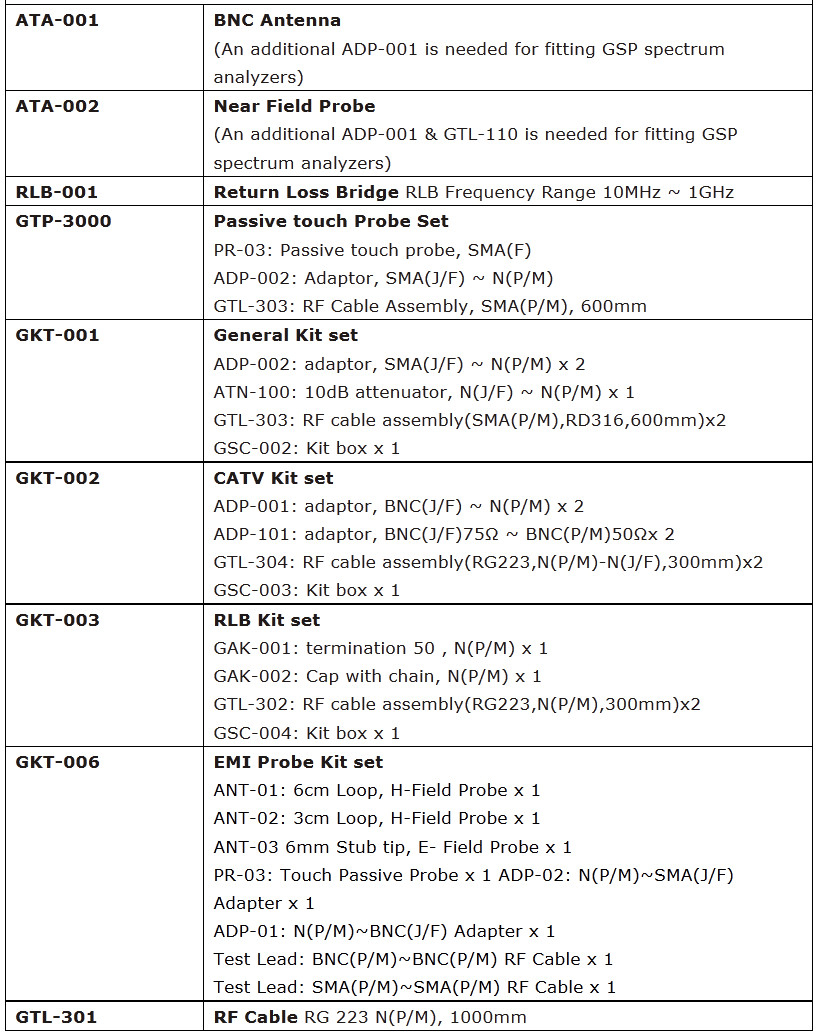

OPTIONAL ACCESSORIES
|
