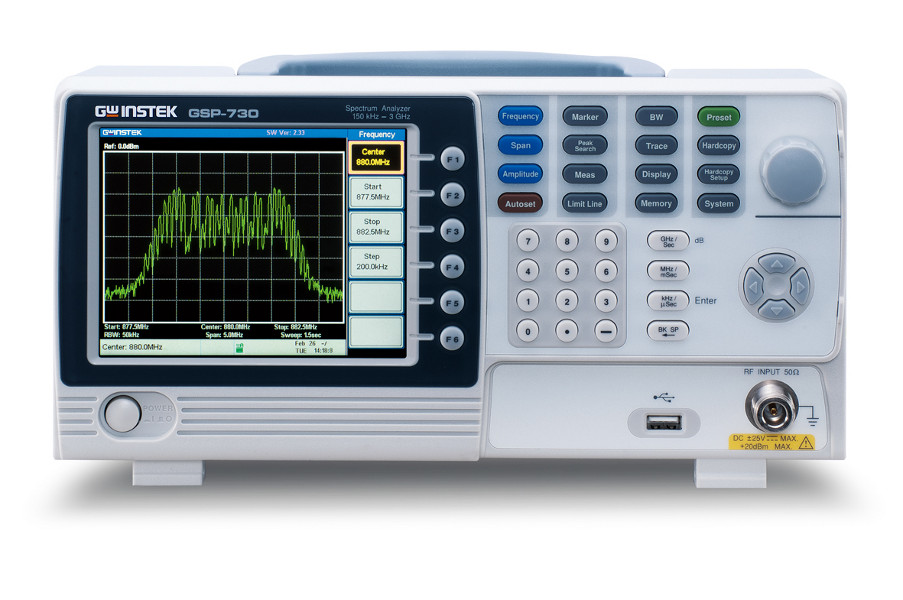

GW Instek GSP-730 3GHz Spectrum Analyzer

Our Price: $999.00

Item Number: GSP-730

Manufacturer: GW Instek

Part Number: GSP-730

Product Options

Accessory Options

GRF-1300: RF and Communication System Trainer (+ $399.00)

Quantity:

Email this page to a friend

GW Instek GSP-730 3GHz Spectrum Analyzer

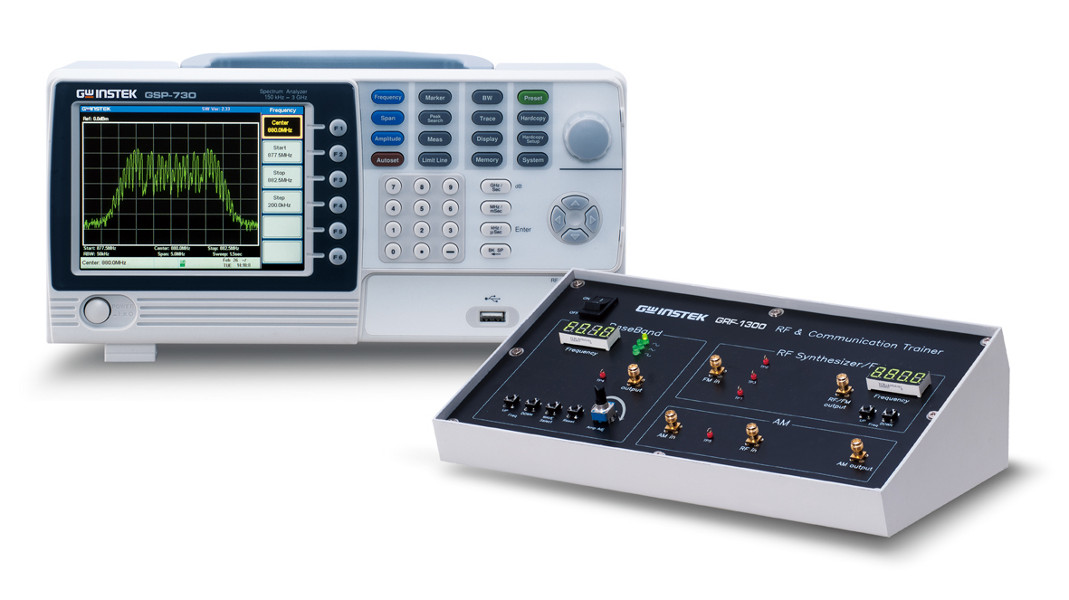

The GSP-730 Spectrum Analyzer is designed to satisfy the requests of RF Communication educations. The GRF-1300 training kit has a special position in the field as an economic turn-key solution for 3GHz RF Communication Experiment courses. While being given a lecture, the GSP-730 Spectrum Analyzer, GRF-1300 Trainer and a PC are connected and ongoing experiments will be performing. Combining the GSP-730 and GRF-1300 is a great training system for RF communication and telecommunication classes in the universities, colleges, vocational schools, training centers in military, and private companies.

Features

Frequency Range : 150kHz ~ 3GHz
Autoset Function
Noise Floor: ≦-100dBm
RBW Range : 30kHz, 100kHz, 300kHz, 1MHz
ACPR/CHPW/OCBW Measurement
3 Traces in Different Colors
Split Window Function
Limit Line Function
Remote Control Software
Presentation Material for Training Courses
Support Interface : USB Device/Host, RS-232C
5.6” TFT LCD with VGA Output

Technical Specifications

Frequency
Frequency Range
	Setting Range	150kHz to 3GHz
Center Frequency
	Setting Resolution	0.1MHz
	Accuracy	within ±50kHz (frequency span : 0.3GHz to 2.6GHz, 20 ±5°C)
Frequency Span
	Setting range	1MHz to 3GHz
	Accuracy	within ±3% (frequency span : 0.3GHz to 2.6GHz, 20 ±5°C)
Resolution Bandwidth
	Setting Range	30KHz, 100KHz, 300KHz,1MHz,
SSB Phase Noise
	-85dBc / Hz (typical, 500kHz offset, RBW : 30kHz, Sweep time: 1.5s, Span:1MHz@1GHz)
Inherent Spurious Response
	less than -45dBc @ -40dBm Ref. Level (typical less than -50dBc)

Amplitude
Reference Level
	Input Range	+20 to -40dBm
	Unit	dBm, dBV, dBµV
Average Noise Level
	≤ -100dBm (typical, center frequency : 1GHz RBW : 30kHz)
Frequency Characteristic
	Accuracy : Within ±2dB (1GHz);SPAN:5MHz; Ref. Level 0dBm, input signal -10dBm;
	within ±3.0dB @300MHz~2.6GHz, within ±6.0dB @ 80~300MHz, 2.6~3GHz
Input
	Input Impedance	50ohm
	Input VSWR	less than 2.0@input att ≧10dB
	Input damage level	+30dBm (CW average power), 25VDC
	Input connector	N connector

Sweep
Sweep Time
	Setting Range	300ms to 8.4s, auto (not adjustable)
	Accuracy	within ±2% ( frequency span : full span)

General
Communication
	Display	640*480 RGB color LCD
Interface
	RS-232C	Sub-D female-D 9 pins
	USB Connector	USB Host/Device full speed supported
VGA Output
		Sub-D female 15 pins
Power Source
		AC 100~240V, 50/60Hz

Other
	Operating Temperature	5 to 45°C (Guaranteed at 25 ±5°C, without soft carrying case)
	Operating Humidity	Less than 45°C / 90%RH
	Storage Temperature	-20 to 60°C, less than 60°C / 70%RH
	Dimensions	296 (L) × 153 (W) × 105 (H) mm
	Weight	Approx. 2.2kg

GW Instek GSP-730 Data Sheet
