GW Instek GOS-635G Analog Oscilloscope
|
Item Number: GOS-635G
Manufacturer: GW Instek
Part Number: GOS-635G
Product Options
GW Instek GOS-635G Calibration Option
* Whole number only
|
|

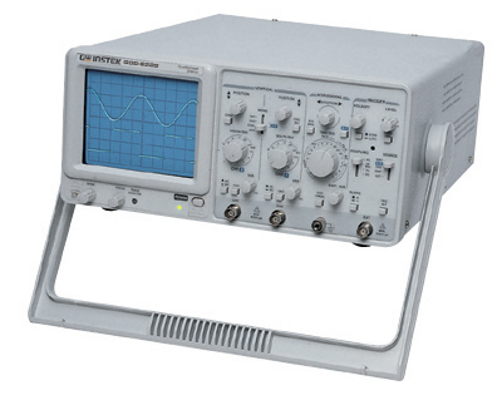

GW Instek GOS-635G Analog Oscilloscope
The GOS-635G and GOS-622G are general purpose analog oscilloscopes with 35MHz and 20MHz bandwidth, respectively. These products are designed for a wide range of applications ranging from product designs or assembly lines to EE laboratories or class experiments. Featuring a low vertical sensitivity at 1mV/div and versatile triggering, the GOS-635G and GOS-622G can reliably capture small signals. The GOS-635G/622G is the highest performance/price solution in the Test & Measurement market.
Features
- 35MHz Bandwidth, Dual Channel (GOS-635G)
- 20MHz Bandwidth, Dual Channel (GOS-622G)
- High Sensitivity 1mV/div
- TV Synchronization
- Z-Axis Input
- ALT Triggering Function
- Hold Off Function (GOS-635G,GOS-622G)
- CH1 Output

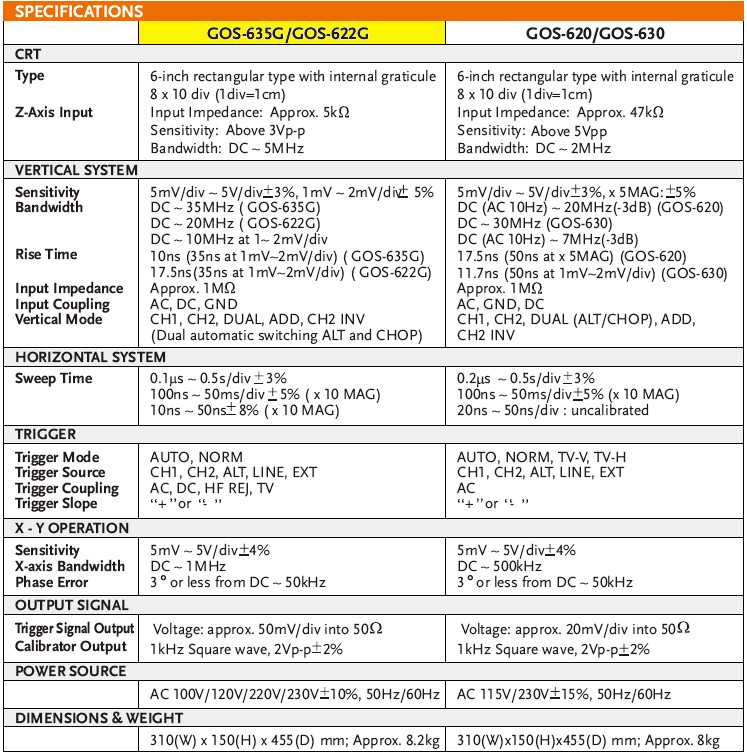

Technical Specifications
|
GW Instek GOS-620 oscilloscope is an economic analog oscilloscope and the bandwidth is DC(AC 10Hz)~20MHz(-3dB).
|
GW Instek GOS-622G is general purpose analog oscilloscopes with 20MHz bandwidth, respectively.
|
