GW Instek GOS-620 Analog Oscilloscope
|
Item Number: GOS-620
Manufacturer: GW Instek
Part Number: GOS-620
Product Options
GW Instek GOS-620 Calibration Option
* Whole number only
|
|

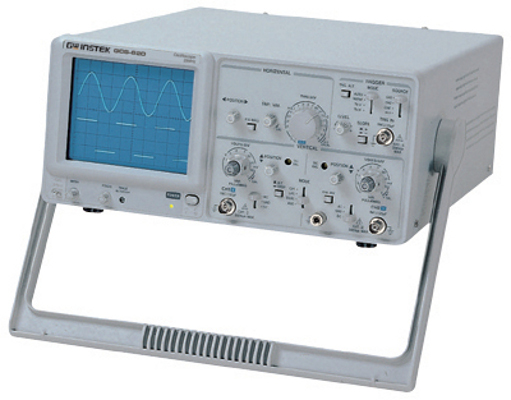

GW Instek GOS-620 Analog Oscilloscope
The 20MHz GOS-620 oscilloscope is an economic analog oscilloscope with 5mV/div ~ 5V/div vertical sensitivity and 0.2us/div ~ 0.5s/div horizontal sweep speed. Its outstanding mainstream specifications, reliable industrial design as well as the high build quality make it an ideal choice when updating equipment for education, training, manufacturing or service and maintenance.
Features
- 30/20MHz Bandwidth, Dual Channel
- High Sensitivity 1mV/div
- TV Synchronization
- Z-Axis Input
- ALT Triggering Function
- CH1 Output

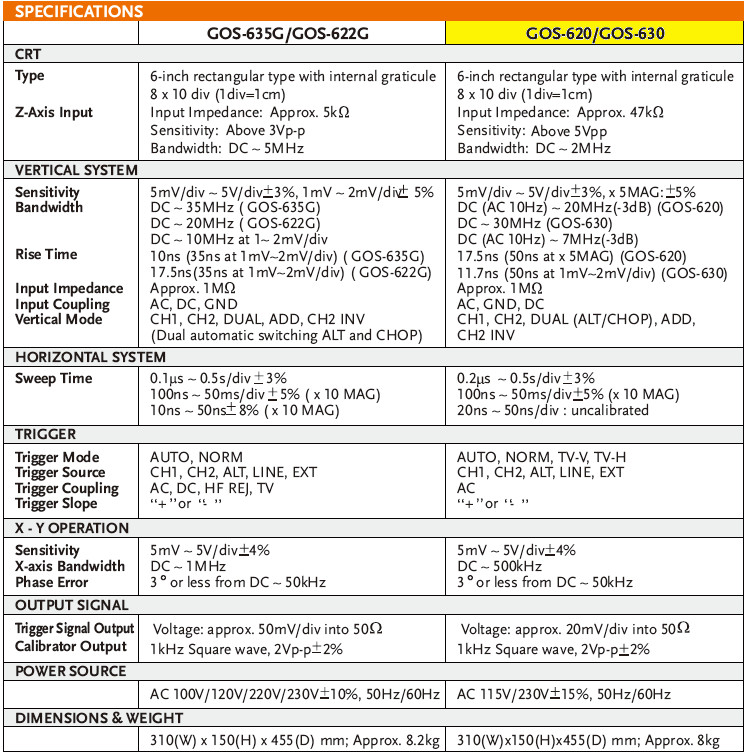

Technical Specifications
|
GW Instek GOS-622G is general purpose analog oscilloscopes with 20MHz bandwidth, respectively.
|
GW Instek GOS-635G is general purpose analog oscilloscopes with 35MHz bandwidth, respectively.
|
