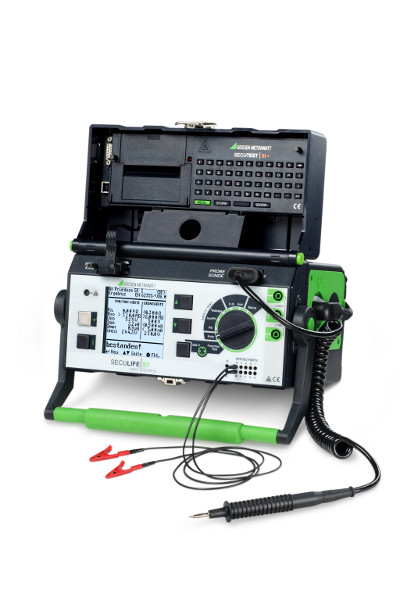

GMC Instruments SecuLife ST HV Medical Tester

GMC Instruments SecuLife ST HV Medical Tester

The SecuLife ST HV is a portable, high voltage, multifunctional test instrument that is ideally suited for performing and documenting measurements on medical electrical devices. It allows for precision testing of portable medical electrical devices, and can also be used for large devices, such as X-ray equipment and MRI scanners. The test Instrument includes test sequences per IEC 62353: Medical electrical equipment - Recurrent test and test after repair of medical electrical equipment, IEC 60601: Medical Electrical Equipment, IEC 61010: Safety requirements for electrical equipment for measurement, control, and laboratory use, IEC 60335: Safety of electrical household appliances, and IEC 60950: Safety of information technology equipment.

Features

High-Voltage Test with 6KVdc
Protective conductor resistance with 200mA and 10A test current
Insulation resistance
Earth leakage current
Contact current (device leakage current)
Patient leakage current, AC and DC
Patient auxiliary current
Equivalent leakage current procedure
Differential current measurement
Up to 10 application parts can be connected and individually assigned to groups
Internal memory for 125 tests
PC software

Applications

Electrical safety testing:
• Medical electrical devices per IEC 62353 and IEC 60601 2nd and 3rd edition
• Routine tests, e.g. per IEC 61010, IEC 60950, IEC 60335

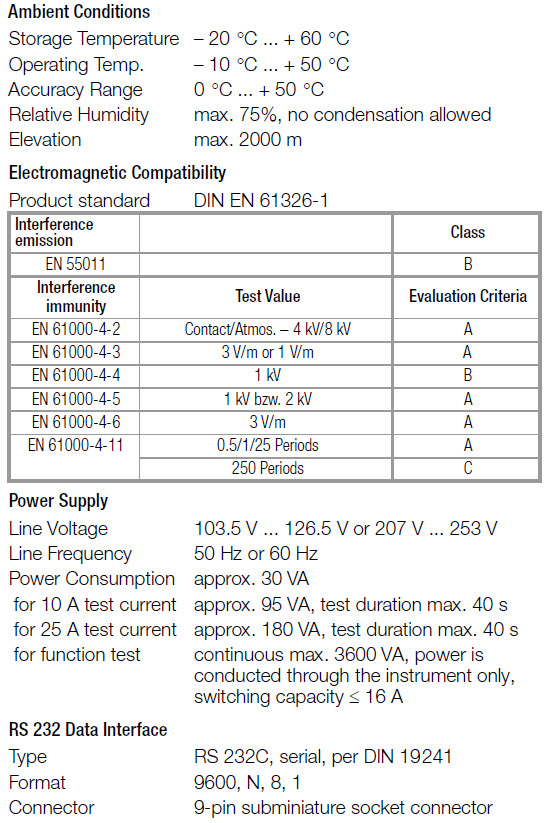

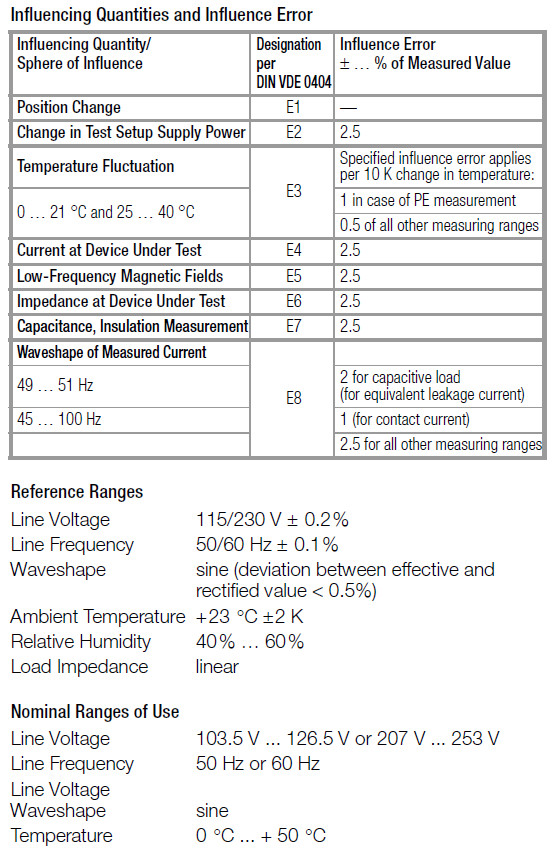

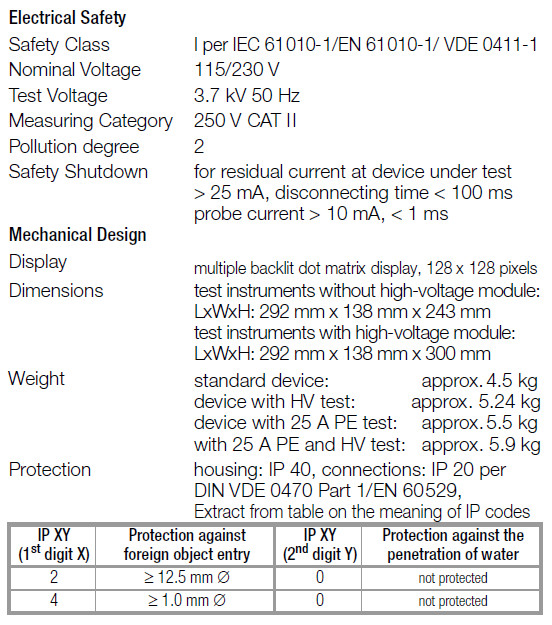

Technical Specifications

Includes

SecuLife ST HV
Probe cable with test probe
Detachable alligator clip for test probes
Detachable quick-connect terminals
Conductor patient connection cable
Qty (10) alligator clips
Calibration Certificate per DAkkS (Accredited per ISO/IEC 17025)
Operating instructions
Carrying strap

GMC Instruments SecuLife ST HV Data Sheet
