GE Druck UPS III Loop Calibrator
|
Item Number: UPS-III
Manufacturer: Druck (GE)
Part Number: UPS-III
Product Options
* denotes required field
Protective Over Boot Option*
* Whole number only
|
|

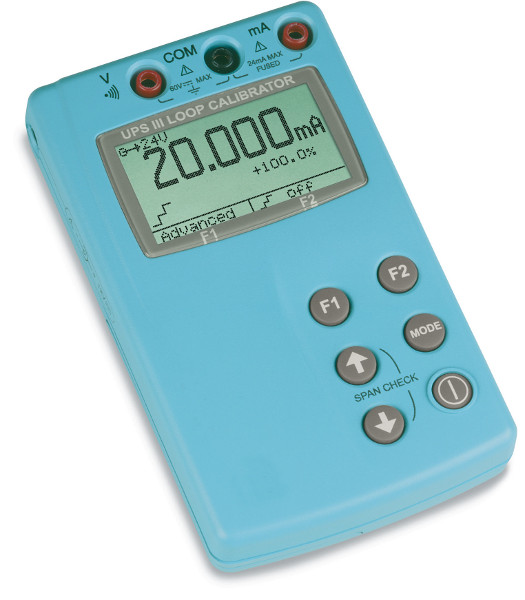

GE Druck UPS III Loop Calibrator
The UPS III is a rugged and extremely compact Loop Calibrator. Measuring 3" x 5" and weighing just 9.7 ounces, it fits comfortably in a shirt pocket. It is an essential tool for loop testing, instrument maintenance and valve set-up, with an easy to read display and simple to use time saving features.
Features:
- Measure or Source 0 to 24 mA
- Accuracy 0.01% of reading
- Dual mA and % readout, linear or flow

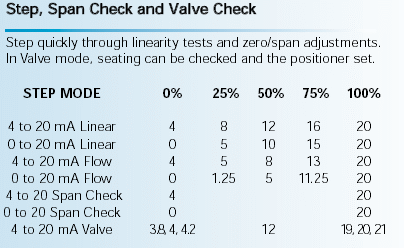

- Step, Span Check, Valve Check, Ramp
- 60 V DC measurement and continuity
- HART® compatible with internal loop resistor
- Adjustable display contrast
- Adjustable resolution
- Uses industry standard AA batteries
- Battery voltage and battery low indicator
- Information screen reports serial number, software version and calibration date
- Primary reading in mA or %
- Auto power off (enable or disable)
- Pin protected closed case calibration
- Optional protective rubber boot with bench stand, hanging loop and quick connect belt clip
- Optional AC line adapter
- Measure/source mode selection
- Recessed On/Off key
Technical Specifications:
|
