GE Druck UPS III IS Intrinsically Safe Loop Calibrator
|
Item Number: UPS-III-IS
Manufacturer: Druck (GE)
Part Number: UPS-III-IS
* Whole number only
|
|

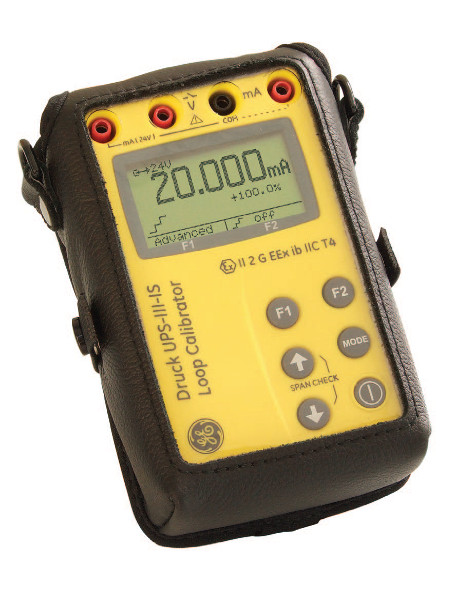

GE Druck UPS III IS Intrinsically Safe Loop Calibrator
The UPS-III-IS is an intrinsically safe loop calibrator, with its size making it rugged and extremely compact. It measures 3.5 in x 5.5 in x 1.7 in (90 mm x 140 mm x 42 mm) and weighs just 16.2 oz (460 g). It is an essential tool for loop testing, instrument maintenance and valve set-up, with an easy-to-read display and simple-to-use time saving features.
Features
- Adjustable resolution & display contras
- Uses industry standard AA batteries
- Battery voltage and battery low indicator

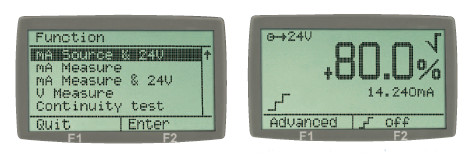

- Information screen reports serial number, software version and calibration date
- Primary reading in mA or %
- Auto power off (enable or disable)
- Pin protected, closed case calibration
- Leather case with carry strap. (Note: the UPS III IS must be used in the case for hazardous area use.)
Technical Specifications
Electrical
Power Supply
4 x 1.5 V AA-size alkaline batteries (see certificate for
type)
Battery Life
60 hours in measure mode, 14 hours at 12 mA
Auto Power Down
30 minutes after last key press
Low Battery Warning
Battery symbol displayed
Open Loop
Flashes “open loop”
Loop Resistance High
Flashes “check loop S”
Out of Range
Displays (over)
HART Resistor
220 S menu selectable loop resistor
Environmental
Calibration Reference
72°F (22°C) ±9°F(±5°C)/RH 45% ±15%
Operating Temperature
14°F to 104°F (-10°C to 40°C)
Relative Humidity
0% to 90% non-condensing
Conformity
EN 61010, EN 61326:1997 + A1 (1998) + A2 (2001) + A3
(2003), CE marked
Certified for use in hazardous areas
ATEX: II 2G Ex ib IIC T4 (-10°C<+40°C)
Certificate number BASEEFA 06ATEX0224X
IEC: Ex ib IIC T4 (-10°C<+40°C)
Certificate number IECEx BAS 06.0053X
Physical
Housing Material
High impact ABS
Dimensions (w x h x d)
3.5 in x 5.5 in x 1.7 in (90 mm x 140 mm x 42 mm)
Weight
16.2 oz (460 g) including batteries and leather case
Display
Graphic LCD, 1.2 in x 2.1 in (31 mm x 54 mm)
Electrical Terminals
Gold plated, 4 mm sockets
|
GE Druck UPS-II Loop Calibrator is an advanced hand held process calibration tool. The UPS-II can power (24 VDC) and read 2-wire transmitters to perform field calibrations.
|
GE Druck UPS III Loop Calibrator is a rugged and extremely compact Loop Calibrator. Measuring 3" x 5" and weighing just 9.7 ounces, it fits comfortably in a shirt pocket.
|
