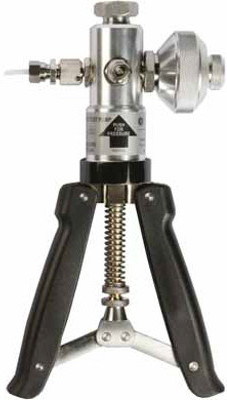

GE Druck PV211 Pneumatic Pressure and Vacuum Pump
|
Item Number: PV211
Configuration: -PV211
Manufacturer: Druck (GE)
Part Number: PV211
* Whole number only
|
|
GE Druck PV211 Pneumatic Pressure and Vacuum Pump

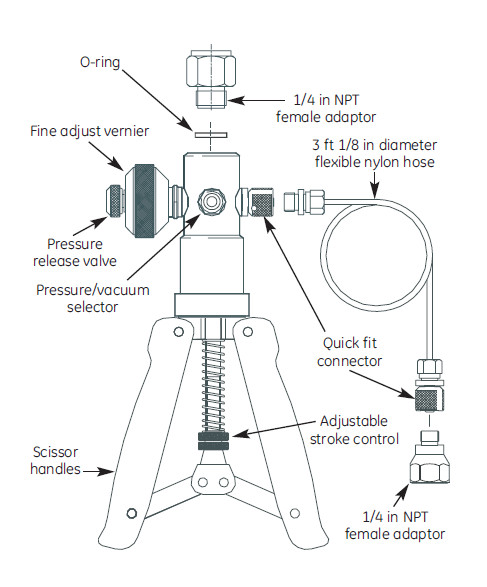

The PV 211 Pneumatic Hand Pump is a lightweight, high quality combined pressure and vacuum hand pump. It has been designed to provide maximum pneumatic pressures efficiently and effortlessly. The PV 211 can be used as a portable Pressure Comparator in conjunction with various pressure indicating devices. This precision unit includes an adjustable over pressure protection system as standard.
Features
- Dual source of pneumatic pressure and vacuum
- Pneumatic pressure in excess 600 psi (40 bar)
- Generates vacuum to 28.5 inHg
- Adjustable stroke Built-in fine adjust vernier
- Needle valve for controlled pressure release
Applications
Technical Specifications
| Pressure Range: |
0 to 600 psi
|
| Vacuum Range: |
0 to 28.5 inHg |
| Materials : |
Bright nickel plated brass, anodized aluminum, phosphor bronze (springs), Nitrile, nylon
|
| Dimensions (l x w x d): |
8.5 in x 4 in x 2.5 in |
Order Information
PV211 |
Hand pump, 3 ft 1/8 in diameter nylon hose with 1/4 in NPT female |
PV211-HA |
Hand pump in carrying case, 3 ft 1/8 in diameter flexible nylon hose, adapters and accessories |
|
