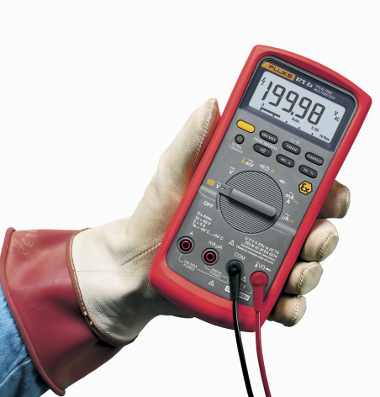

Fluke 87V Ex Intrinsically Safe True RMS Multimeter

Fluke 87-V Ex Intrinsically Safe True RMS Multimeter

The Fluke 87-5 Ex is unlike most other ATEX-certified tools, it can be used both inside and outside the hazardous zone (ATEX Zones 1 & 2) without compromising performance or compliance. So there's no need to carry different tools for use inside or outside the hazardous zones. It also has a built-in thermometer with TC probe, further reducing technicians' tool counts.

I.S. standards apply to all equipment that can create one or more of a range of defined potential explosion sources such as electrical sparks, static electricity and mechanical friction. I.S. tools are designed for industries such as petro-chemical, grain processing, oil platforms and refineries, pharmaceutical and pipelines as well as other hazardous environments

Features:

• Unique function for accurate voltage and frequency measurements on variable speed motor drives (VSD's) • Atex 137 safety rating for use in zone 1 and zone 2
• CAT IV 600 V safety approval for non-Ex industrial environments
• Large display with bright, two-level backlight makes the 87V-Ex very easy to read
• Built-in thermometer (probe included)
• True-rms ac voltage and current for accurate measurements on non-linear signals
• 4-1/2 digit mode for precise measurements (20,000 counts)
• Measure up to 1000 V and 10 A (ac/dc)
• Frequency to 200 kHz and % duty cycle
• Resistance, continuity and diode test
• 10,000 uF capacitance range for components and motor caps
• Min/Max-Average and Peak capture to record transients and variations automatically
• Relative mode to remove test lead interference on resistance measurements
• Auto and manual ranging for maximum flexibility
• Analog bargraph for fast changing or unstable signals
• Input Alert provides audible warning against wrong use of input jacks

Safety ratings:

• ATEX safety rating: II 2 G EEx ia IIC T4

• Electrical safety rating: EN61010-1 CAT IV 600 V and CAT III, 1000 V

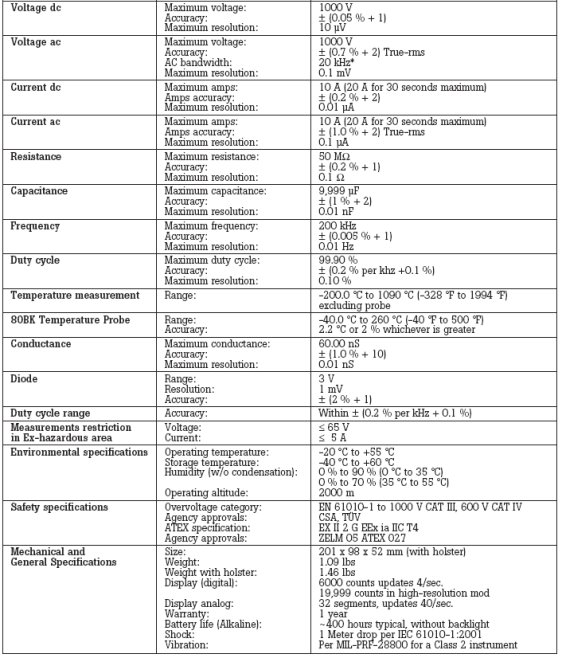

Specifications:
