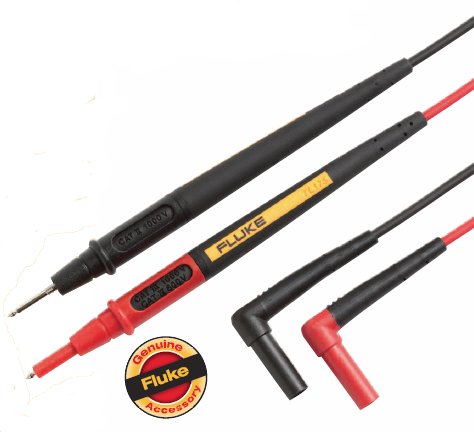

Fluke TL175 TwistGuard Test Leads, Fluke TL175E

Fluke TL-175 TwistGuard Test Leads

     The new Fluke TL175 TwistGuard™ Test Leads are the only test leads in the world with adjustable length test tips for use in different measurement environments.

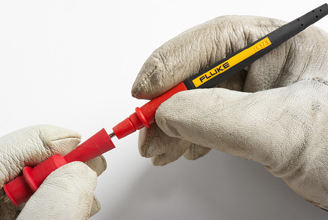

• TwistGuard™ adjustable tips enhance safety and versatility length
• WearGuard™ indicator shows damage to leads by exposing different lead color
• Patented TwistGuard™ extendable tip shroud meets the highest electrical safety requirements to reduce tip exposure while providing the versatility needed for most measurements
• Double insulated silicone leads. TL175 test leads withstand high temperatures and remain flexible in cold temperatures.
• Extra-heavy duty strain relief on both probe-end and plug-end, tested beyond 30,000 bends without failure.
• Universal input plugs are compatible with all instruments that accept standard 4 mm shrouded banana plugs
• Ratings: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., Pollution Degree 2
• TL175E also available. Includes removable 4 mm lantern tips that thread onto the lead tip
• Probes always show correct category rating for tip being used
• Environmental ratings: -20 °C to 55 °C (-4 °F to 131 °F), altitude: 2000 m (6,562 ft)
• Conforms to EN61010-031
• One-year warranty

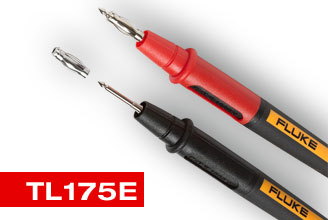

The Fluke TL175E version is also available. Includes removable 4 mm lantern tips that thread onto the lead tip.
Conforms to EN61010-031 One pair (red, black) of TL175E TwistGuard™ Test Leads, with variable exposed probe tip length from 19 mm to 4 mm (0.75 inch to 0.16 inch) and includes removable 4 mm lantern tips for versatility. Conforms to EN61010-031, Ratings: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., Pollution Degree 2

Download Fluke TL-175 Test Lead Data Sheet
