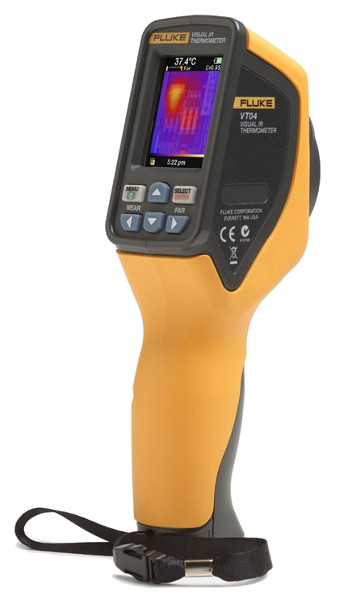

Fluke VT04 Visual IR Thermometer
Our Price: $549.95
Sale Price: $494.96
Item Number: FLK-VT04
Manufacturer: Fluke
Part Number: FLK-VT04
* Whole number only
|
|
Fluke VT04 Visual IR Thermometer
Features
- On-screen center spot cursor easily identifies specific target of temperature reading
- Blend between thermal and visual images on camera and in included software. Captures both visual and thermal image with every pull of the trigger.
- Hot and cold spot trackers identify issues quickly - available in visual, infrared, and blended modes
- Includes SmartView® professional software for professional reports and image editing
- NEAR/FAR feature, exclusive to Fluke Visual IR Thermometer products, allows the user to take simultaneous visual images with thermal heat map images that are accurately aligned close in ≤23 cm (9 in) with the NEAR feature, as well as beyond with the FAR feature.
- Incredibly intuitive Point & Shoot focus free design; little to no training required
- -10 °C to +250 °C (14 °F to 482 °F) temperature measurement range
- On-screen emissivity improves accuracy across a wide range of materials
- Uses 4 standard AA cell batteries for 8 hours of continuous battery life
- Store up to 10,000 images on micro-SD card, easy download to PC and import into software
- Utilizes breakthrough hyper-thin pyroelectric technology
Technical Specifications
| Temperature measurement range: |
-10 °C to +250 °C (14 °F to 482 °F)
|
| Temperature measurement accuracy: |
± 2 °C or ± 2 % of reading in °C, whichever is greater (at 25 °C nominal), as tested
|
| Detector type: |
Uncooled hyper-thin pyroelectric ceramic (30 x 30 pixels)
|
| Infrared spectral band: |
6.5 μm to 14 μm
|
| Field of view: |
20° X 20°
|
| Level and span: |
Auto |
| Viewing options: |
Blending of the visual and the infrared from full infrared to full visual in 25 % steps. |
| Storage medium: |
4 GB micro SD card.
|
File format:
|
2 format saved to SD card. When imported to included SmartView® reporting software, user can create professional reports or images can be exported into multiple formats (BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF AND TIFF)
|
| Memory review: |
Scroll through all saved images and view on screen
|
| Operating temperature: |
-10 °C to +45 °C (14 °F to 113 °F)
|
| Storage temperature: |
-20 °C to +60 °C (-4 °F to 140 °F)
|
| Relative humidity: |
10 % to 90 % non-condensing
|
| Display: |
2.2 in diagonal
|
| Controls and adjustments: |
Select color palette User selectable temperature scale (°F/°C) Time/date set Emissivity selection
|
| Software: |
SmartView® analysis and reporting software, included |
| Power savings: |
Power down after 10 minutes of inactivity. |
| Electromagnetic compatibility: |
CE / EN61326-1:2006
|
US FCC:
|
CFR47: 2009 Class A. Part 15 subpart B.
|
| Size (H x W x L): |
8.3 in x 3 in x 2.2 in
|
| Weight (battery included): |
< 300 gm (10.5 oz) |
| Warranty: |
2 years
|
Includes
Fluke VT04 Visual IR Thermometer, Hard case, Micro-SD card, Micro-SD conversion adapter to standard, AA Batteries (4) , Lanyard, Quick Start guide, SmartView® analysis and reporting software CD, Manual
|
Fluke VT04 Visual IR Thermometer HVAC kit combines top rated HVAC tools – Fluke 116 DMM, 902 Clamp Meter and the VT04 that offers powerful infrared on the go.
|
Fluke VT04 Visual IR Thermometer Maintenance Combo Kit combines top rated tools - Fluke 1507 Insulation Tester and VT04 that offers powerful infrared on the go.
|
Fluke VT04 Visual IR Thermometer Electrical kit combines top rated tools - Fluke 117 DMM, 376 Clamp Meter and VT04 that offers powerful infrared on the go.
| |
