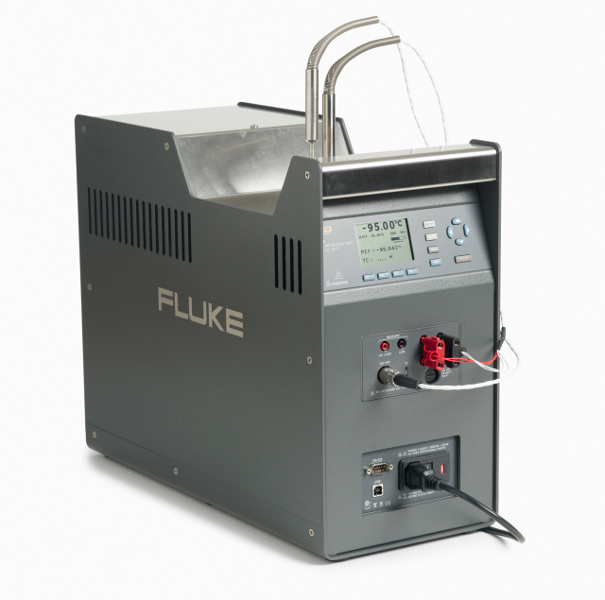

Fluke 9190A Ultra-Cool Field Metrology Well

Great for clean room environments

Calibration baths are the most stable and uniform temperature sources available, but they aren’t a good fit for clean rooms. The size of a bath limits its portability, and bath fluids can easily spill and give off vapors. The 9190A Ultra-Cool Field Metrology Well is a great alternative. Its wide temperature range brackets the coldest and highest temperature ranges required for pharmaceutical, biomedical and food processing applications. The 9190A is small and lightweight, making it easy to transport. And since it does not use heat transfer fluids, clean rooms stay clean. The 9190A cooling and heating times are faster than a calibration bath—that means calibration work gets done more quickly.

An accurate temperature source is critical for dependable process measurements

Unreliable process measurements can have a damaging impact on business, leading to poor product quality, recalls, fines, waste, and lost profits. Ultimately, measurements are only as good as the temperature sources used to calibrate the measurement equipment. The 9190A Ultra-Cool Field Metrology Well incorporates the best technology and design expertise gained from decades of dry-block development experience. The 9190A conforms with EURAMET cg-13 guidelines for best measurement practices for temperature block calibrators. As a result, you can be assured that the 9190A specifications for accuracy, stability, axial (vertical) uniformity, radial (well-to-well) uniformity, loading, and hysteresis have been thoroughly and carefully defined and tested. With a 9190A Ultra-Cool Field Metrology Well, you can be confident you’re using the most accurate and stable ultra-cool dry-block calibrator available. And that will have a positive impact on your business.

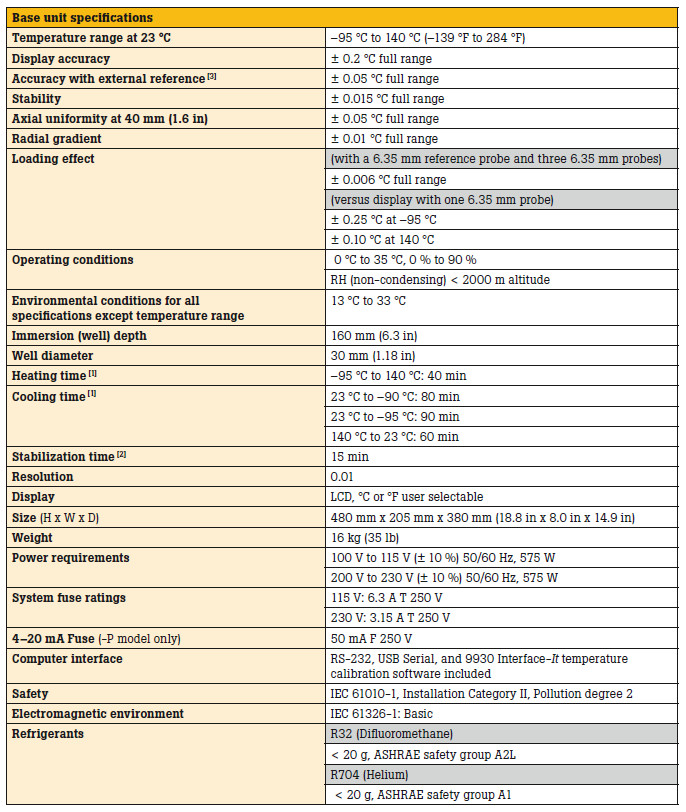

Features

Wide temperature range
From –95 °C to 140 °C

Excellent accuracy
Accuracy using built-in reference thermometer readout: ± 0.05 °C full range
Display accuracy: ± 0.2 °C full range

Best-in-class stability
± 0.015 °C full range

Fast cooling time
23 °C to –90 °C: 80 minutes
23 °C to –95 °C: 90 minutes
140 °C to 23 °C: 60 minutes

Portability
Weighs only 16 kg (35 lb)
Built-in front and back handles for easy two-handed carry

Ergonomics

• Two-handed carry; built-in handles on front and back
• All controls and inputs on the front panel

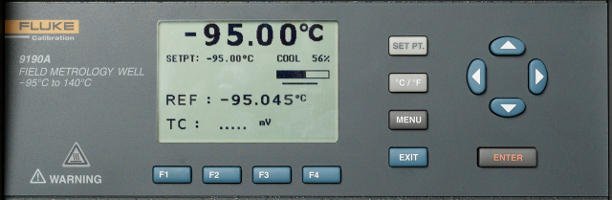

Stability indicator

• Shows whether block temperature is stable and within limits defined by the user

PC interface

• USB and RS-232 support remote operation from a computer

Dual heater zone

• Active heater zone control compensates for differential temperatures between zones
• Minimizes axial temperature gradients

Ramp-and-soak set-points

• Define up to eight set-point temperatures; automatically ramp to and “soak” at each set-point
• Specify soak time, number of cycles, and direction

Fast time to temperature and small footprint

• Compact, efficient free piston Stirling cooler technology (FPSC)
