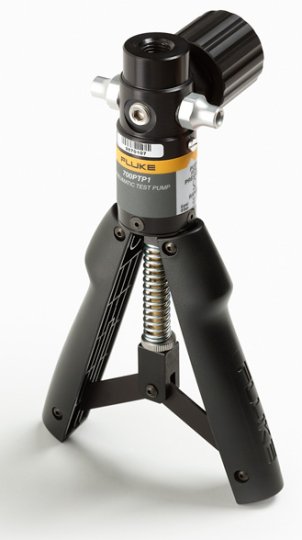

Fluke 700PTP-1 Pneumatic Test Pump

Our Price: $729.95

Sale Price: $656.96

Item Number: FLUKE-700PTP-1

Manufacturer: Fluke

Part Number: FLUKE-700PTP-1

Quantity:

Email this page to a friend

Fluke 700PTP-1 Pneumatic Test Pump

For use with 700 series pressure modules or test gauges. Can be directly connected to the reference port consolidating two separate pieces when performing pressure calibration and testing. Can also be used with 717 pressure calibrators. Ideal for calibrating pressure transmitters, pressure switches and pressure gauges up to 600 PSI/40 bar.

Features:

Pump can be easily cleaned without disassembly
The vernier can be used as a stand-alone low pressure calibration source
Two pressure ports allowing simultaneous connection:
1/4 NPT female fitting for the reference gauge or pressure module
1/4 NPT female fitting for the unit under test
Adjustable stroke length can be set to limit the pressure per stroke

Mechanical & General Specifications

Size

length 8.7 in (220 mm), width 4.8 in (122 mm), depth 3.5 in (89 mm)

Weight

1.03 lb (467 g)

Warranty

One year

Material

Wetted materials: aluminum, silicon, neoprene, stainless steel, Buna-N

Fluke 700PTP-1 Includes:

1/4 in NPT male to 1/4 in BSP female
1 meter of hose
(2) 1/8 in NPT male quick connects
1/8 NPT female to 1/4 in BSP female
Seal Kit
Instruction sheet
