Fluke 717 Pressure Calibrator
|
Item Number: FLUKE-717
Manufacturer: Fluke
Part Number: FLUKE-717
Product Options
* denotes required field
Fluke 717 Pressure Range Selection*
You must select an option for 'Fluke 717 Pressure Range Selection'.
* Whole number only
|
|
Fluke 717 Pressure Calibrator
The Fluke 717 pressure calibrators are compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Fluke 740 Series Documenting Process Calibrators, the Fluke 717 is easy to use. The Fluke 717 are EMI tolerant, dust and splash resistant, and feature a removable battery door for quick battery changes.
Features - Fluke 717 Pressure Calibrator:
-
Calibrate P/I transmitters with simultaneous pressure and current measurement
-
Measure pressure and vacuum to 0.05 % of full scale with internal 30 psig sensor
-
Compatible with non-corrosive gasses and liquids
-
Measure pressure to 10,000 psig using one of 29 Fluke 700Pxx Pressure Modules
-
Measure mA with 0.025 % accuracy and 0.001 mA resolution
-
24 V loop power supply
-
Select 11 different engineering units
-
Zero, min, max, and hold functions
-
3-year warranty
| Specifications - Fluke 717 Pressure Calibrator: |
| Loop Power |
| Range: |
24 V dc |
| Accuracy: |
+/- 10% |
|
Note: Drive; 20 mA into 1000 ohms for battery >6.8V; 700 W for battery 5.8 to 6.8 V |
|
| Display |
|
| Environmental Specifications: |
| Operating Temperature |
|
| Storage Temperature |
|
| Humidity (Without Condensation) |
|
95% (10 C to 30 C) |
|
75% (30 C to 40 C)
|
|
45% (40 C to 50 C) |
|
35% (50 C to 55 C) |
|
| Operating Altitude |
|
| Safety Specifications: |
| Safety |
|
CSA C22.2 No. 1010.1:1992 |
|

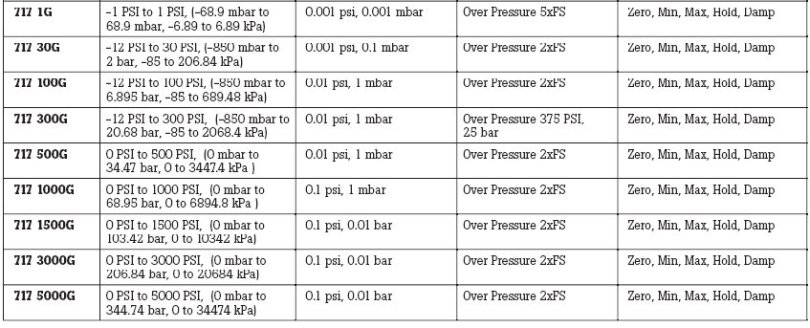

Functional Pressure Specifications - Fluke 717 Pressure Calibrator:
|
