Fluke 376 True-RMS AC/DC Clamp Meter with iFlex
Our Price: $399.95
Sale Price: $359.96
Item Number: FLUKE-376
Manufacturer: Fluke
Part Number: FLUKE-376
* Whole number only
|
|

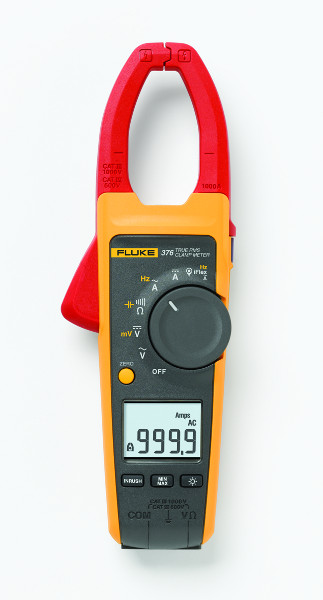

Fluke 376 True-RMS AC/DC Clamp Meter with iFlex™
The Fluke 376 Clamp Meter offers improved performance perfect for a wide range of current measurement situations. With true-rms voltage and current measurements, the Fluke 376 can read up to 1000 V and 1000 A in both ac and dc modes.
Additionally, the Fluke 376 includes the new iFlex™ flexible current probe, which expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure around awkward sized conductors and improved wire access. The Fluke 376 is the direct replacement for the Fluke 337 Clamp Meter.
|
Fluke 376 Features:
-
iFlex flexible current probe expands the measurement range to 2500 A ac
-
CAT IV 600 V, CAT III 1000 V
-
True-rms ac voltage and current for accurate measurements on non-linear signals
-
Min, max, average and inrush recording to capture variations automatically
-
Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
-
Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
-
Ergonomic design fits in your hand and can be used while wearing protective equipment
-
Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
-
Three-year warranty
-
Soft carrying case
Fluke 376 Specifications:
|
|
| Diameter of Measurable Conductor |
01.3" or 34 mm max |
| Operating Temperature |
-14 to 122°F (-10 to 50°C) |
| Storage Temperature |
-40 to 140°F (-40 to 60°C) |
| Operating Humidity |
< 90% @ 10 to 30 °C,
< 75% @ 30 to 40 °C
|
| Operating Altitude |
0 to 3000 m |
| Size |
246 x 83 x 43 mm,
9.685 x 3.267 x 1.692 in.
|
| Weight |
388g,
14 oz
|
| Temperature Coefficient |
0.01% °C,
<18°C or > 28°C
|
| Warranty |
Three years for electronics
One year for cable and clamp assembly
|
Fluke Clamp Meter Comparison:
|
|
Fluke-365
|
Fluke-373
|
Fluke-374
|
Fluke-375
|
Fluke-376
|
Fluke-381
|
|
Meausre ac current
|
200.0 A
|
600.0 A
|
600.0 A
|
600.0 A
|
999.9 A
|
999.9 A
|
|
Measure ac current via IFlex
|
|
|
2500 A
|
2500 A
|
2500 A
|
2500 A
|
|
Measure ac voltage
|
600.0 V
|
600.0 V
|
600.0 V
|
600.0 V
|
600.0 V
|
600.0 V
|
|
Measure continuity
|
≤ 30 Ω
|
≤ 30 Ω
|
≤ 30 Ω
|
≤ 30 Ω
|
≤ 30 Ω
|
≤ 30 Ω
|
|
Measure dc amps
|
200.0 A
|
|
600.0 A
|
600.0 A
|
999.9 A
|
999.9 A
|
|
Measure dc voltage
|
600.0 V
|
600.0 V
|
600.0 V
|
600.0 V
|
600.0 V
|
600.0 V
|
|
Measure resistance
|
6,000 Ω
|
6,000 Ω
|
6,000 Ω
|
60k Ω
|
60k Ω
|
60k Ω
|
|
Meaure frequency
|
|
|
|
500 Hz
|
500 Hz
|
500 Hz
|
|
Meausre inrush
|
|
|
100 mS
|
100 mS
|
100 mS
|
100 mS
|
|
Work in poorly lit areas
|
Backlight
|
Backlight
|
Backlight
|
Backlight
|
Backlight
|
Backlight
|
|
Measure non-linear loads
|
True-RMS
|
True-RMS
|
True-RMS
|
True-RMS
|
True-RMS
|
True-RMS
|
|
Our Price: $249.99
Sale Price: $224.99
The Fluke 373 Clamp Meter offers improved performance perfect for any ac only current measurement situations. Featuring true-rms ac voltage and current measurements, and resistance measurement up to 6000Ω with continuity detection.
|
The Fluke 365 is a rugged meter perfect for jobs where access to wires is difficult. The 365’s thin, small jaw is detachable with a flexible lead, which makes gaining access to wires and viewing the display easier than ever.
|
Our Price: $299.95
Sale Price: $269.96
The Fluke 374 True-rms Clamp Meter can read up to 600 V and 600 A in both ac and dc modes.
|
Our Price: $349.95
Sale Price: $314.96
The Fluke 375 has true-rms ac voltage and current measurements and can ready up to 600 V and 600 A in both ac and dc modes, and is capable of frequency measurement up to 500 Hz.
|
Our Price: $499.95
Sale Price: $449.96
The new Fluke 381 does everything you would expect from a clamp meter, and then lets you remove the display for even more flexibility. Now one technician can do jobs that used to require two people.
|
Fluke VT04 Visual IR Thermometer Electrical kit combines top rated tools - Fluke 117 DMM, 376 Clamp Meter and VT04 that offers powerful infrared on the go.
|
