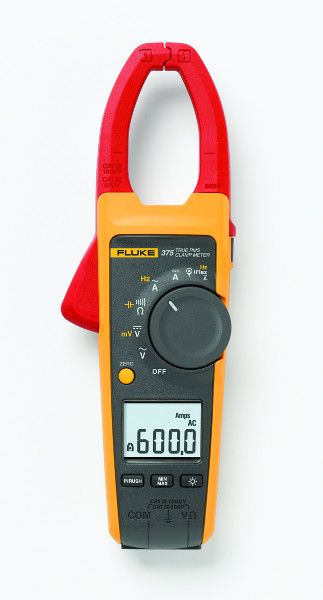

Fluke 375 True-RMS AC/DC Clamp Meter
Fluke 375 Features:
- iFlex flexible current probe expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access.
- CAT IV 600 V, CAT III 1000 V
- True-rms ac voltage and current for accurate measurements on non-linear signals
- 500 mV dc measurement range to interface with other accessories
- Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
- Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- Ergonomic design fits in your hand and can be used while wearing protective equipment
- Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
- Three-year warranty
- Soft carrying case
Fluke 375 Specifications:
|
Diameter of measureable conductor
|
0.13" or 34 mm max
|
|
Operating Temperature
|
-14 to 122°F (-10 to 50°C)
|
|
Storage Temperature
|
-40 to 140°F (-40 to 60°C)
|
|
Operating Humidity
|
< 90% @ 10 to 30°C
<75% @ 30 to 40°C
|
|
Operating Altitude
|
0 to 3000 m
|
|
Size
|
246 x 83 x 43 mm, (9.685 x 3.267 x 1.692 in.)
|
|
Weight
|
388g, (14 oz.)
|
|
Temperature Coefficient
|
0.01% °C
(<18°C or > 28°C)
|
|
Warranty
|
Three years for electronics
One year for cable and clamp assembly
|
Fluke Clamp Meter Comparison:
|
|
Fluke-365
|
Fluke-373
|
Fluke-374
|
Fluke-375
|
Fluke-376
|
Fluke-381
|
|
Meausre ac current
|
200.0 A
|
600.0 A
|
600.0 A
|
600.0 A
|
999.9 A
|
999.9 A
|
|
Measure ac current via IFlex
|
|
|
2500 A
|
2500 A
|
2500 A
|
2500 A
|
|
Measure ac voltage
|
600.0 V
|
600.0 V
|
600.0 V
|
600.0 V
|
600.0 V
|
600.0 V
|
|
Measure continuity
|
≤ 30 Ω
|
≤ 30 Ω
|
≤ 30 Ω
|
≤ 30 Ω
|
≤ 30 Ω
|
≤ 30 Ω
|
|
Measure dc amps
|
200.0 A
|
|
600.0 A
|
600.0 A
|
999.9 A
|
999.9 A
|
|
Measure dc voltage
|
600.0 V
|
600.0 V
|
600.0 V
|
600.0 V
|
600.0 V
|
600.0 V
|
|
Measure resistance
|
6,000 Ω
|
6,000 Ω
|
6,000 Ω
|
60k Ω
|
60k Ω
|
60k Ω
|
|
Meaure frequency
|
|
|
|
500 Hz
|
500 Hz
|
500 Hz
|
|
Meausre inrush
|
|
|
100 mS
|
100 mS
|
100 mS
|
100 mS
|
|
Work in poorly lit areas
|
Backlight
|
Backlight
|
Backlight
|
Backlight
|
Backlight
|
Backlight
|
|
Measure non-linear loads
|
True-RMS
|
True-RMS
|
True-RMS
|
True-RMS
|
True-RMS
|
True-RMS
|
|
Our Price: $249.99
Sale Price: $224.99
The Fluke 373 Clamp Meter offers improved performance perfect for any ac only current measurement situations. Featuring true-rms ac voltage and current measurements, and resistance measurement up to 6000Ω with continuity detection.
|
The Fluke 365 is a rugged meter perfect for jobs where access to wires is difficult. The 365’s thin, small jaw is detachable with a flexible lead, which makes gaining access to wires and viewing the display easier than ever.
|
Our Price: $299.95
Sale Price: $269.96
The Fluke 374 True-rms Clamp Meter can read up to 600 V and 600 A in both ac and dc modes.
|
Our Price: $399.95
Sale Price: $359.96
The Fluke 376 Clamp Meter offers improved performance perfect for a wide range of current measurement situations. With true-rms voltage and current measurements, the Fluke 376 can read up to 1000 V and 1000 A in both ac and dc modes.
|
Our Price: $499.95
Sale Price: $449.96
The new Fluke 381 does everything you would expect from a clamp meter, and then lets you remove the display for even more flexibility. Now one technician can do jobs that used to require two people.
| |
