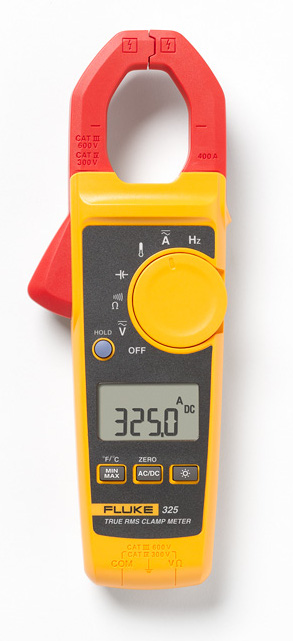

Fluke 325 True RMS AC/DC Clamp Meter

Our Price: $299.99

Sale Price: $269.99

Item Number: FLUKE-325

Manufacturer: Fluke

Part Number: FLUKE-325

Product Options

* denotes required field

Calibration Options*

Calibration Certificate not included

Standard Calibration Certificate (+ $65.00)

ISO 17025 Accredited Calibration Services (1000 AC/DC Amps maximum) (+ $95.00)

Quantity:

Email this page to a friend

The new Fluke 323, 324 and 325 True RMS clamp meters have been developed for commercial, light industrial, HVAC, residential and DIY applications. The Fluke 323, 324 and 325 True-rms Clamp Meters combine functionality with value in one small compact package. With a smaller jaw and tapered design, these ergonomic clamp meters are extremely easy to use. As expected they are all Fluke tough, too, having been designed to withstand a one-meter drop and Category III/IV safety rated.

Features - Fluke 325 Clamp Meter

400 Amp AC and DC current measurement
600 V AC and DC voltage measurement
True RMS AC voltage and current for accurate measurements on non-linear signals
Resistance measurement up to 40 kΩ with continuity detection
Slim, ergonomic design
CAT IV 300V/CAT III 600 V safety rating
Hold button, MIN/MAX
Back-lit Display
Temperature measurement
Capacitance measurement
Frequency measurement
Two-year warranty

Includes Soft carrying case and test leads

Specifications - Fluke 323 - Fluke 324 - Fluke 325 TRMS Clamp-on Multimeter
		Fluke 323	Fluke 324	Fluke 325
AC current	Range	400.0 A	40.00 A/400.0 A	40.00 A/400.0 A
AC current	Accuracy	2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz)	1.5 % ± 5 digits (45 Hz to 400 Hz) Note: Add 2 % for position sensitivity	2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz)
DC current	Range	-	-	40.00 A/400.0 A
DC current	Accuracy	-	-	2 % ± 5 digits
AC voltage	Range	600.0 V	600.0 V	600.0 V
AC voltage	Accuracy	1.5 % ± 5 digits	1.5 % ± 5 digits	1.5 % ± 5 digits
DC voltage	Range	600.0 V	600.0 V	600.0 V
DC voltage	Accuracy	1.0 % ± 5 digits	1.0 % ± 5 digits	1.0 % ± 5 digits
Resistance	Range	400.0 Ω/ 4000 Ω	400.0 Ω/ 4000 Ω	400.0 Ω/ 4000 Ω 40.00 kΩ
Resistance	Accuracy	1.0 % ± 5 digits	1.0 % ± 5 digits	1.0 % ± 5 digits
Continuity		= 70 Ω	= 30 Ω	= 30 Ω
Capacitance		-	100.0 µF to 1000 µF	100.0 µF to 1000 µF
Frequency		-	-	5.0 Hz to 500.0 Hz
AC response		True-rms	True-rms	True-rms
Backlight		-	Yes	Yes
Data hold		Yes	Yes	Yes
Contact temperature		-	-10.0 °C to 400.0 °C (14.0 °F to 752.0 °F)	-10.0 °C to 400.0 °C (14.0 °F to 752.0 °F)
Min/Max		-	-	Yes
Size	H x W x D (mm)	207 x 75 x 34	207 x 75 x 34	207 x 75 x 34
	Max wire diameter	30 mm (600 MCM)	30 mm (600 MCM)	30 mm (600 MCM)
	Weight	265 g	208 g	283 g
Category rating		CAT III 600 V CAT IV 300 V	CAT III 600 V CAT IV 300 V	CAT III 600 V CAT IV 300 V
Warranty		Two-year	Two-year	Two-year
