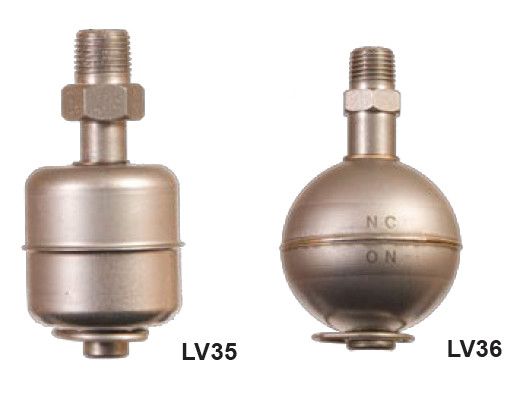

Flowline Switch-Tek LV3X Vertical High-Temp Float Level Switch
Application
Offered in both vertical and horizontal configurations, the general purpose high-temp float level switches provide reliable liquid level detection of relatively clean water, diluted chemicals and light weight oils with a 30VA or 100VA reed switch output. Media examples include hot deionized water and cooking oil. The stainless steel liquid level sensors are mounted vertically inside the tank or horizontally through the tank wall as a high level alarm or low level alarm.
Features
- 316 SS level sensor for high temperature and pressure applications
- Dry contact reed switch selectable NO or NC via float orientation
- Offered in both vertical and horizontal mounting configurations

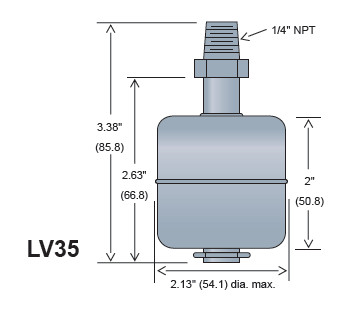

Dimensions
Technical Specifications
| Orientation: |
LV3X: ±20° vertical
LH35: ±20° horizontal |
| Accuracy: |
± 3mm in water |
| Repeatability: |
± 1mm in water |
| Specific gravity: |
LV3X: 0.7 minimum
LH35: 0.6 minimum |
| Contact type: |
(1) SPST reed |
| Contact rating: |
LX35: 30 VA
LV36: 100 VA |
| Contact output: |
Selectable NO / NC |
| Process temp.: |
F: -40° to 392°
C: -40° to 200° |
| Pressure: |
LV35: 300 psi (20.7 bar)
LV36: 500 psi (34.5 bar)
LH35: 300 psi (20.7 bar) |
| Sensor rating: |
NEMA 6 (IP68) |
| Sensor material: |
316 SS |
| Wire jack. mat.: |
Polymeric |
| Wire type: |
2-conductor |
| Wire length: |
2' (61cm) |
| Process mount: |
LV35: 1/8" NPT
LV36: 1/4" NPT
LH35: 1/2" NPT |
| Classification: |
General purpose |
| Compliance: |
CE, RoHS |
|
Our Price: Starting at $195.00
Flowline Switch-Pro general purpose (LC4X) or isolation (LC9X) with built-in intrinsic safety barriers for use with associated apparatus, the level controller is offered in three configurations for pump and valve control.
|
Flowline Switch-Tek LH35 maximum pressure is 500 psi (34.5 bar)
|
