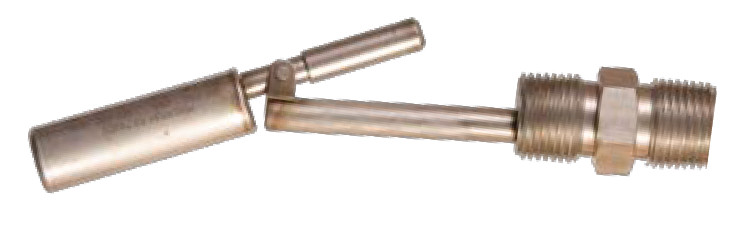

Flowline Switch-Tek LH35 Horizontal High-Temp Float Level Switch
|
Item Number: LH35-S201
Manufacturer: Flowline
Part Number: LH35-S201
Product Options
Single & Two Controller NEMA Box Selection
* Whole number only
|
|
Flowline Switch-Tek LH35 Horizontal High-Temp Float Level Switch
Application
Offered in both vertical and horizontal configurations, the general purpose high-temp float level switches provide reliable liquid level detection of relatively clean water, diluted chemicals and light weight oils with a 30VA or 100VA reed switch output. Media examples include hot deionized water and cooking oil. The stainless steel liquid level sensors are mounted vertically inside the tank or horizontally through the tank wall as a high level alarm or low level alarm.
Features
- 316 SS level sensor for high temperature and pressure applications
- Dry contact reed switch selectable NO or NC via float orientation
- Offered in both vertical and horizontal mounting configurations

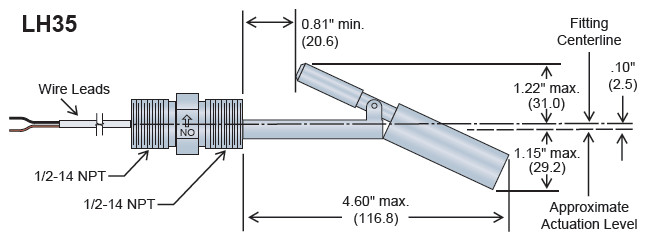

Dimensions
Technical Specifications
| Orientation: |
LV3X: ±20° vertical
LH35: ±20° horizontal |
| Accuracy: |
± 3mm in water |
| Repeatability: |
± 1mm in water |
| Specific gravity: |
LV3X: 0.7 minimum
LH35: 0.6 minimum |
| Contact type: |
(1) SPST reed |
| Contact rating: |
LX35: 30 VA
LV36: 100 VA |
| Contact output: |
Selectable NO / NC |
| Process temp.: |
F: -40° to 392°
C: -40° to 200° |
| Pressure: |
LV35: 300 psi (20.7 bar)
LV36: 500 psi (34.5 bar)
LH35: 500 psi (34.5 bar)
|
| Sensor rating: |
NEMA 6 (IP68) |
| Sensor material: |
316 SS |
| Wire jack. mat.: |
Polymeric |
| Wire type: |
2-conductor |
| Wire length: |
2' (61cm) |
| Process mount: |
LV35: 1/8" NPT
LV36: 1/4" NPT
LH35: 1/2" NPT |
| Classification: |
General purpose |
| Compliance: |
CE, RoHS |
|
