Flowline Switch-Tek LH29 Interstitial Leak Detection Switch
|
Item Number: LH29-1001
Manufacturer: Flowline
Part Number: LH29-1001
Product Options
Single & Two Controller NEMA Box Selection
* Whole number only
|
|
Flowline Switch-Tek LH29 Interstitial Leak Detection Switch
Application
The general purpose float leak switch provides reliable leak detection in and around secondary containment sumps and tanks with a 1A relay output. The flat body Valox leak sensor is ideal for placement in hard to reach interstitial areas with limited space. In the event of a leak, the foam polypropylene float will rise to signal the presence of unwanted liquid in the containment vessel. The leak detection switch is typically mounted flat on the bottom of the sump floor or secondary containment tank wall.
Features
- Valox sensor body with PP float and Halar® jacketed cable for corrosive liquids
- Flat, low profile sensor with minimal float rise for applications with limited space

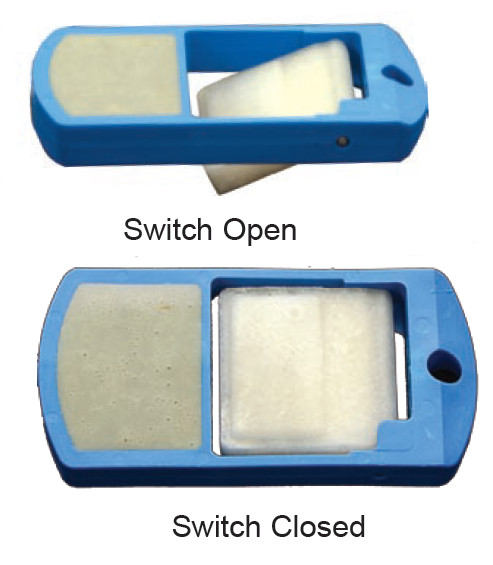

- Dry contact, normally closed reed switch opens to signal the presence of liquid

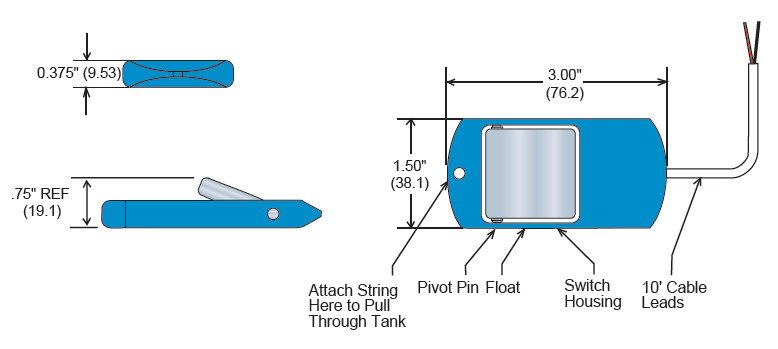

Dimensions
Technical Specifications
| Orientation: |
Horizontal |
| Contact type: |
(1) SPST reed |
| Contact state: |
NC, Open on rise |
| Contact rating: |
30 watts
240 VAC (0.14 amps resistive)
120 VAC (0.28 amps resistive)
120 VDC (0.07 amps resistive)
24 VDC (0.28 amps resistive) |
| Contact output: |
NC (opens on rise) |
| Process temp.: |
F: -40° to 221°
C: -40° to 105° |
| Pressure: |
50 psi (3.44 bar) |
| Float material: |
Foamed polypropylene |
| Body material: |
Valox 420 |
| Pivot pin: |
Stainless steel |
| Wire type: |
2 conductor, #22 AWG |
| Wire length: |
10' (3.04m) |
| Wire jacket mat: |
Halar jacketed |
| Classification: |
General purpose |
| Compliance: |
CE |
| Approvals: |
UL |
|
Our Price: Starting at $195.00
