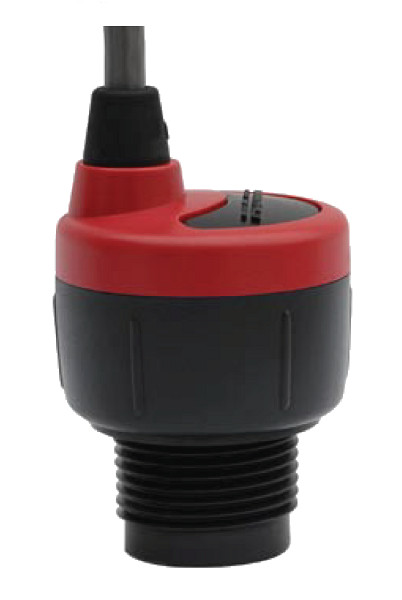

Flowline EchoPod DS14 Ultrasonic Level Switch & Controller
|
Item Number: DS14
Manufacturer: Flowline
Part Number: DS14
Product Options
* denotes required field
Flowline EchoPod DS14 Process Mount Selection*
You must select an option for 'Flowline EchoPod DS14 Process Mount Selection'.
Flowline EchoPod DS14 Fob USB Adapter Selection*
You must select an option for 'Flowline EchoPod DS14 Fob USB Adapter Selection'.
* Whole number only
|
|
Flowline EchoPod DS14 Ultrasonic Level Switch & Controller
Application
The general purpose ultrasonic level switch provides continuous level detection up to 49.2” (1.25m) with 4 programmable relays for level switch or level control functions, and is configured via our free WebCal software. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is broadly selected for small day tank, skid, IBC, sump and process tank level applications.
Features
- Level detection, switch and control functions up to 49.2” (1.25m)
- Configuration is fast and easy via WebCal software and USB adapter
- Narrow 2” beam width and short 2” dead band optimized for small tanks
- Four (4) programmable relays rated @ 1A / 60VA for switch, pump or valve control and fail-safety
• 1 pump or valve with 3 alarms
• 2 pumps (lead-lag) with 2 alarms
• 2 pumps (duplexing) with 2 alarms
• 4 independent switch point alarms
- PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
- Automatic temperature compensation for accurate measurement

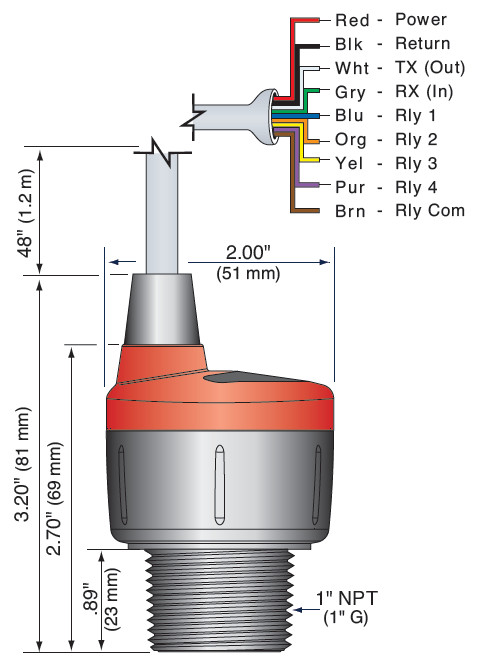

Dimensions
Technical Specifications
| Range: |
49.2” (1.25m) |
| Accuracy: |
0.125” (3mm) |
| Resolution: |
0.019” (0.5mm) |
| Dead band: |
2” (5cm) |
| Beam width: |
2” (5cm) |
| Configuration: |
WebCal® PC |
|
Windows® USB 2.0 |
| Memory: |
Non-volatile |
| Supply voltage: |
12-24 VAC / VDC |
| Consumption: |
0.5W |
| Contact type: |
(4) SPST relays, 1A |
| Contact fail-safe: |
Power loss: Hold last |
|
Power on: Open, close |
|
or hold last |
| Hysteresis: |
Selectable |
| Process temp.: |
F: 20° to 140° |
|
C: -7° to 60° |
| Temp. comp.: |
Automatic |
| Ambient temp.: |
F: -31° to 140° |
|
C: -35° to 60° |
| Pressure: |
MWP = 30 PSI (2 bar) |
| Enclosure rating: |
Type 6P, encapsulated, |
|
corrosion resistant & |
|
submersible |
| Encl. material: |
Polycarbonate |
| Strain relief mat: |
Santoprene |
| Trans. material: |
PVDF |
| Cable jacket mat: |
Polyurethane |
| Cable type: |
9-conductor, shielded |
| Cable length: |
48” (1.2m) |
| Process mount: |
1” NPT (1” G) |
| Mount gasket: |
Viton® |
| Classification: |
General purpose |
| Compliance: |
CE, RoHS |
| Approvals: |
cFMus
|
|
