Flowline DeltaSpan LD30 External Pressure Level Transmitter
Our Price: Starting at $290.00
Manufacturer: Flowline
Part Number: LD30
Product Options
| Sensor range: |
|
| Termination: |
|
* Whole number only
|

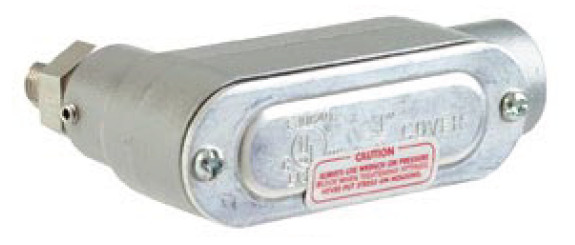

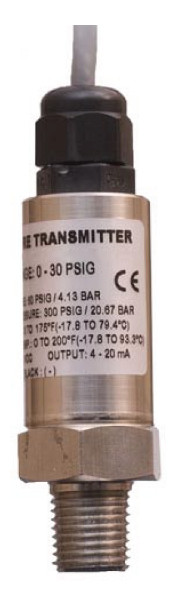

 Flowline DeltaSpan LD30-S001 External Pressure Level Transmitter Flowline DeltaSpan LD30-S011 External Pressure Level Transmitter |
|
Flowline DeltaSpan LD30 External Pressure Level Transmitter
Application
The general purpose external pressure level transmitter is offered in two styles of termination and provides continuous level measurement up to 69' (21m) of water column with a 4-20 mA signal output. Select the -S_01 level sensor for cable termination or the -S_11 level sensor for conduit termination with an integral junction box. This liquid level sensor is well suited for clean liquid or gas media. Applications include cutting oil and air.
Features
- Corrosion resistant 316 SS body with threaded mount
- Available with polyurethane cable or junction box termination
- Automatic temperature compensation for accurate measurement

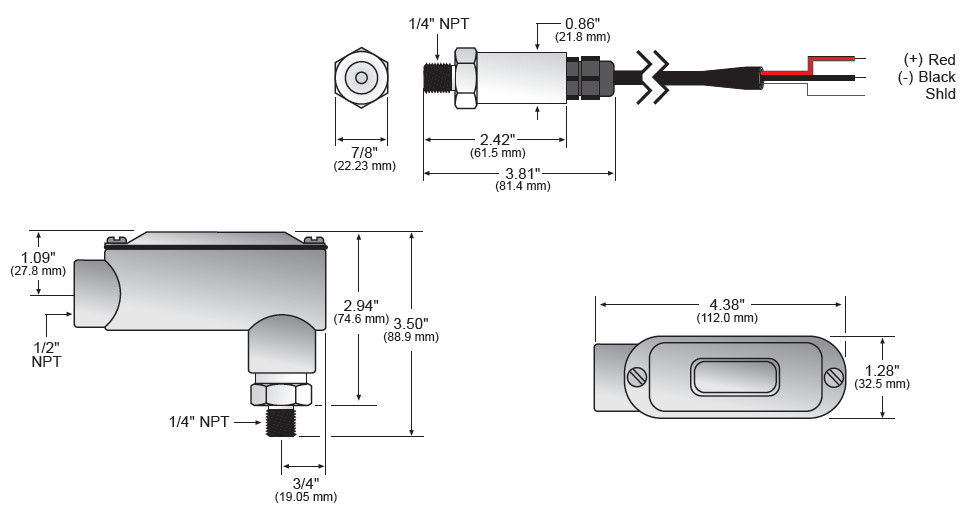

Dimensions
Technical Specifications
| Range: |
-S0X1: 0 to 5 psi (0.34 bar),
0 to 11' (0 to 3.4m) wc
-S2X1: 0 to 15 psi (1 bar),
0 to 34' (0 to 10.4m) wc
-S4X1: 0 to 30 psi (2 bar),
0 to 69' (0 to 21.1m) wc |
| Accuracy: |
± 0.25% of full scale |
| Configuration: |
None, fixed span |
| Supply voltage: |
13-30 VDC |
| Loop resist.: |
1300 Ohms max @ 30 VDC |
| Signal output: |
4-20 mA, two-wire |
| Process temp.: |
F: 0° to 200°
C: -18° to 93° |
| Temp. comp.: |
Automatic |
| Ambient temp.: |
F: 0° to 175°
C: -18° to 79° |
| Proof pressure: |
2 x full span |
| Response time: |
50ms |
| Weight: |
10 oz (283 g) |
| Enclosure rating: |
NEMA 4X (IP65) |
| Termination: |
-SX01: Cable
-SX11: Junction box
with 1/2" NPT conduit |
| Cable type: |
-SX01: 2-cond., shielded |
| Enclosure mat.: |
316 SS |
| Cable material: |
-SX01: Polyurethane |
| Process mount: |
1/4" NPT |
| Trans. material: |
316 SS & 316L SS |
| Classification: |
General purpose |
| Compliance: |
CE |
| Cable length: |
-SX01: 9' (2.7m) |
|
