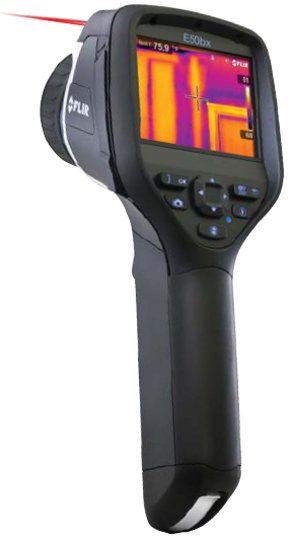

FLIR E50bx InfraRed Camera

• Focal Plane Array detector with 240 x 180 pixels infrared resolution (43,200 pixels)
• Temperature range: -4°F to 248°F (-20°C to 120°C) with ±2% or 2°C accuracy
• 0.045°C @ 30°C Thermal Sensitivity (N.E.T.D)
• Manual focus, 4x continuous zoom
• Built-in laser pointer, 3.5" Touch-Screen LCD display
• Built-in 3.1 Megapixel visible light digital camera with bright LED lamp for poorly lit environments

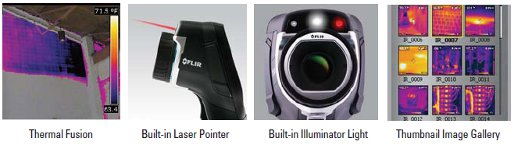

• Functions include Scalable Picture-In-Picture, Thermal Fusion, Insulation & Humidity Alarm, Voice/Text Annotation, Laser Pointer Marker
• Measurement modes: up to 3 movable Spots, Area (Min/Max/Average), Auto Hot/Cold spot marker, Isotherm (Above/Below), Delta T
• METERLiNK™ Bluetooth® Wireless communication
• Wi-Fi Connectivity allows to send images and data to mobile devices
• Thumbnail Image Gallery function allows quick search of stored images
• Memory card slot for image storage (more than 1,000 Radiometric JPEG images)
• Complete with Memory card, Li-Ion rechargeable battery, power supply, USB cable, hand strap, lens cap and hard carrying case
• Includes FLIR Tools software for analysis of radiometric images

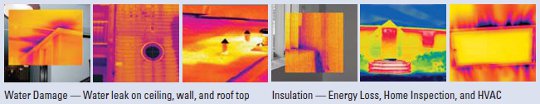

FLIR E50bx Applications:

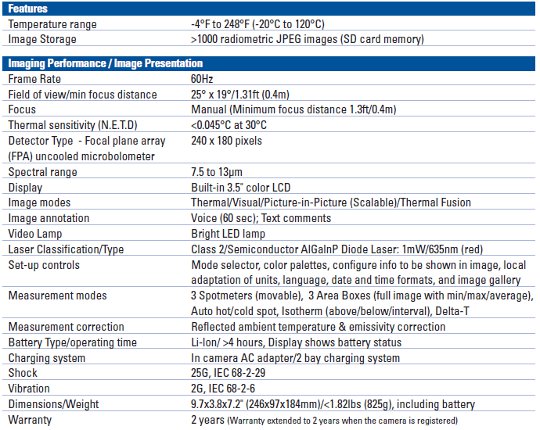

FLIR E50bx Data Sheet
