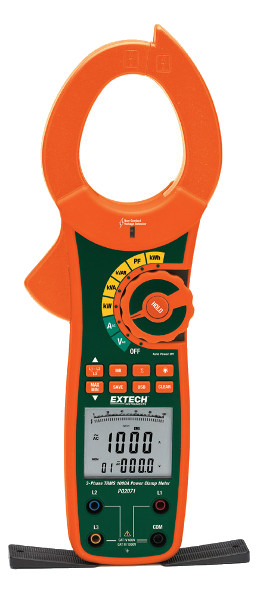

Extech PQ2071 1-/3-Phase 1000A True RMS AC Power Clamp Meter
|
Item Number: PQ2071
Manufacturer: Extech
Part Number: PQ2071
* Whole number only
|
|
Extech PQ2071 1-/3-Phase 1000A True RMS AC Power Clamp Meter
Multifunction Meter with Built-In Non-Contact Voltage Detector
Features
- Meter operates as a True RMS Clamp Meter, Power Meter, Multimeter, and AC Voltage Detector
- Measures AC Current, Voltage, Frequency and Power including True Power, Apparent Power, Reactive Power and Active Power
- Measures 1-Phase and balanced 3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Active Power (kWh), plus Power Factor and Phase Angle
- 2.16" (55mm) clamp jaw opening
- Large dual backlit LCD display (9999 count) with bargraph
- Built-in non-contact Voltage Detector with LED alert
- Manually store/recall up to 99 data sets
- Data Hold, Max/Min, and Auto power off
- USB interface for connection to a PC for datalogging function with included software
- Complete with test leads, four color-coded leads and alligator clips, USB cable, PC software, 9V battery, and soft case
Technical Specifications
| Specifications |
Range |
Max Resolution
|
Basic Accuracy (%rdg) |
| True Power (W) |
750kW |
10W |
±3% |
| Apparent Power(kVA) |
750kVA |
10kVA |
±3% |
| Reactive Power (kVAR) |
750kVAR |
10VAR |
±4% |
| Active Power (kWh) |
9999kWh |
0.001 |
±3% |
| Power Factor |
0.3 to 1 |
0.001 |
±0.02 |
| Phase Angle (φ) |
-180 to 180° |
1° |
±2° |
| AC Current: (Trms) |
1000A |
100mA |
±2% |
| AC Voltage: (Trms) |
750V |
0.1V |
±1.2% |
| Frequency |
50Hz to 200Hz |
1Hz |
|
Dimensions / Weight
|
11.5 x 3.75 x 1.5" (292 x 95 x 38mm)
|
/ 18.4oz (522g) |
|
|
