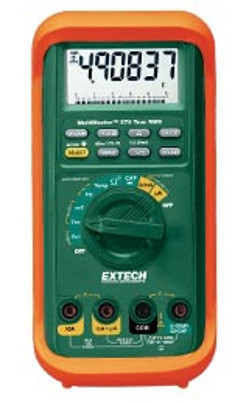

Extech MM570A MultiMaster® High-Accuracy Multimeter
|
Item Number: MM570A
Manufacturer: Extech
Part Number: MM570A
* Whole number only
|
|
Extech MM570A MultiMaster® High-Accuracy Multimeter
Extech MM570A Features:
-
0.02% (MM570A) and 0.03%
(MM560A) basic DCV accuracy
-
50,000 count (500,000 for DCV and Hz)
backlit LCD display with bargraph
-
Filtered frequency function with
adjustable trigger levels for variable
speed motor drives and high voltage
applications
-
Special True RMS combination AC+DC
function for measurements of rectified
AC (non-symmetrical) voltage & current
waveforms
-
AC/DC current to 10A with 0.01μA
resolution
-
4 to 20mA, displayed as 0-100% for
process current measurements
-
Max/Min recording with autoranging
-
Capacitance, Frequency, Resistance,
Continuity, Duty cycle and Diode tests
-
High resolution to 1μV, 0.0001Hz,
0.01Ω, 0.01μA and 0.1°
-
dBm measurements with 20 selectable
impedances
-
Features include Auto Power off,
Relative & Hold
-
Peak function captures transient pulses
-
On power-up. meter defaults to last set function
-
Audible and visible test lead misconnection warning
- Optional Windows® 95/98/NT/2000/ME/XP compatible PC communication software and optically isolated cable
- Up to 100kHz True RMS ACV bandwidth
- 1000V input protection on all functions
- T1, T2 and T1-T2 dual Type K input temperature display in °F or °C
- Complete with test leads, protective holster with stand, Type K thermocouple probe (-22 to 572°F/-30 to 300°C) and 9V battery

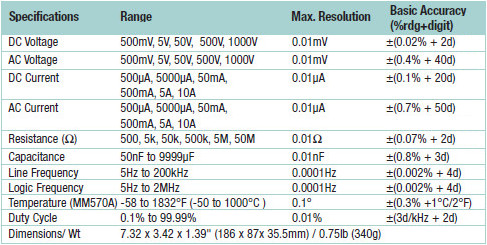

Extech MM570A Specifications:
|
The Extech MM560A has full range multimeter functions with high resolution to 0.1μA/0.1mV and CAT IV-600V Safety Rating
| |
