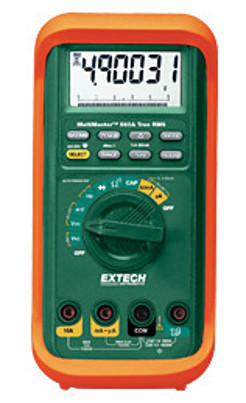

Extech MM560A MultiMaster® High-Accuracy Multimeter
|
Item Number: MM560A
Manufacturer: Extech
Part Number: MM560A
* Whole number only
|
|
Extech MM560A MultiMaster® High-Accuracy Multimeter
Extech MM560A Features:
-
0.02% (MM570A) and 0.03%
(MM560A) basic DCV accuracy
-
50,000 count (500,000 for DCV and Hz)
backlit LCD display with bargraph
-
Filtered frequency function with
adjustable trigger levels for variable
speed motor drives and high voltage
applications
-
Special True RMS combination AC+DC
function for measurements of rectified
AC (non-symmetrical) voltage & current
waveforms
-
AC/DC current to 10A with 0.01μA
resolution
-
4 to 20mA, displayed as 0-100% for
process current measurements
-
Max/Min recording with autoranging
-
Capacitance, Frequency, Resistance,
Continuity, Duty cycle and Diode tests
-
High resolution to 1μV, 0.0001Hz,
0.01Ω, 0.01μA and 0.1°
-
dBm measurements with 20 selectable
impedances
-
Features include Auto Power off,
Relative & Hold
-
Peak function captures transient pulses
-
On power-up. meter defaults to last set function
-
Audible and visible test lead misconnection warning

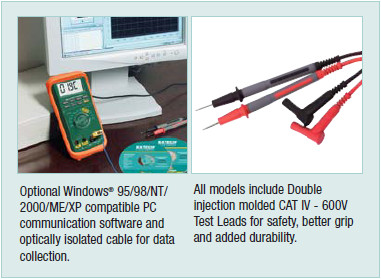

- Optional Windows® 95/98/NT/2000/ME/XP compatible PC communication software and optically isolated cable
- Up to 20kHz True RMS ACV bandwidth
- 600V input protection on all functions (1000V on Voltage)
- Complete with test leads, protective holster with stand and 9V battery

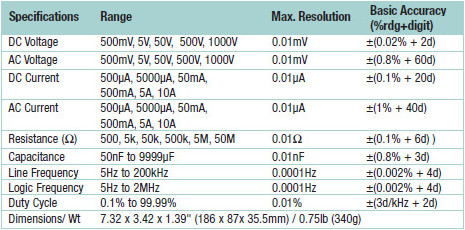

Extech MM560A Specifications:
|
The Extech MM570A has full range multimeter functions with high resolution to 0.1μA/0.1mV and CAT IV-600V Safety Rating
| |
