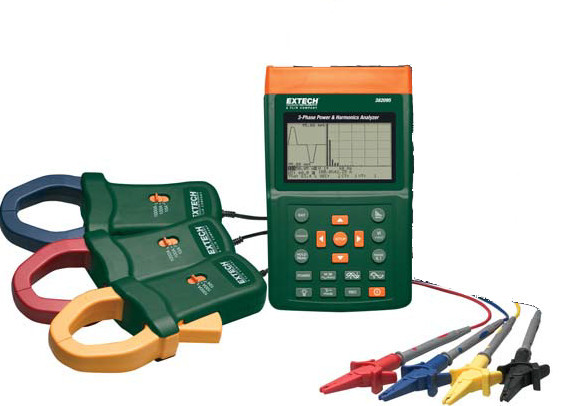

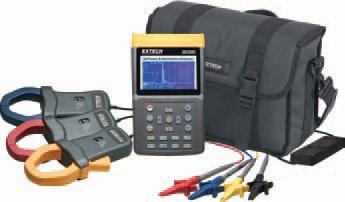

Extech 382095 1000A 3-Phase Power & Harmonics Analyzer

Extech 1000A 3-Phase Power & Harmonics Analyzer

Features:

• Large backlighting LCD displays up to 35 parameters in one screen (3P4W)
• Clamp-on True RMS power measurements with on-screen Harmonics display (1-99th order)
• Simultaneous display of Harmonics and Waveform
• Display of Waveform with Peak Values (1024 samples/period)
• Analysis of Total Harmonic Distortion (THD-F)
• Displays Active Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Power Factor
• kWH and kVARh energy measurements
• Maximum Demand (MDkW, MW, kVA, MVA) with programmable period
• Measures Current and Voltage
• Adjustable CT ratio (1 to 600) and VT ratio (1 to 3000)
• Graphic Phase diagram with 3-Phase system parameters
• 3-phase Voltage or Current Unbalanced Ratio (VUR, VIR) and Unbalanced Factor (d0%, d2%)
• Calculated Unbalanced Current through Neutral Line (In)
• Capture 28 Transient events (including Dip, Swell and Outage) with programmable threshold (%)
• Datalogger records up to 52,428 records in single phase, 2 wire applications (17,476 in 3-phase 4-wire applications
• Optically isolated RS-232 interface with software to download Waveforms, Power Parameters and Harmonics
• CAT III-1000V, CE approved; 1yr warranty

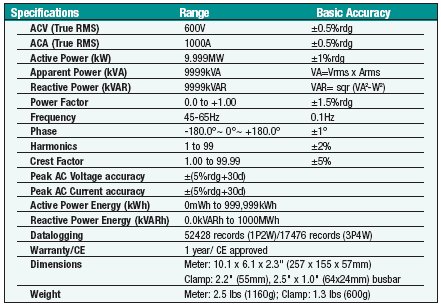

Specifications:
