Extech PQ3350 3-Phase Power & Harmonics Analyzer
Our Price: $2,699.00 (+$900.00)
Item Number: PQ3350
Configuration: -PQ3350-1
Manufacturer: Extech
Part Number: PQ3350
Product Options
* denotes required field
Additional Probe Selection
* Whole number only
|
|
Extech PQ3350 3-Phase Power & Harmonics Analyzer
Extech PQ3350 Features:

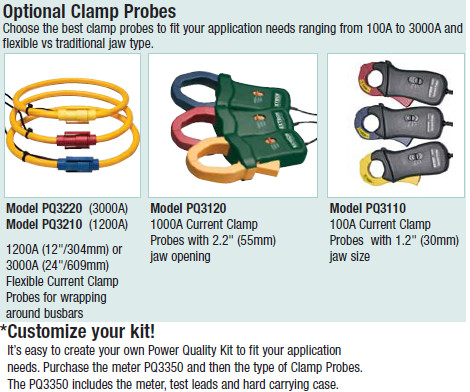

- 1200 or 3000 Amp Flexible current clamp probe kit (Optional Kit)
- Flexible clamp probes can be used for wrapping around bus bars and wire bundles
- Large backlighting LCD displays up to 35 parameters in one screen
- Clamp-on True RMS power measurements with on-screen Harmonics display

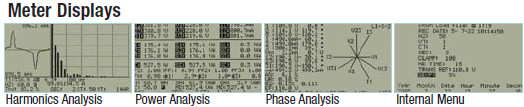

- Simultaneous display of Harmonics and Waveform
- Display of Waveform with Peak Values (1024 samples/period)
- Analysis of Total Harmonic Distortion (THD-F)
- Maximum Demand (MDkW, MW, kVA, MVA) with programmable period
- Adjustable CT ratio (1 to 600) and VT ratio (1 to 3000)
- Graphic Phase diagram with 3-Phase system parameters
- 3-phase Voltage or Current Unbalanced Ratio (VUR, VIR) and Unbalanced Factor (d0%, d2%)
- Calculated Unbalanced Current through Neutral Line (In)
- Capture 28 Transient events (including Dip, Swell and Outage) with programmable threshold (%)
- Optically isolated USB interface with software to download Waveforms, Power Parameters and Harmonics
- Meter Only Includes: Test leads & Case

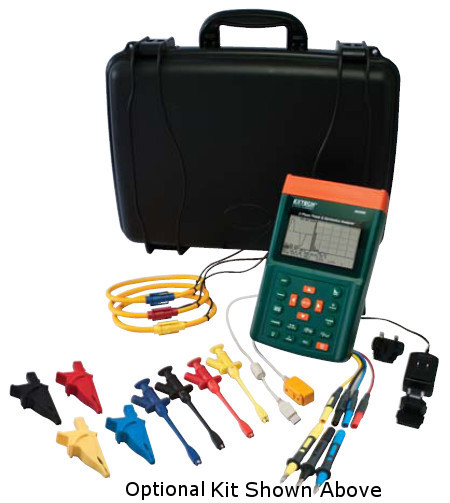

- Optional Kits Includes: (3) flexible current clamps, (4) voltage test leads with alligator clips and retractable plunger clips,
(8) AA batteries, universal AC adapter, software, USB interface cable, and case

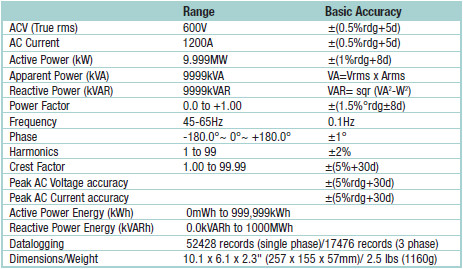

Extech PQ3350 Specifications:
|
