Pressure
>
Pressure Switch
>

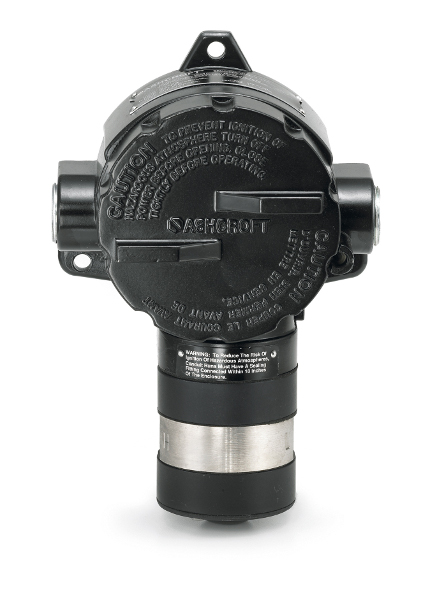

Ashcroft Type B(D) Series NEMA 7 Explosion Proof Enclosure Differential Pressure Switch
Ashcroft Type B(D) Series NEMA 7 Explosion Proof Enclosure Differential Pressure Switch
Our Price:
$571.03
Item Number:
D7
Manufacturer:
Ashcroft
Part Number:
D7
Product Options
* denotes required field
Switch Element Selection
*
Select ...
Narrow deadband - AC (+ $14.82)
Ammonia service (+ $20.88)
Hermetically sealed switch, narrow deadband - AC (+ $102.09)
Heavy duty - AC (+ $42.83)
General purpose - AC-DC
Sealed environment proof (+ $25.74)
High temperature 300°F (+ $15.90)
Manual reset trip on increasing (+ $48.78)
Manual reset trip on decreasing (+ $87.50)
Low level (gold) contacts (+ $43.81)
Hermetically sealed switch, general purpose - AC-DC (+ $102.09)
Hermetically sealed switch, gold contacts (+ $116.80)
Variable deadband (+ $32.99)
Dual Narrow Deadband (+ $79.06)
Dual Sealed Environment Proof (+ $105.77)
Dual High Temp 300°F Ambient (+ $87.50)
Dual General Purpose (+ $63.27)
Dual Ammonia Service (+ $99.07)
Dual Hermetically Sealed Switch, Narrow Deadband – AC (+ $236.85)
Dual Hermetically Sealed Switch, General Purpose – AC-DC (+ $236.85)
Dual Low Level (Gold) Contacts (+ $146.00)
Dual Hermetically Sealed Gold Contacts (+ $273.62)
You must select an option for 'Switch Element Selection'.
Actuator Seal Selection
*
Select ...
Buna-N – Included in Base (Enclosure) Price
Viton – psid Ranges (+ $24.44)
Viton – ˝H2O Differential Ranges (+ $66.84)
Teflon – psid Ranges (+ $36.55)
Teflon – ˝H2O Differential Ranges (+ $30.61)
Stainless Steel (+ $135.19)
You must select an option for 'Actuator Seal Selection'.
Pressure Connection Selection
*
Select ...
Standard – 1⁄4 NPT Female
1⁄2 NPT Male and 1⁄4 NPT Female (+ $73.01)
1⁄2 NPT Female – psi Ranges (+ $54.84)
You must select an option for 'Pressure Connection Selection'.
Range Selection
*
Select ...
30˝ H2O Diff.
60˝ H2O Diff.
100˝ H2O Diff.
150˝ H2O Diff.
15 psid (+ $42.83)
30 psid (+ $42.83)
60 psid (+ $42.83)
90 psid (+ $42.83)
100 psid (+ $42.83)
200 psid (+ $42.83)
400 psid (+ $42.83)
600 psid (+ $42.83)
You must select an option for 'Range Selection'.
Switch Options (psi & in. H2O)
Wall Mounting Bracket "H2O only (+ $18.50)
Chained Cover (psi) (+ $18.50)
Chained Cover ("H2O) (+ $18.50)
ATEX Approval on 700 Series (psi) (+ $73.01)
ATEX Approval on 700 Series ("H2O) (+ $73.01)
CSA Approval for Nema 7 enclosures (psi) (+ $30.61)
CSA Approval for Nema 7 enclosures ("H2O) (+ $30.61)
FM Approval (psi) (+ $21.74)
FM Approval ("H2O) (+ $21.74)
Fungus Proofing (psi) (+ $35.80)
Fungus Proofing ("H2O) (+ $35.80)
Factory Adjusted Setpoint – Single or Dual (psi) (+ $21.74)
Factory Adjusted Setpoint – Single or Dual ("H2O) (+ $21.74)
Gas/Oil UL Limit Control to 150˝ H2O (+ $24.44)
High Static Differential Press. Actuator (psi) (+ $487.76)
High Static Pressure Actuator for ˝H2O Ranges (+ $25.09)
3⁄4˝ NPTF Left Conduit Connection on 400 Series Enclosure (psi) (+ $12.33)
3⁄4˝ NPTF Left Conduit Connection on 400 Series Enclosure ("H2O) (+ $12.33)
3⁄4˝ to 1⁄2˝ Reducing Bushing (psi) (+ $6.39)
3⁄4˝ to 1⁄2˝ Reducing Bushing ("H2O) (+ $6.39)
Terminal Block – Single/Dual (psi) (+ $28.12)
Terminal Block – Single/Dual ("H2O) (+ $28.12)
6 foot Wired Leads (psi) (+ $21.96)
6 foot Wired Leads ("H2O) (+ $21.96)
Stainless Steel Tag (psi) (+ $13.74)
Stainless Steel Tag ("H2O) (+ $13.74)
Paper Tag (psi) (+ $3.36)
Paper Tag ("H2O) (+ $3.36)
Pilot Light(s) Top Mounted Single or Dual (psi) (+ $20.55)
Pilot Light(s) Top Mounted Single or Dual ("H2O) (+ $20.55)
Wire Leads Potted in Conduit Single or Dual (psi) (+ $57.43)
Wire Leads Potted in Conduit Single or Dual ("H2O) (+ $57.43)
1⁄4˝ NPTF 316 SS Pressure Conn. for "H2O Ranges (+ $54.84)
2˝ Pipe Mounting Bracket (psi) (+ $36.55)
2˝ Pipe Mounting Bracket ("H2O) (+ $36.55)
316 SS Pressure Connection (psi) (+ $97.23)
Pressure Connection: 1⁄2˝ NPTM, 1⁄4˝ NPTF (Combination) (316 SS) (psi) (+ $73.01)
Pressure Connection: 1⁄2˝ NPTM, 1⁄4˝ NPTF (Combination) (316 SS) ("H2O) (+ $36.55)
1⁄2˝ Female Pressure Conn. (316 SS) (psi) (+ $54.84)
1⁄2˝ Female Pressure Conn. (316 SS) ("H2O) (+ $54.84)
Cleaned for Oxygen Service (psi) (+ $50.08)
Metric Conduit Connection (psi) (+ $5.95)
Metric Conduit Connection ("H2O) (+ $5.95)
Quantity:
* Whole number only
Email this page to a friend
Ashcroft Type B(D) Series NEMA 7 Explosion Proof Enclosure Differential Pressure Switch
This broad Ashcroft® differential pressure switch series is ideal for use in virtually all process and industrial applications.
Features
Explosion-proof NEMA 7/9, IP66 enclosure (explosion-proof enclosure Class I, Div. 1 & 2, Groups B, C, & D and Class II, Div. 1 & 2, Groups E, F & G)
Choice of switch elements for all applications, including hermetically sealed
Wide choice of wetted materials, including all-welded Stainless Steel
Fixed or limited adjustable deadband
UL listed
Various actuators available
Readily available
Standard pressure connection materials:
Differential psid ranges - Nickel plated brass
Differential inches of water ranges- Epoxy coated carbon steel
ATEX models available
CSA models available
FM models available
Setpoints adjustable from 15-100% of range
IECEx models available
Dimensions

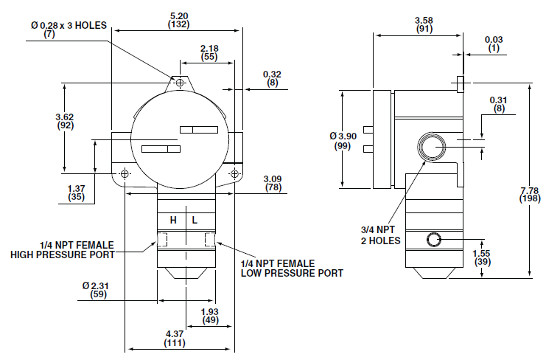

psid Differential Pressure Switch

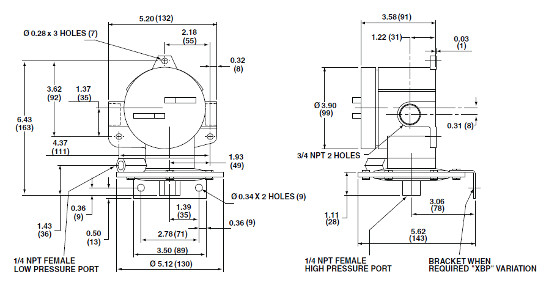

H2O Differential Pressure Switch
Ashcroft B(D) Series Data Sheet
