Pressure
>
Pressure Switch
>

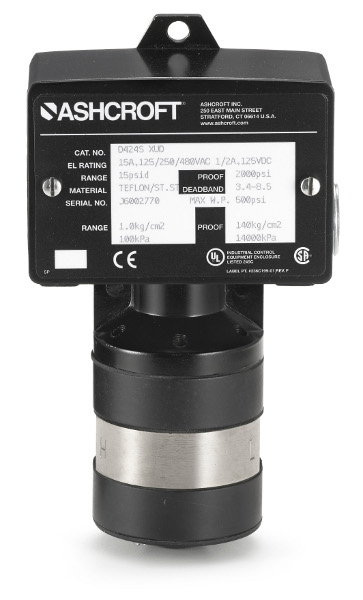

Ashcroft Type B(D) Series NEMA 4 Watertight Enclosure Differential Pressure Switch
Ashcroft Type B(D) Series NEMA 4 Watertight Enclosure Differential Pressure Switch
Our Price:
$364.47
Item Number:
D4
Manufacturer:
Ashcroft
Part Number:
D4
Product Options
* denotes required field
Switch Element Selection
*
Select ...
Narrow deadband - AC (+ $14.82)
Ammonia service (+ $20.88)
Hermetically sealed switch, narrow deadband - AC (+ $102.09)
Heavy duty - AC (+ $42.83)
General purpose - AC-DC
Sealed environment proof (+ $25.74)
High temperature 300°F (+ $15.90)
Manual reset trip on increasing (+ $48.78)
Manual reset trip on decreasing (+ $87.50)
Low level (gold) contacts (+ $43.81)
Hermetically sealed switch, general purpose - AC-DC (+ $102.09)
Hermetically sealed switch, gold contacts (+ $116.80)
Variable deadband (+ $32.99)
Dual Narrow Deadband (+ $79.06)
Dual Sealed Environment Proof (+ $105.77)
Dual High Temp 300°F Ambient (+ $87.50)
Dual General Purpose (+ $63.27)
Dual Ammonia Service (+ $99.07)
Dual Hermetically Sealed Switch, Narrow Deadband – AC (+ $236.85)
Dual Hermetically Sealed Switch, General Purpose – AC-DC (+ $236.85)
Dual Low Level (Gold) Contacts (+ $146.00)
Dual Hermetically Sealed Gold Contacts (+ $273.62)
You must select an option for 'Switch Element Selection'.
Actuator Seal Selection
*
Select ...
Buna-N – Included in Base (Enclosure) Price
Viton – psid Ranges (+ $24.44)
Viton – ˝H2O Differential Ranges (+ $66.84)
Teflon – psid Ranges (+ $36.55)
Teflon – ˝H2O Differential Ranges (+ $30.61)
Stainless Steel (+ $135.19)
You must select an option for 'Actuator Seal Selection'.
Pressure Connection Selection
*
Select ...
Standard – 1⁄4 NPT Female
1⁄2 NPT Male and 1⁄4 NPT Female (+ $73.01)
1⁄2 NPT Female – psi Ranges (+ $54.84)
You must select an option for 'Pressure Connection Selection'.
Range Selection
*
Select ...
30˝ H2O Diff.
60˝ H2O Diff.
100˝ H2O Diff.
150˝ H2O Diff.
15 psid (+ $42.83)
30 psid (+ $42.83)
60 psid (+ $42.83)
90 psid (+ $42.83)
100 psid (+ $42.83)
200 psid (+ $42.83)
400 psid (+ $42.83)
600 psid (+ $42.83)
You must select an option for 'Range Selection'.
Switch Options (psi & in. H2O)
Wall Mounting Bracket "H2O only (+ $18.50)
Chained Cover (psi) (+ $18.50)
Chained Cover ("H2O) (+ $18.50)
ATEX Approval on 700 Series (psi) (+ $73.01)
ATEX Approval on 700 Series ("H2O) (+ $73.01)
CSA Approval for Nema 7 enclosures (psi) (+ $30.61)
CSA Approval for Nema 7 enclosures ("H2O) (+ $30.61)
FM Approval (psi) (+ $21.74)
FM Approval ("H2O) (+ $21.74)
Fungus Proofing (psi) (+ $35.80)
Fungus Proofing ("H2O) (+ $35.80)
Factory Adjusted Setpoint – Single or Dual (psi) (+ $21.74)
Factory Adjusted Setpoint – Single or Dual ("H2O) (+ $21.74)
Gas/Oil UL Limit Control to 150˝ H2O (+ $24.44)
High Static Differential Press. Actuator (psi) (+ $487.76)
High Static Pressure Actuator for ˝H2O Ranges (+ $25.09)
3⁄4˝ NPTF Left Conduit Connection on 400 Series Enclosure (psi) (+ $12.33)
3⁄4˝ NPTF Left Conduit Connection on 400 Series Enclosure ("H2O) (+ $12.33)
3⁄4˝ to 1⁄2˝ Reducing Bushing (psi) (+ $6.39)
3⁄4˝ to 1⁄2˝ Reducing Bushing ("H2O) (+ $6.39)
Terminal Block – Single/Dual (psi) (+ $28.12)
Terminal Block – Single/Dual ("H2O) (+ $28.12)
6 foot Wired Leads (psi) (+ $21.96)
6 foot Wired Leads ("H2O) (+ $21.96)
Stainless Steel Tag (psi) (+ $13.74)
Stainless Steel Tag ("H2O) (+ $13.74)
Paper Tag (psi) (+ $3.36)
Paper Tag ("H2O) (+ $3.36)
Pilot Light(s) Top Mounted Single or Dual (psi) (+ $20.55)
Pilot Light(s) Top Mounted Single or Dual ("H2O) (+ $20.55)
Wire Leads Potted in Conduit Single or Dual (psi) (+ $57.43)
Wire Leads Potted in Conduit Single or Dual ("H2O) (+ $57.43)
1⁄4˝ NPTF 316 SS Pressure Conn. for "H2O Ranges (+ $54.84)
2˝ Pipe Mounting Bracket (psi) (+ $36.55)
2˝ Pipe Mounting Bracket ("H2O) (+ $36.55)
316 SS Pressure Connection (psi) (+ $97.23)
Pressure Connection: 1⁄2˝ NPTM, 1⁄4˝ NPTF (Combination) (316 SS) (psi) (+ $73.01)
Pressure Connection: 1⁄2˝ NPTM, 1⁄4˝ NPTF (Combination) (316 SS) ("H2O) (+ $36.55)
1⁄2˝ Female Pressure Conn. (316 SS) (psi) (+ $54.84)
1⁄2˝ Female Pressure Conn. (316 SS) ("H2O) (+ $54.84)
Cleaned for Oxygen Service (psi) (+ $50.08)
Metric Conduit Connection (psi) (+ $5.95)
Metric Conduit Connection ("H2O) (+ $5.95)
Quantity:
* Whole number only
Email this page to a friend
Ashcroft Type B(D) Series NEMA 4 Watertight Enclosure Differential Pressure Switch
The general purpose Ashcroft® differential pressure switch series is ideal for use in virtually all Industrial and OEM applications.
Features
Watertight NEMA 4X enclosure, IP66
Choice of switch elements for all applications, including hermetically sealed
Wide choice of wetted materials, including all-welded Monel or Stainless Steel
Fixed or limited adjustable deadband
Approved for UL, CSA and FM ratings
Setpoints adjustable from 15-100% of range
Choice of actuators, including designs for fire-safe and NACE applications
Readily available
Standard pressure connection materials:
Differential psid ranges - Nickel-plated brass
Differential inches of water - Epoxy coated carbon steel
Dimensions

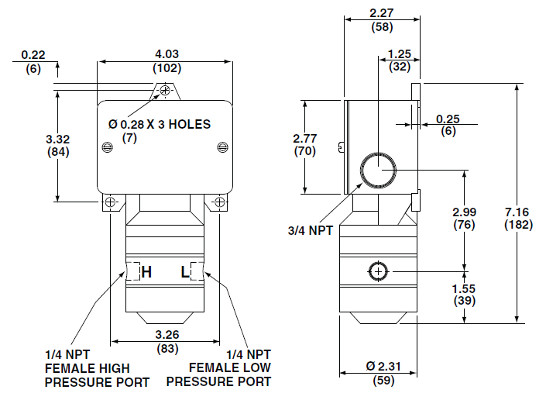

psid Differential Pressure Switch

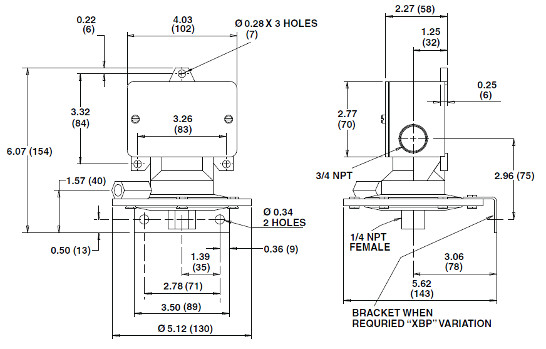

H2O Differential Pressure Switch
Ashcroft B(D) Series Data Sheet
