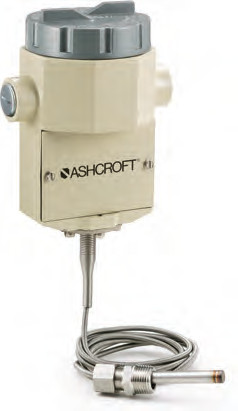

Ashcroft P-Series Watertight & Explosion Proof Enclosure Temperature Switch
|
Item Number: PT
Manufacturer: Ashcroft
Part Number: PT
Product Options
* denotes required field
Enclosure/Function Selection*
You must select an option for 'Enclosure/Function Selection'.
Switch Element Selection*
You must select an option for 'Switch Element Selection'.
Thermal System Selection*
You must select an option for ' Thermal System Selection'.
Nominal Temperature Range Selection*
You must select an option for 'Nominal Temperature Range Selection'.
* Whole number only
|
|
Ashcroft P-Series Watertight & Explosion Proof Enclosure Temperature Switch
This top-of-the-line Ashcroft® process switch series includes many state-of-the-art features for safety and reliability in virtually all process applications.
Features
- Die cast aluminum enclosure is standard with NEMA 4X (weather-proof, corrosion resistant) NEMA 7/9, IP55 explosion- proof enclosure (Class I, Div. 1 & 2, Groups B, C & D and Class II, Div. 1 & 2, Groups E, F & G).
- Single or dual independently adjustable setpoints meet all setpoint requirements
- UL, CSA listed
- Dual-chamber design for improved safety. Choice of switch elements for all applications, including hermetically sealed
- Fixed or fully adjustable deadband
- Setpoints adjustable from 15-100% of range

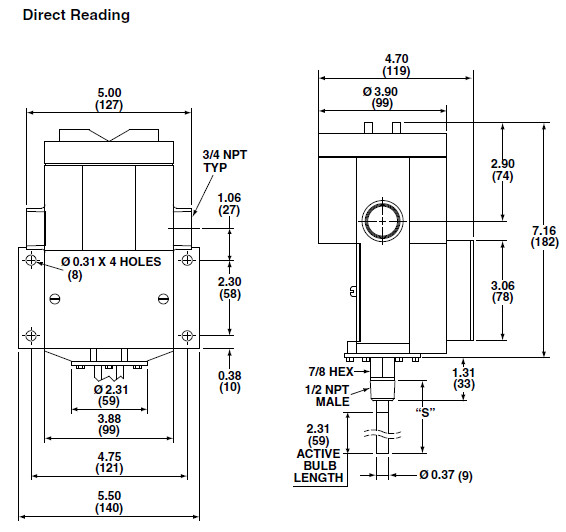

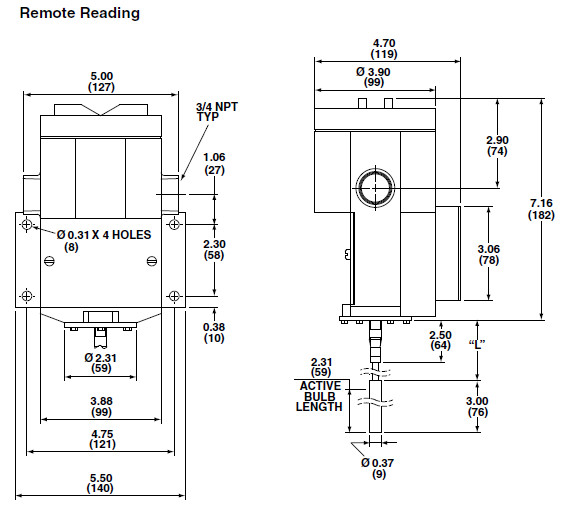

Dimensions
|
Ashcroft P-Series Nema 7 Watertight & Explosion Proof Enclosure Pressure Switch ranges from -30"Hg to 3000 psi.
|
Ashcroft P-Series Nema 7 Watertight & Explosion Proof Enclosure Differential Pressure Switch ranges from 30"H2O Diff. to 400 psid.
|
