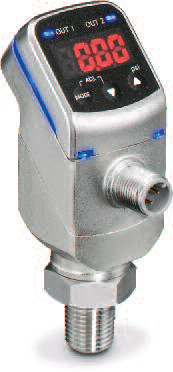

Ashcroft GC35 Digital Pressure Sensor

     Available in gauge pressure from 0-50 to 0-7500 psi and compound ranges up to 300 psi and vacuum, this versatile sensor includes a min./max. hold feature to record high and low pressure events, and adjustment for controlling display rates.  A rugged aluminum IP65/IP67 enclosure allows for a compact footprint and incorporates a highly visible LED display for local indication.  Analog scaling allows the user to configure the unit to any range within the full scale of the sensor range, while integrated switches offer the actuation and deadband to any points within the full scale range.

• Combined Three-in-One Digital Pressure Gauge, Switch and Transducer
•  High overpressure capability

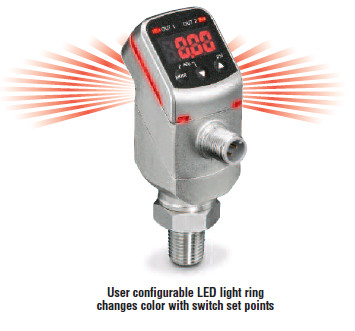

• Unique high-visibility LED display and switch warning light functions
• GloBand™ display with 360 degree visibility
• All stainless steel wetted materials
• Simple "push-button" configurability allows user to adjust switch settings, analog scaling
• Numerous standard ranges available
• Rugged Aluminum housing

Hydraulic presses/stamping equipment/lifts, water/wastewater pressure control, pressure monitoring, water/refrigerant or ammonia based cooling systems, pressure monitoring on lubrication systems.





Technical Specifications

PRODUCT SPECIFICATIONS
Analog Output (4-20mA):
Accuracy: ± 1.0% FS (Accuracy includes the effects
of linearity, hysteresis, repeatability, zero offset and
span setting errors)
Response Time: 30msec–10sec (by user)
Output Resolution: ±0.05% FS
Analog Scaling: User may configure analog output
scaling to any range within −100 to +150% Full
Scale of the sensor range
Pressure Switch Output:
Type: NPN or PNP open collector up to 80ma
Setting Accuracy: ± 1.0% FS
Response Time: 5msec – 10.0 sec (by user)
Hysteresis: Variable (by user)
Switch Setting: User may adjust switch actuation &
deadband to any points within Full Scale sensor range
Display:
Type: 4 digit, 8mm LED
Accuracy: ± 1.0% FS (URL) + last digit
Display Update Rate: 200msec−10.0 sec (by user)
Display Setting: User may re-configure display
scaling, set to capture MIN or MAX value and adjust
display update rate
Standard Ranges (Gauge):
0 to 50 psig, 100 psig, 150 psig, 300 psig,
500 psig, 1000 psig, 1500 psig, 3000 psig,
5000 psig, 7500 psig
Standard Ranges (Compound):
-15 to 75 psig, -15 to 150 psig -15 to 300 psig,

ENVIRONMENTAL SPECIFICATIONS
Temperature Limits:
Storage: -20 to 70°C (-4 to 158°F)
Operating: -20 to 70°C (-4 to 158°F)
Compensated: -20 to 70°C (-4 to 158°F)
Temperature Effects:
Zero/Span: ±0.1%FS/°C (from 23°C reference temp.)
Humidity: 0-85% RH (Ranges 150 psi & below)
                 0-100% RH (Ranges 300 psi & above)

FUNCTIONAL SPECIFICATIONS
Proof Pressure 4X Range (ranges 1500 psi & below)
                   2.5X Range (ranges 3000 psi & above)
Burst Pressure: 10X Range (ranges 1500 psi & below)
                       5X Range (ranges 3000 psi & below)
                       3X Range (ranges 5000 psi & above)
Withstand Voltage: 350Vac 1 minute
Insulation Voltage: 50 Vdc 100M
min
CE Compliance: EN61326-1: 2006, EN61326-2-3: 2006
EU RoHS Compliance
Stability: ±0.25% FS/year

ELECTRICAL SPECIFICATIONS
Power Supply Requirements:
Supply Voltage: 16-36Vdc (with analog output option)
                       11-36Vdc (switch output version only)
Current Consumption: 50mAdc max
Switch Contacts:
User selectable NPN or PNP open collector outputs
  NPN Type: 30Vdc / 80mA (max)
  PNP Type: Supply Voltage 80mA (max)
                  Voltage Drop 1Vdc (max)

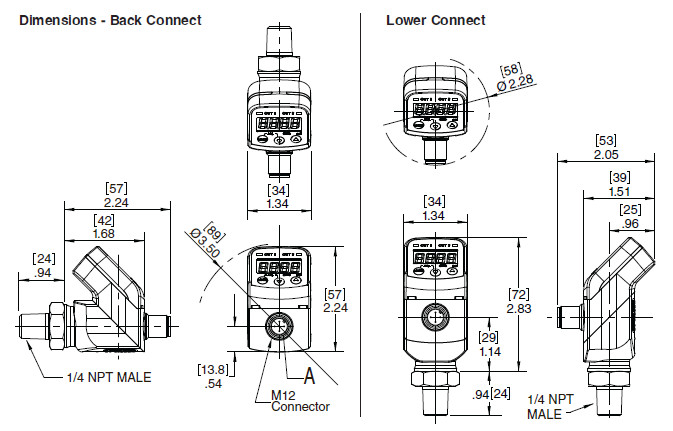

MECHANICAL SPECIFICATIONS
Pressure Connection: 1⁄4 NPT (Male)
Connection Location: Lower, back
Enclosure: Nickel plated aluminum
Rating: IP65 (ranges 150 psi and below)
             IP67 (ranges 300 psi and above)
Electrical Connection: M12 connector (4 pin)
Weight: Approx. 150 grams
Media: Fluids and gases compatible with 316SS
(sensor housing) and 17-4 pH SS (sensor diaphragm)

Ashcroft GC35 Data Sheet
