Ashcroft AM2-2 Absolute Pressure Module
|
Item Number: AM2-2
Manufacturer: Ashcroft
Part Number: AM2-2
Product Options
* denotes required field
Accuracy Selection*
You must select an option for 'Accuracy Selection'.
Range Selection (all ranges include 316SS isolation)*
You must select an option for 'Range Selection (all ranges include 316SS isolation)'.
* Whole number only
|
|

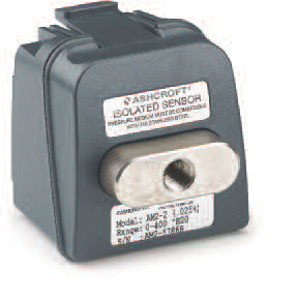

Ashcroft AM2-2 Absolute Pressure Module
The Ashcroft AM2-1 low pressure module and AM2-2 medium/high pressure module are interchangeable sensor modules for the Ashcroft ATE-2 digital calibrator.
The AM2-2 ranges from 5 to 10,000 psi and the accuracies is from ±0.025% to ±0.1% of span. With an optional enhanced accuracy temperature errors are eliminated.
Features
- Hot Swap
- Accuracies from 0.025% to 0.1%
- Medium/High Pressure Ranges
from 5 psi up to 10,000 psi
- Gauge, Absolute, Vacuum and Compound Ranges
Technical SpecificationsAM2-2 MEDIUM/HIGH PRESSURE MODULEPressure Types:Gauge, absolute, compound and vacuumAvailable Ranges:Refer to Range TableAvailable Accuracies:±0.025%, 0.05% or 0.1% of Span (10,000 psionly offered in psig and 0.1% accuracy)Compensated Temperature Range:20 to 120°F (–7 to 49°C)Temperature Effect:Standard:±0.004% of Span per °F over compensatedrange from reference temperature range of 70°F(±3 degrees)Optional:Enhanced Accuracy Option.No additional error due to ambient temperaturefrom +20°F to +120°FSensitivity:±0.002% of Span (typical), ±0.001 span (max)Repeatability:±0.01% of SpanMedia Compatibility:Any medium compatible with 316 SS isolation;10,000 psi range only available with17-4 PH / 316 SSOptional:Cleaned for Oxygen ServiceOverpressure Compatibility:200% for ranges to 1000 psi150% for ranges > 1000 psiProcess Connection:Standard: 1⁄8 Female NPTOptional: 1⁄8 Female NPT with Flush PortOptional: Welded VCR Fitting withStandard Finish (up to 5000 psi)  Modules shown with optional ATE-2 Meter (Meter Not Included)
|
The Ashcroft AM2-2 gauge pressure module ranges from 5 to 10,000 psi and the accuracies is from ±0.025% to ±0.1% of span.
|
The Ashcroft AM2-2 inches water pressure module ranges from 100 to 1000 inches water.
|
Ashcroft AM2-1 ranges from 0.25 to 200 inches H20 and the accuracies is from ±0.1% to ±0.06% of span.
|
The Ashcroft AM2-1 low pressure compound module ranges from 0.25 to 200 inches H20 and the accuracies available are from ±0.1% to ±0.06% of span. The AM2 is compatible with the Ashcroft ATE-2 pressure calibrator.
|
The Ashcroft AM2-2 compound pressure module ranges from 5 to -15/60 psi and 100 to 400 inches water.
|
The Ashcroft AM2-2 vacuum pressure module ranges from 10 to 15 psi and the accuracies is from ±0.025% to ±0.1% of span.
|
Ashcroft ATE-2 pressure calibrator can be expanded with pressure modules ranging from 0.25" water to 10,000 PSIG. The ATE2 includes data logging, loop power supply, loop read back, pressure switch test, rtd and thermocouple readout.
| |
