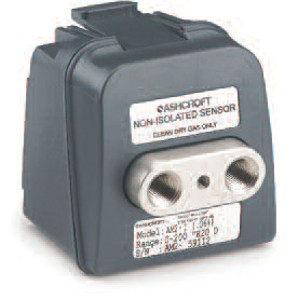

Ashcroft AM2-1 Low Pressure Gauge & Differential Module
|
Item Number: AM2-1
Manufacturer: Ashcroft
Part Number: AM2-1
Product Options
* denotes required field
Accuracy Selection*
You must select an option for 'Accuracy Selection'.
Pressure Range Selection (Inches of Water)*
You must select an option for 'Pressure Range Selection (Inches of Water)'.
* Whole number only
|
|
Ashcroft AM2-1 Low Pressure Gauge & Differential Module
The Ashcroft AM2-1 low pressure module and AM2-2 medium/high pressure module are interchangeable sensor modules for the Ashcroft ATE-2 digital calibrator.
The AM2-1 ranges from 0.25 to 200 inches H20 and the accuracies is from ±0.1% to ±0.06% of span. The AM2-1 sensor is really tough and it can withstand compelling overpressure, shock, and vibration without huge errors or calibration offset.
Features
- Hot Swap
- Accuracies from 0.07% to 0.1%
- Low Pressure Ranges from ±0.25
InH2O to 200 InH2O
- Gauge, Compound and Differential Ranges
Technical SpecificationsAM2-1 LOW PRESSURE MODULEPressure Types:Gauge, differential and compoundAvailable Ranges:Refer to Range TableAvailable Accuracies:±0.06 (0/1-0/200 in.H20),±-0.07 (0/0.25-0/0.5 in.H20), or 0.1% of Span
Compensated Temperature Range:20 to 120°F (-7 to 49°C)Temperature Effect:± 0.004% of Span per °F over compensated
range from reference temperature range of
70°F (±3 degrees)Repeatability:± 0.01% of Span (range 0/1 in.H20 or higher)± 0.02% of Span (range below 1.0 in.H20)
Sensitivity:±0.002% of Span (typical)Media Compatibility:Clean, dry, non-conductive, non-corrosive gas
Under / Overpressure Capability:—15 to 50 psi
Maximum Static (line) Pressure:100 psi
Process Connection:Standard 1/8 NPT Female  Modules shown with optional ATE-2 Meter (Meter Not Included)
|
The Ashcroft AM2-2 gauge pressure module ranges from 5 to 10,000 psi and the accuracies is from ±0.025% to ±0.1% of span.
|
The Ashcroft AM2-2 inches water pressure module ranges from 100 to 1000 inches water.
|
The Ashcroft AM2-1 low pressure compound module ranges from 0.25 to 200 inches H20 and the accuracies available are from ±0.1% to ±0.06% of span. The AM2 is compatible with the Ashcroft ATE-2 pressure calibrator.
|
The Ashcroft AM2-2 compound pressure module ranges from 5 to -15/60 psi and 100 to 400 inches water.
|
The Ashcroft AM2-2 vacuum pressure module ranges from 10 to 15 psi and the accuracies is from ±0.025% to ±0.1% of span.
|
The Ashcroft AM2-2 absolute pressure module ranges from 5 to 10,000 psi and the accuracies is from ±0.025% to ±0.1% of span.
|
Ashcroft ATE-2 pressure calibrator can be expanded with pressure modules ranging from 0.25" water to 10,000 PSIG. The ATE2 includes data logging, loop power supply, loop read back, pressure switch test, rtd and thermocouple readout.
| |
