Ashcroft 1327CM Hydraulic Pressure Gauge Comparator
|
Item Number: 1327CM
Manufacturer: Ashcroft
Part Number: 1327CM
Product Options
* denotes required field
Ashcroft 1327CM Media Designation Selection*
You must select an option for 'Ashcroft 1327CM Media Designation Selection'.
Ashcroft 1327CM PSI Range Selection (Gauge 1)*
You must select an option for 'Ashcroft 1327CM PSI Range Selection (Gauge 1)'.
Ashcroft 1327CM PSI Range Selection (Gauge 2)
Ashcroft 1327CM PSI Range Selection (Gauge 3)
* Whole number only
|
|
Ashcroft 1327CM Hydraulic Pressure Gauge Comparator

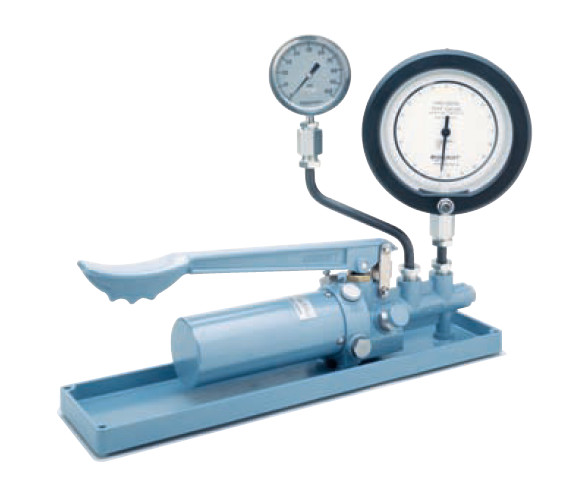

The Ashcroft® Type 1327CM is a precision gauge comparator which is provided with 6-inch Ashcroft® ±0.1% F.S. accuracy Type A4A gauges. The gauges provided include temperature compensation which maintains the ±0.1% F.S. accuracy over an operating range of -25°F to +125°F. Available ranges include 30, 100, 500, 1,000, 5,000 and 10,000 psi.
Features
- Operating Pressure: 0-10,000 psi (maximum) (0-70,000 kPa)
- Operating Media;
-
- Standard: SAE 20 weight automotive or machine oil
- Optional: Phosphate-based or glycol fluids; distilled water for oxygen service
- O-ring Material:
-
- Standard: Buna N (D series)
- Optional: Ethylene Propylene (DH series)
- Reservoir Volume: Approximately 1.5 pints (0.7 liter)
APPLICATION
- For pressure generation applications requiring a manually operated hydraulic pump

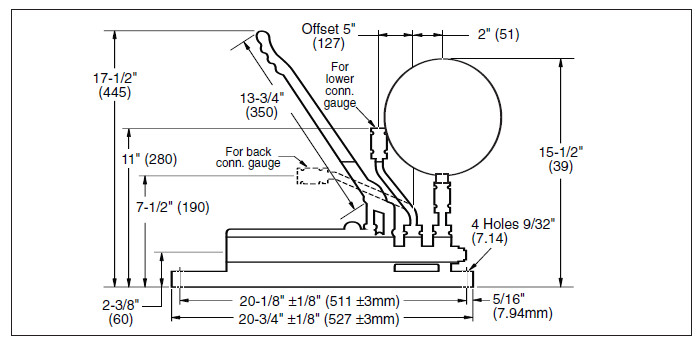

Dimensions
Technical Specification
Accuracy: 0.1% of gauge span
Gauges: Ashcroft Model A4A, 6˝, ASME B40.1,
Grade 4A, temperature compensated
Bourdon tube material – 403SS or
Beryllium Copper (depending on range)
Gauge ranges – (see table)
Operating
Pressure: 0 to 10,000 psi maximum
(0 to 70,000 kPa)
Reservoir
Volume: Approximately 1.5 pints (0.7 liter)
Pump Body
Material: Aluminum alloy
Operating
Fluid: 1327CMS – SAE 20 automotive or
machine oil
1327CMH – Phosphate or glycol base
hydraulic fluids
1327CMO – Distilled water (with
sodium molybdate and phosphoric
acid additives recommended as
corrosion inhibitors)
O-Ring
Seals: Standard (1327CMS and 1327CMO) –
Buna-N
Optional (1327CMH) – Ethylene
Propylene
Accessories: Metal carrying and storage box
Lower connection offset pipe assembly
Back connection pipe
Gauge pipe extension assembly
1⁄4 & 1⁄2 NPT Female adapters
Wrench (1˝x11⁄8˝)
Wrench (7⁄8˝x1˝)
Wrench (5⁄8˝)
Pointer puller set
Installation and Operation Manual
Spare O-ring kit
Certification: Standard – NIST traceability document
provided for each gauge
Carrying Case
Dimensions: 10 x 103⁄4 x 221⁄2 (inches)
|
