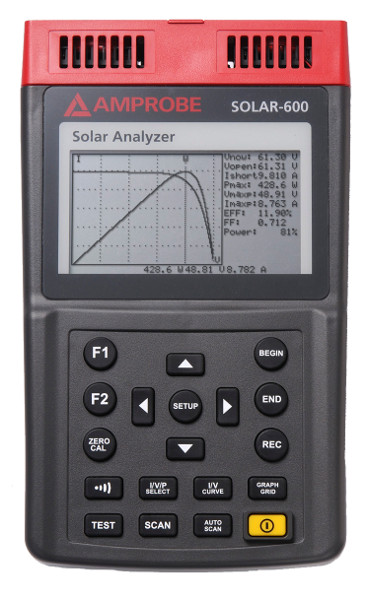

Amprobe SOLAR-600 Solar Power Analyzer

Professional analyzer for testing, maintenance, troubleshooting and efficiency of solar panels. The analyzer is used in the installation of solar panels to determine the proper inverter size, optimum power output position of panels and identifies broken or worn-out cells.

• I-V Curve test for solar cell
• Maximum solar power (Pmax) search by auto-scan (60V, 12A)
• Maximum voltage (Vmaxp) at Pmax
• Maximum current (Imaxp) at Pmax
• Voltage at open circuit (Vopen)
• Current at short circuit (Ishort)
• I-V curve with cursor
• Calculation of panel efficiency (%)
• Manual single point test
• Real time data logging
• PC download

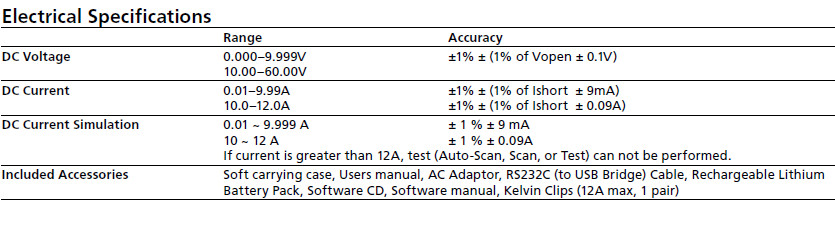

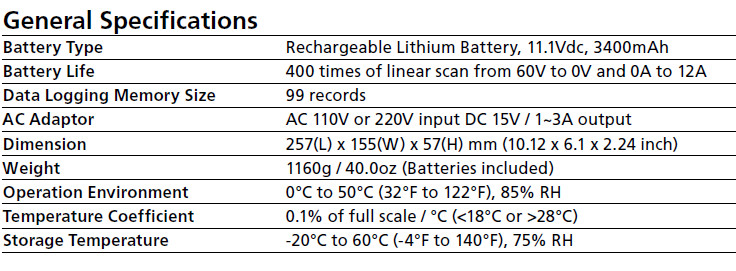

Technical Specifications

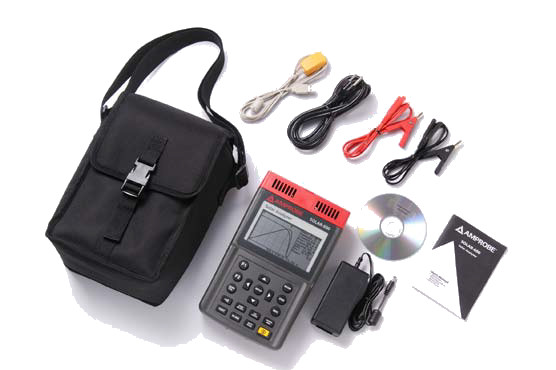

Included Accessories:

Users manual, rechargeable battery pack (installed), ac adapter, USB cable and software CD, test leads, carrying case

Amprobe SOLAR-600 Data Sheet
