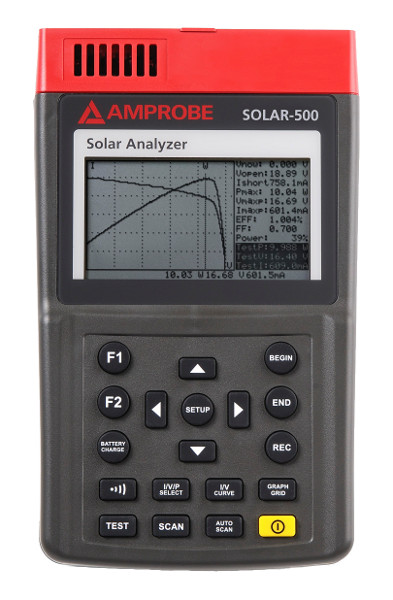

Amprobe SOLAR-500 Solar Power Analyzer

Professional analyzer for testing, maintenance, troubleshooting and efficiency of solar panels. The analyzer is used in the installation of solar panels to determine the proper inverter size, optimum power output position of panels and identifies broken or worn-out cells.

• I-V Curve test for solar cell
• Maximum solar power (Pmax) search by auto-scan (60V, 6A)
• Maximum voltage (Vmaxp) at Pmax
• Maximum current (Imaxp) at Pmax
• Voltage at open circuit (Vopen)
• Current at short circuit (Ishort)
• I-V curve with cursor
• Calculation of panel efficiency (%)
• Manual single point test
• Users manual, software manual, 1.2V AA rechargeable batteries, AC adaptor, RS232C (to USB bridge) cable, software CD, Kelvin clips (6A max)

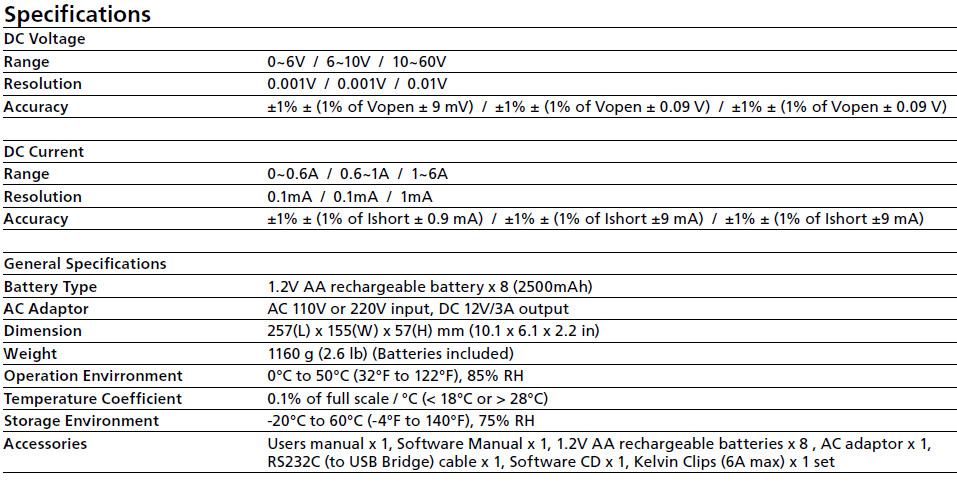

Technical Specifications




Included Accessories:

Users manual, rechargeable batteries(installed),ac adapter, test leads,carrying case,USB cable,and software CD

Amprobe SOLAR-500 Data Sheet
