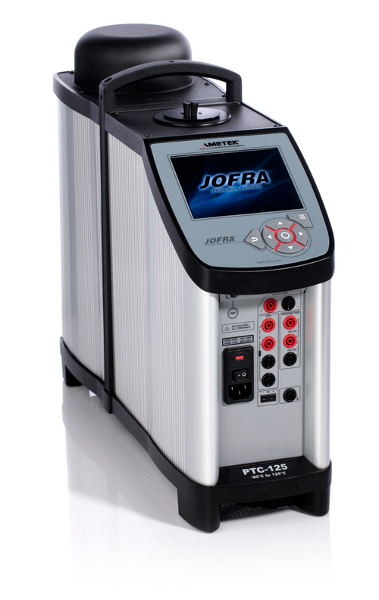

Ametek JOFRA PTC-125 Dry Block Calibrator

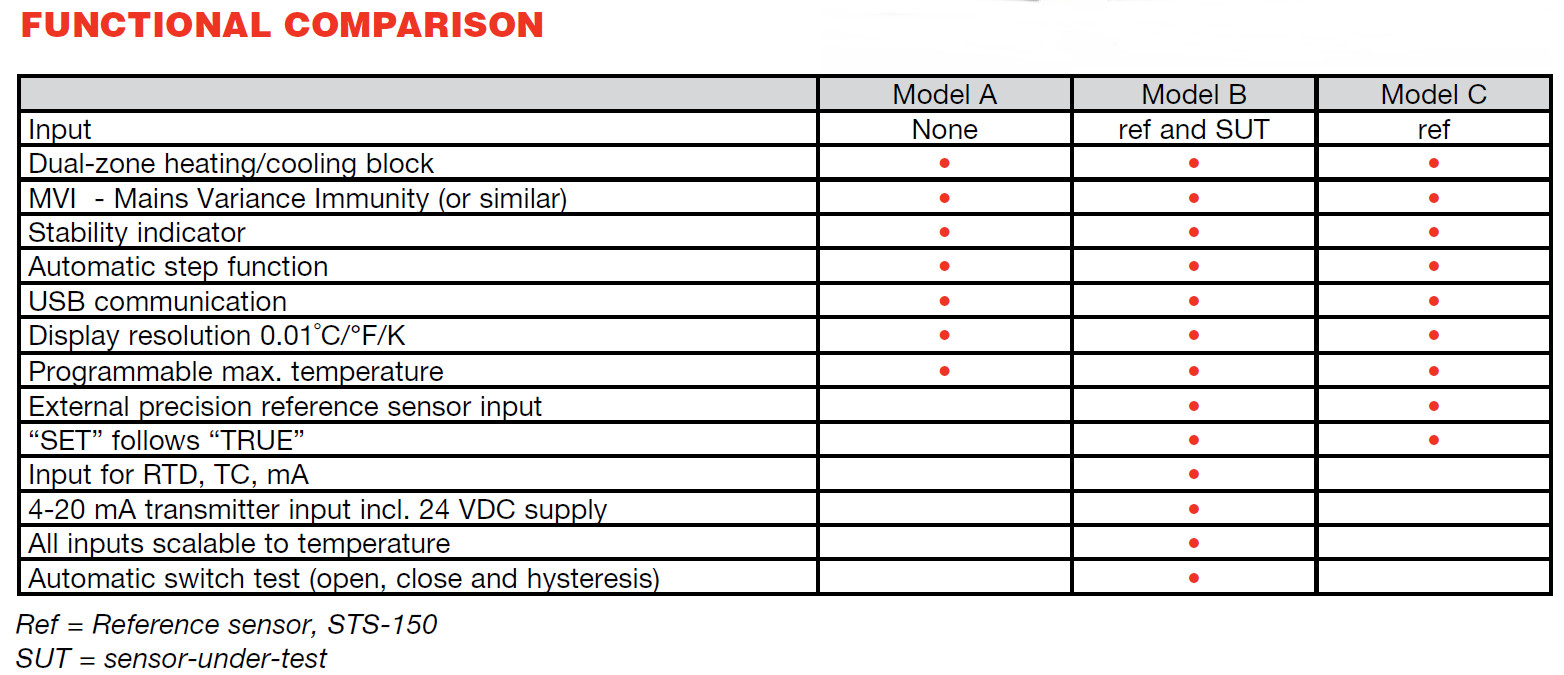

• Model A - basic model, without input
• Model B - full model, with DLC sensor input and input for reference sensor and sensor-under-test
• Model C - middle model with DLC sensor input and input for reference sensor

The PTC offers many of the well-known JOFRA features, such as:

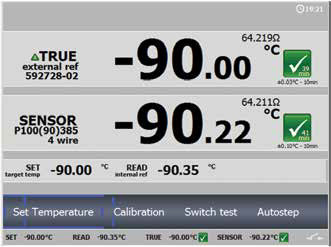

• Easy-to-read color VGA display with perfect overview of the actual calibration status
• Intelligent recalibration information, IRI
• Intuitive, fast and user-friendly navigation
• Lightweight and easy to carry around
• Functional carrying case
• Multi-hole insert kits covering all the most used sensor sizes
• High profile design and the well-known long lasting JOFRA quality

• Relevant for many applications

With its wide temperature reach, the PTC-125 can be used in many
applications where either high heat or low cooling is needed

• User friendly

Intuitive to use and easy to run, the PTC-125 is equipped with a large
informative, easy-to-read color display, which makes reading error a
thing of the past

• Ergonomically correct

Lightweight and easy-to-carry, the PTC-125 is easy to move from job
to job

• Mechanically stable

With its high-tech design the PTC-125 ensures durability and lasting
quality


Features

• Great temperature homogeneity
• Wide temperature range
• Fastest temperature calibration
• Intelligent reference sensor communication
• Intelligent recalibration information (IRI)
• USB connector for communication
• Efficient cooling technology
• Easy to read & user friendly
• Easy to carry
• SET-Follows-TRUE (Models B & C only)
• Reading of sensor-under-test (Model B only)
• Switch test (Model B only)
• Auto stepping
• Instrument setups
• Maximum and minimum temperatures
• Enhanced stability
• Specially-designed carrying case

Optional Features

• Unique reference sensors
• Increased capacity with JOFRA ASM
• Sensor support rod
• Multi-hole insert kits
• Optional PTC firmware package, U1 (B model only)
• Documenting temperature calibrator (B model only)

• As found/As left (B model only)

On the B model you can, when running a calibration initiated
from a work order, select the calibration as an As
Found or an As Left calibration.

• Calibration of indication devices (B model only)

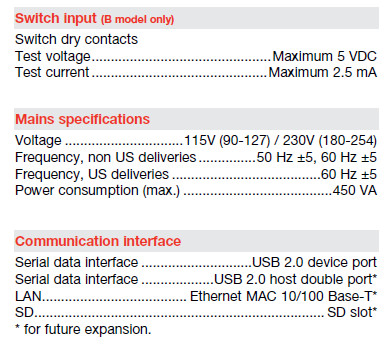

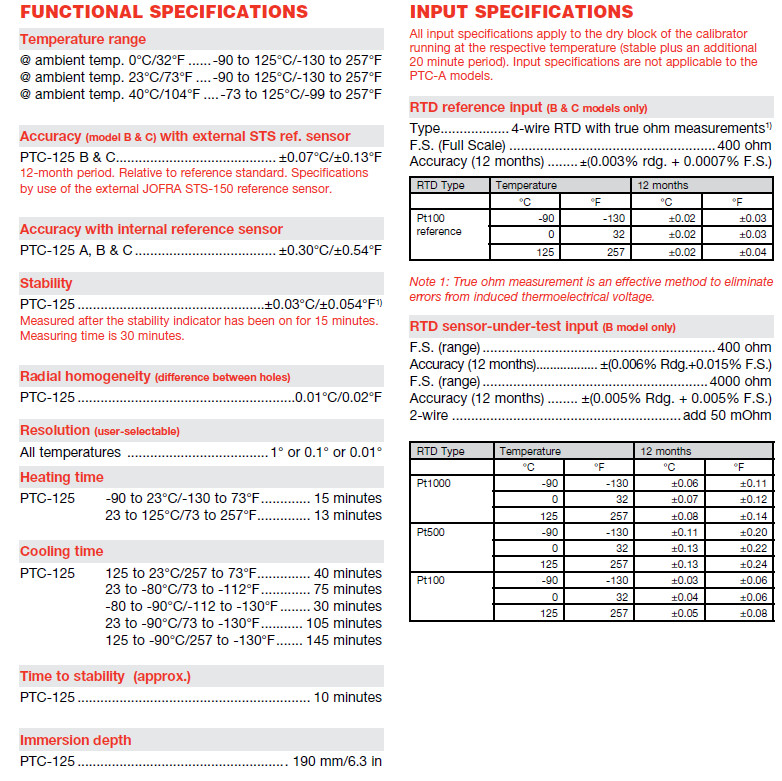

Technical Specifications

Ametek JOFRA PTC-125 Data Sheet
