Ametek JOFRA ASM - Advanced Signal Multi-scanner

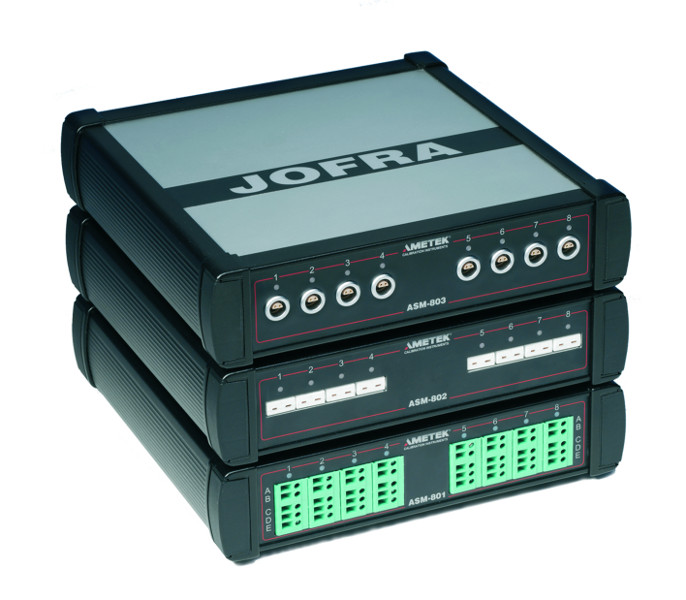

    The ASM series (Advanced Signal Multi-scanner) offer a great time-saving automatic solution to calibrate multiple temperature sensors at the same time. The ASM series is an eight channel scanner controlled by JOFRACAL software on a PC. Up to 3 ASM units can be stacked to calibrate up to 24 sensors at the same time. It can handle signals from 2-, 3- and 4 wire RTD’s, TC’s, transmitters, thermisters, temperature switches and voltage.

    The ASM800 series is designed for use in all companies where temperature measurement is critical and/or there is a need to make traceable documents for the calibration. Easy, flexible and time-saving! The ASM signal multi-scanner may be combined with any of your existing JOFRA dry-block or liquid bath calibrators. You can also use your JOFRA DTI reference thermometer or even the JOFRA ASC300 signal calibrator, which adds further value to your existing JOFRA equipment.

Models
     The ASM multi-scanner is made in an A and a B model. The ASM B model is the complete solution with integrated scan-ner and high accuracy multi signal measuring circuits. The ASM A model is less expensive and is designed to add 8 channel scanning capabilities to an existing instrument. The A model therefore needs the measuring capabilities from a JOFRA dry-block ATC B model, JOFRA ASC300 signal calibrator, DTI-1000 reference thermometer or an ASM B model.

Applications
     The ASM800 will fit into a lot of process industries and especially pharmaceutical, oil & gas and power plants. Original equipment manufacturers (OEM) will also benefit from calibrating and documenting multiple temperature sensors before final installation.

Features

Calibrate 24 temperature sensors

Design your own calibration procedures -
start calibrating and leave for other tasks.
Save precious time and calibrate all sensors
under exactly the same conditions

Data-logging for multiple sensors

Software for data logging of up to
24 sensors with user-defined interval

Prepared for future expansions

8 more channels for every ASM-800. Expand
the system when required and save the
investment until it is necessary

Calibrate any temperature sensor

Universal input to handle: 2-, 3-, 4-wire
RTD’s, TC’s, transmitters, thermistors,
thermo switches and voltage

Integrate with JOFRA instruments

Combine ASM with any JOFRA dry-block,
DTI reference thermometer or ASC300 signal
calibrator. Adds value to your existing JOFRA
equipment

Reference sensor input included

Dedicate one input channel for your
temperature reference sensor with an
accuracy to 0.026°C / 0.047°F

Reduce the human factor uncertainty

Automatic procedures leave no space for
operation errors

Documentation made easy

RS232 communication and JOFRACAL calibration
software are included in the standard delivery

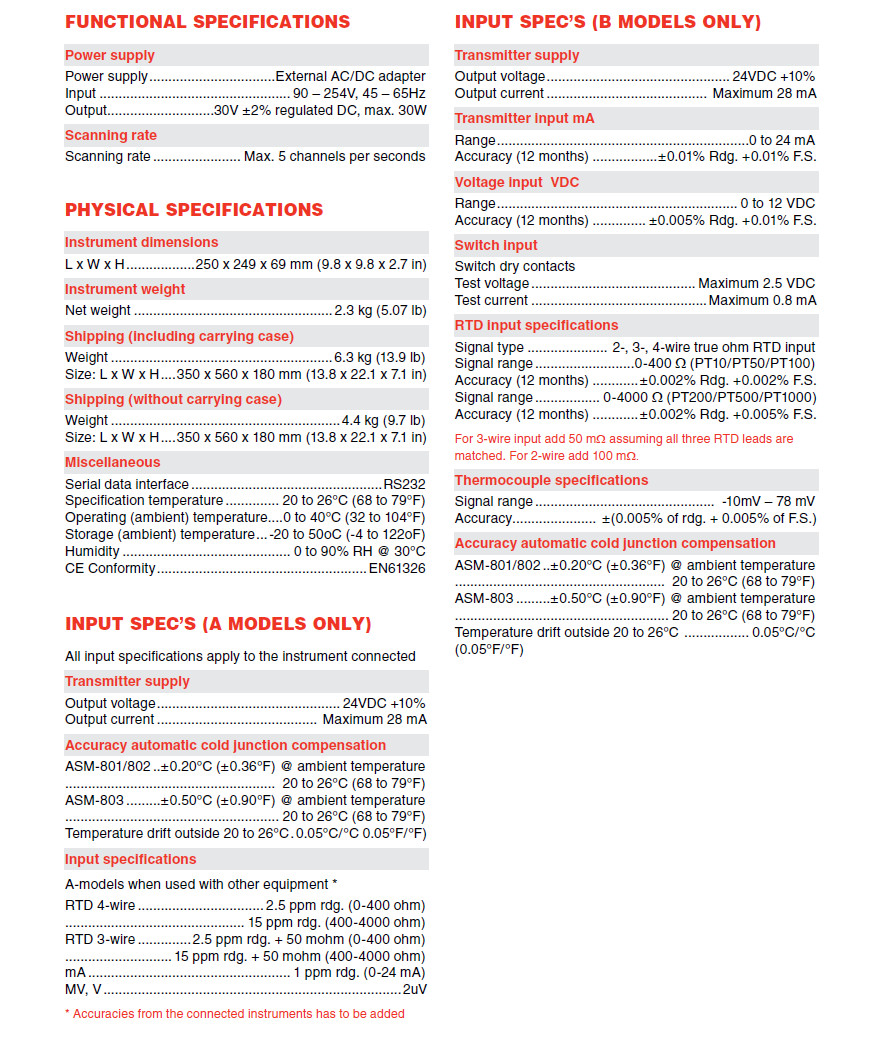

Technical Specification

Ametek ASM Data Sheet
