AEMC OX 7104-C Kit Oscilloscope

AEMC OX 7104-C Kit Oscilloscope

Ease-of-use of the instrument is facilitated through 33 specialized keys for direct access to commonly used functions. Ideal for field use, the Oscilloscope Model OX 7104-C utilizes the patented new system of plug-and-play accessories, individual isolation of each of the measurement channels, a range of remote management capabilities based on an Ethernet link with web server, a number of built-in instruments, including a four channel TRMS multimeter.

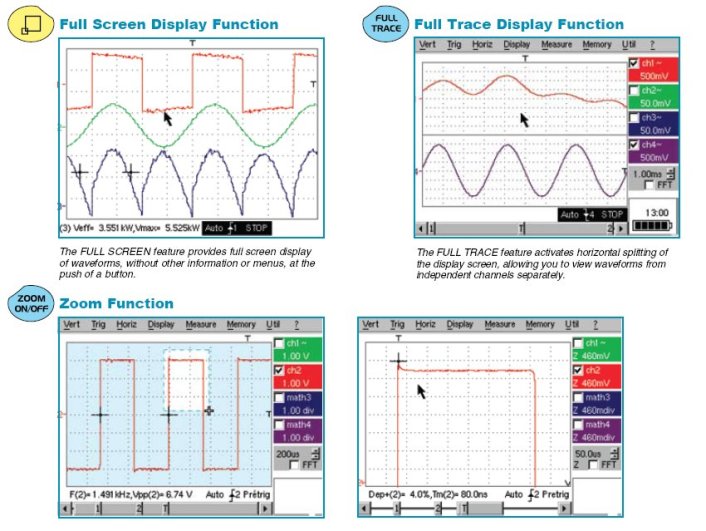

The large 320 x 240 full color LCD screen provides detailed graphical and alphanumerical representations of all measurements and also functions as a touch screen. Using the convenient stylus, the various “Windows-like” menus can be opened or pulled down and executed. The stylus can also be used for direct action on graphic elements such as cursors, triggers, zooming, etc.

Features:

• Isolated inputs; 600Vac, 850Vdc to ground and channel-to-channel
• Five complementary tools in one:
  Oscilloscope
  Multimeter
  FFT Analyzer
  Harmonic Analyzer
  Recorder
• Sampling rate 1GS/s in one-shot mode and 25GS/s in ETS — memory depth of 2.5k per channel in “oscilloscope” mode
• Four isolated measurement channels, 600V Cat III with up to eight traces on screen
• 12-bit resolution provides deeper accurate zooming
• Real-time FFT analysis standard and calculation functions on the channels
• Four independent, 4000-count, TRMS, 45kHz, digital multimeters
• Color LCD touch screen
• 33 direct command keys and “Windows-like” menus on screen
• Multi-interface communication connector: RS-232, Centronics and Ethernet with web server
• Stylus for touch screen menu/function access and manipulating graphic elements on screen

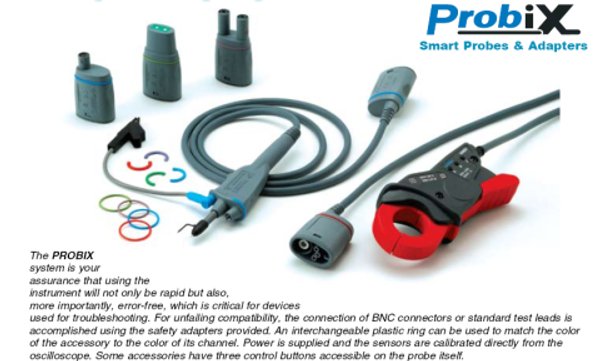

• Probix smart probes with user definable control buttons
• Plug-and-play self-identifying and calibrating input probes and accessories
• NATO approved: OX 7104-C — 6625 14 549 3559

Applications:

• On-site contractor maintenance - industrial or electronic
• “Internal” plant maintenance
• Installations and start-up
• Industrial process
• Quality control
• Research and laboratory — engineers or technicians
• Field service

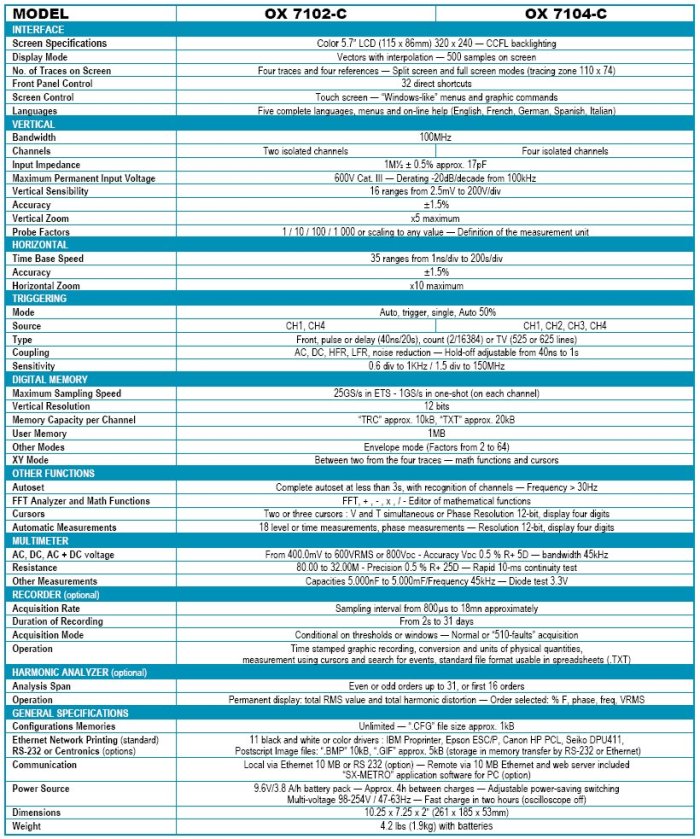

Specifications:

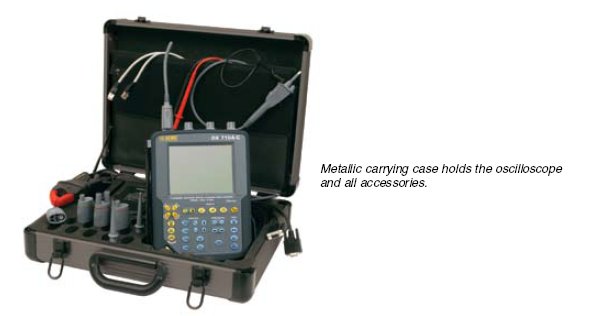

OX 7104-C Kit Includes: Oscilloscope; two PROBIX PR, 1/10 Probe, 250MHz, 600V Cat. III; two PROBIX BNC adapters; one PROBIX 4mm banana plug adapter; one US power adapter (115V, 60Hz); one battery pack, NiMH 19.6V, 3.8Ah; one set-of-two color-coded leads, 1.5m (red/black) with needle probe tips; one crossed Ethernet cable; one straight Ethernet cable; SX-METRO data processing and analysis software; one RS-232/9-pin D-SUB cable; one set-of-two grip probes (red/black); set of two stylus; aluminum carrying case, three-year product warranty and registration card and user manual on CD-ROM

OX 7104-C Power Kit Includes:  AEMC® OX 7104-C Oscilloscope (all above), plus the OX Power Kit  which includes two PROBIX PRHX1, 1/10 Probe, 250MHz, 600V Cat. III; two PROBIX 4mm banana plug adapters; three PROBIX current probes, 20mA to 80A, 100kHz; one PROBIX PRHX7, K thermocouple adapter; three set-of-two color-coded 1.5m leads and clips (red/black 4mm straight, 4mm right angle); small classic tool bag
