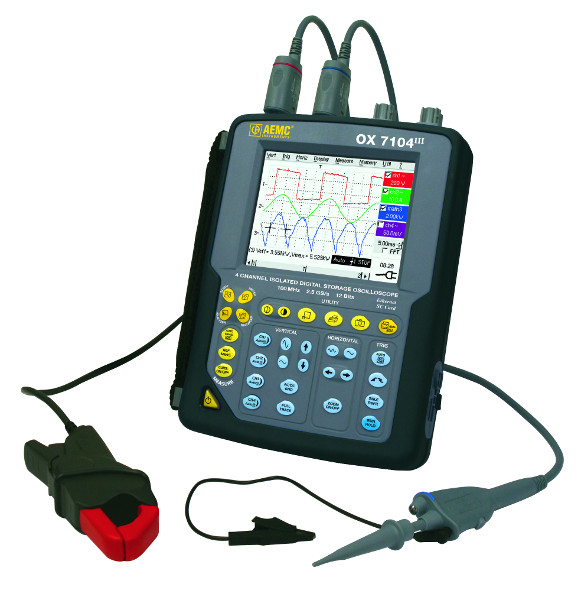

AEMC OX7104 Oscilloscope

AEMC OX7104 Oscilloscope

The Model OX7104 Oscilloscope is a rugged, self-contained, hand-held, four -channel oscilloscope with 100MHz bandwidth. Ideal for both laboratory and field use, the Model OX7104 utilizes the patented system of “plug-and-play” accessories, individual isolation of each of the measurement channels and a range of remote management capabilities. The Ethernet link lets you remotely control the oscilloscope without loading any software to your PC.

Features

• NEW – Improved Web Server (FTP server/client) with cursors and automatic measurements
• NEW – Ampflex^® and MiniFlex^® sensors, powered by the instrument (200kHz and 3MHz @ -3db bandwidth)
• NEW – Power measurement option included for your power measurements
• 4 isolated measurement channels (600V CAT III) with up to 8 traces on screen
• 5 complementary tools in a single instrument: Oscilloscope, FFT Analyzer, Multimeter/Wattmeter, Harmonic Analyzer on voltage/current/power and Recorder
• Sampling rate 2.5GS/s in one-shot mode and 100GS/s in ETS mode (repetitive signals)
• 2 or 4 independent TRMS digital multimeters (8000 counts, 100kHz)
• LCD touch screen and Windows-like menus on screen
• Probix “plug & play” input terminals and smart sensors include auto recognition and calibration
• Standard “real-time” FFT analysis and calculation functions on channels
• Multi-interface communication connectors: Serial USB, and Ethernet
• Memory depth of up to 100,000 points per channel (Oscilloscope and Recorder modes)
• Triggering on measurement thresholds in Oscilloscope and Multimeter modes
• Adapter for measuring up to 700VAC RMS 1000VDC in meter mode

Applications

• On-site contractor maintenance - industrial or electronic
• “Internal” plant maintenance
• Installations and start-up
• Industrial process
• Quality control
• Research and laboratory - engineers or technicians
• Field service

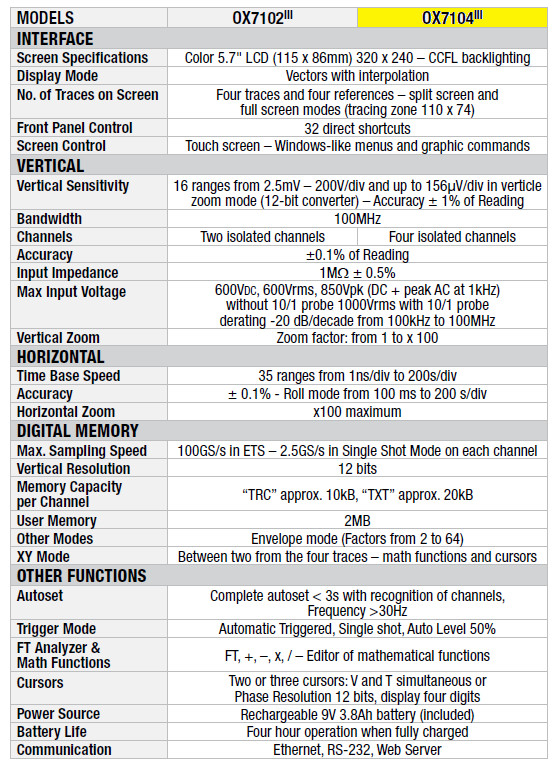

 Technical Specifications
