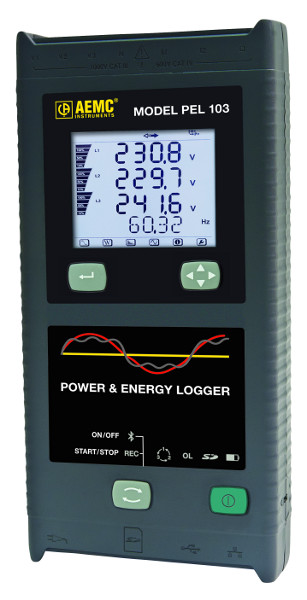

AEMC PEL 103 Power & Energy Logger (Includes LCD)

AEMC PEL 103 Power & Energy Logger (Includes LCD)


     The PEL 100 series is a low cost, simple to use, one-, two- (split-phase) and three-phase (Y, Δ) power/energy data logger. It is available in two models, a no display Model PEL102 or with a back-lit digital display, Model PEL103. This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential energy audits. All vital energy data is easily measured, recorded, analyzed and reports are generated with confidence and minimal configuration time and effort. The PEL 100 series has many up-to-date features demanded by the present market conditions.

     The design is laid out in such a way that it can be installed in a load center panel, including the current sensors, and still allow the door to close on most panels. The PEL 102 and 103 offer all the essential functions for data logging Power/Energy from most of the electrical power networks in use today. The PEL series energy loggers can measure three voltage and three current inputs and records these inputs, as well as Watts, VARS, VA and energy (kWh, kvarh and kVA). Power factor, displacement power factor, crest factor, frequency, neutral current and THD are calculated and recorded as well. Individual harmonic information as a % of fundamental out to the 50th harmonic is also recorded at the operator’s choice. All variables are recorded and stored on a one second basis and on user selectable demand intervals from one to sixty minutes. Energy costs can be calculated and displayed quickly and easily by simply programming in the unit cost for a kilowatt hour. Data is stored on a removable SD card. Data can be retrieved by USB, Bluetooth and/or Ethernet (local or internet) connection, as well as transporting the SD card back to the download site.

Features

• Simple to use, single-, dual(split-phase) and three-phase (Y, Δ) power & energy loggers
• Provides all the necessary functions for Power/Energy data logging for most of the 50Hz, 60Hz, 400Hz and DC distribution systems worldwide offering numerous distribution set-ups
• Current measurements from 100mA up to 10,000A with MA193 flexible current sensors
• Power measurements: VA, W and var
• Energy measurements VAh, Wh (source/load indication) and varh (including quadrant indication)
• Record cost of energy usage
• Power Factor (PF), Cos (ϕ), Tan (Φ) and DPF
• Crest Factor
• Total Harmonic Distortion (THD) for voltages and currents
• Harmonics from the fundamental signal up to the 50th order for 50/60Hz voltages and currents and 7th order for 400Hz
• Frequency measurements
• RMS and DC measurements @ 128 samples/cycle – each phase simultaneously

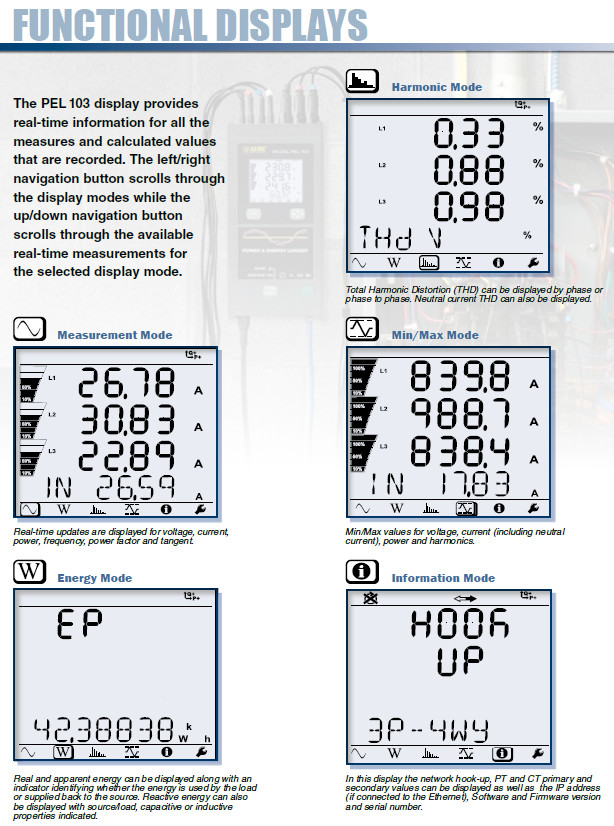

• Bright blue three line LCD on the Model PEL 103 (3 phases shown simultaneously)
• Storage of measured and calculated values on a SD-Card or SDHC-Card
• Automatic recognition of the connected current sensors/probes
• Configuration of current and voltage ratios to external PT and CT ratios
• 17 types of hook-ups for supported electrical distribution systems
• USB, LAN, and Bluetooth communication
• DataView® software for data download, viewing of measurements, real-time communication with a PC and report generation with pre-defined or custom templates

Applications

• Verification of power distribution circuits
• Measurement and recording of power system quality (kW, VA, VAR)
• Energy metering (kVAh, VARh, kWh)
• In-plant troubleshooting of power distribution panels and individual machinery
• Monitor phase unbalances
• Determine harmonic problems originating from source or load
• Remote monitoring
• Monitor sub-metering
• Baseline studies for system upgrades in high-rise and office buildings
• Determine cost of energy usage

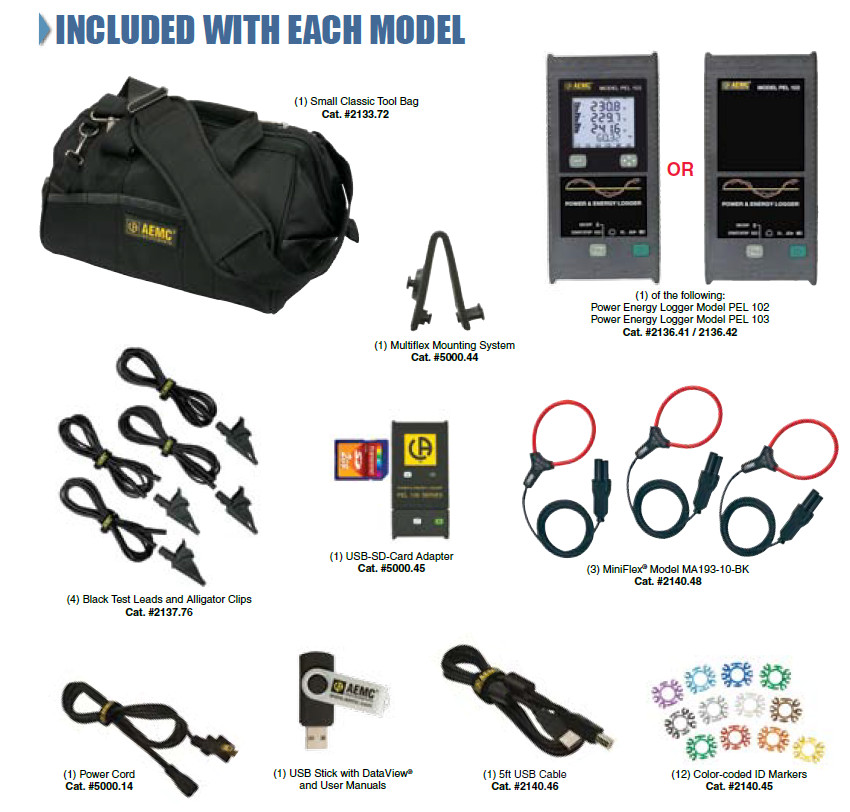

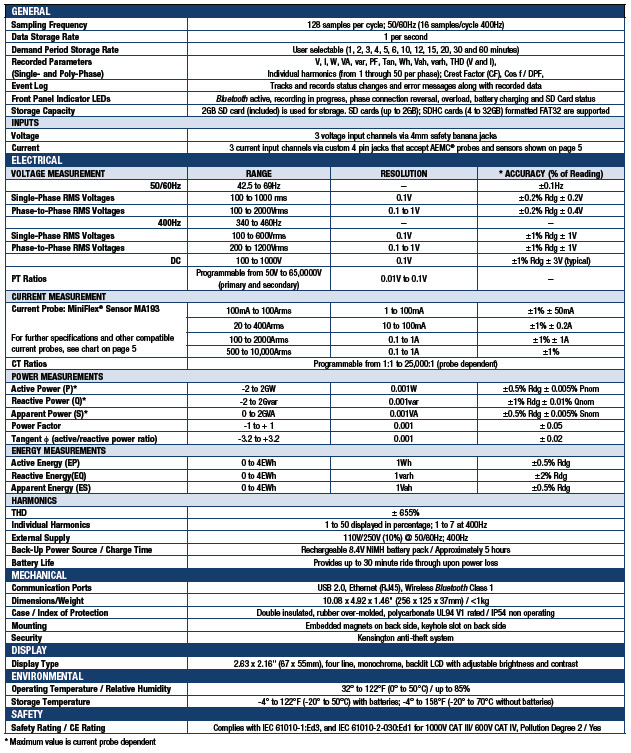

Technical Specifications

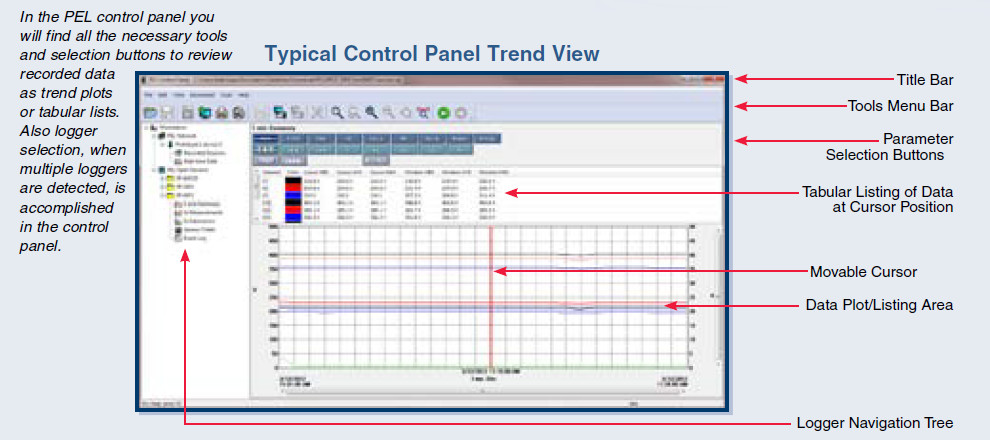

• Display real-time data on a PC
• Configure all PEL 100 Series functions and parameters from your PC
• Poll multiple energy loggers from your PC
• Customize views, templates and reports to meet specific needs
• Export data to spreadsheets
• Zoom in and out and pan through sections of the graph to analyze the data
• Display trend graphs, harmonic spectrum's, text summaries and event logs
• Print reports using predefined or user designed custom templates
• Selectively review values, phases or total network recordings
• Keep track of accumulated energy and cost over time
• Create user-specific cover sheets for reports that identify specific data that includes operator, tests site and narrative associated with the data

AEMC PEL 103 Data Sheet
