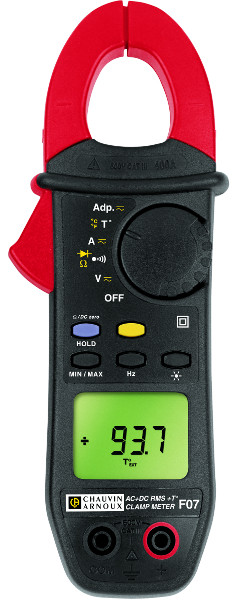

AEMC F07 Clamp-On Meter
|
Item Number: 2129.54
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2129.54
|
|
AEMC F07 Clamp-On Meter The Model F07 is a high performance clamp-on meter built into a rugged compact sized case, with exceptional ergonomic design and extraordinary measurement possibilities. Integrating a fast microprocessor sampling at a high rate, the Model F07 is completely automatic and performs TRMS measurements on the most distorted waveforms.
The Model F07 measures TRMS Voltage and Current and can incorporate the DC component of the signal for the Truest RMS. It has a V-Live™ function to warn of the use of live circuits or elevated voltages.Temperature measurements up to 1832°F (1000°C) can be taken via standard K thermocouple. The Model F07 can measure in-rush currents from 1 cycle up to 10 cycles and frequency. Other features include: auto-ranging, 4000-count display and Auto-Off.
Features
- Hand-held size, ultra practical and ergonomic design
- TRMS measurement through fast sampling - accurate on non-linear waveforms
- 4kHz Bandwidth
- 3.5 Crest Factor at 600Arms and 900Vrms
- Peak function captures 500µs signals
- Measure Inrush Current on 0.5, 1, 2.5, 5 and 10 cycles (15 to 70Hz)
- Min/Max automatic capture of extreme values at 100ms samples
- Continuity at programmable buzzer threshold from 1 to 40Ω
- Selectable V-Live™ function (buzzer) warns of live circuit
- Temperature measurements up to 1832°F (1000°C) via standard K thermocouple
- Automatic DC current zeroing
- Back-lit LCD
- Battery life displayed directly in hours at the push of a button
- EN 61010-1, EN 61010-2-032, 600V Cat. III
- Includes soft carrying case and test leads
.jpg)

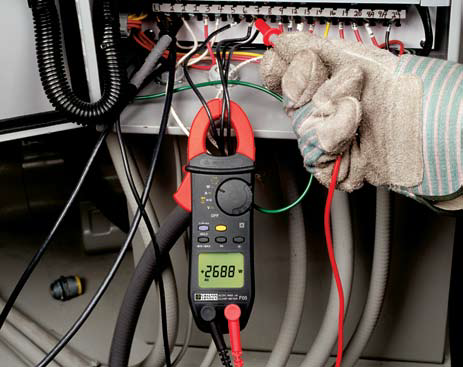

Model F07 monitoring volts, amps and watts on a control panel.
Applications
- Electrical maintenance
- Electrical power distribution
- Safety lighting system maintenance
- Automotive test troubleshooting
- Industrial maintenance
- HVAC

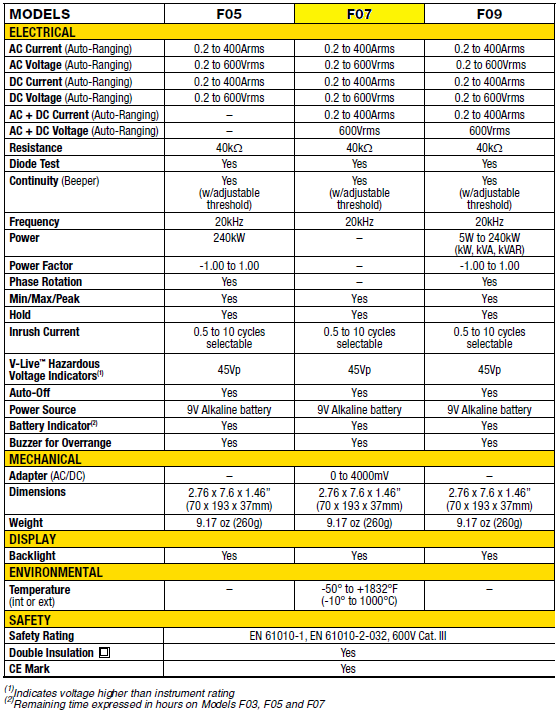

Technical Specifications
.jpg)

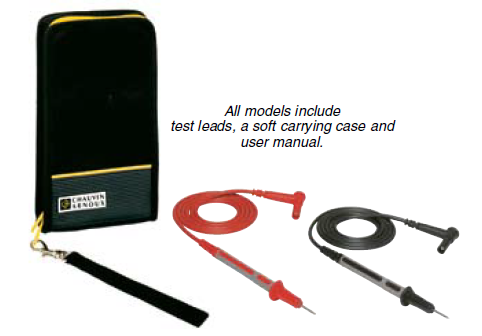

Accessories
.jpg)
|
